ASTM Hot Rolled 45mn
ASTM Hot Rolled 45mn
ASTM Hot Rolled 45mn

ASTM Hot Rolled 45mn

Mechanical properties: Tensile strength σb (MPa):≥620(63) Yield strength σs (MPa):≥375(38) Elongation δ5 (%):≥15 Section shrinkage ratio ψ (%):≥40 Impact power Akv (J):≥39 Impact toughness value αkv (J/cm2):≥49(5) Hardness: no heat treatment ≤241HB; Annealed steel ≤217HB Heat treatment process :850℃ normalizing, 840℃ quenching, 600℃ tempering.

Send Inquiry

Product Introduction

ASTM Hot Rolled 45mn is a type of steel alloy that is composed of 0.42-0.50% carbon, 0.17-0.37% silicon, 0.50-0.80% manganese, 0.035% maximum phosphorus, and 0.035% maximum sulfur. It is commonly used in the manufacturing of various machinery and equipment components such as gears, shafts, and axles due to its high tensile strength and good wear resistance. This steel grade is produced through hot rolling process, which involves heating the steel to a high temperature and then rolling it to its final shape and dimensions.
Chemical composition: 0.42-0.50% carbon, 0.17-0.37% silicon, 0.50-0.80% manganese, 0.035% maximum phosphorus, 0.035% maximum sulfur.

Steel type: Alloy steel.
Production process: Hot rolling.
Typical uses: Machinery and equipment components such as gears, shafts, and axles.
Tensile strength: High.
Wear resistance: Good.

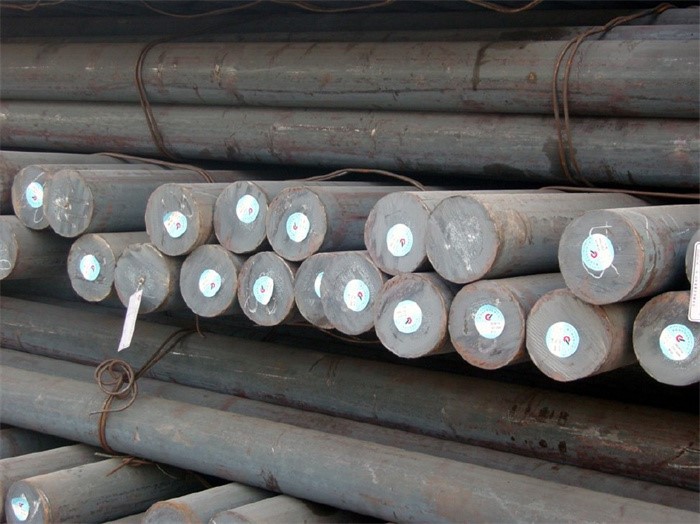

Round bar Prime Quality 45mn

45Mn mechanical property

strength of extension σ_b Mpa	Elongation or elongation after breaking δ %
≥620	≥15

① The steel plate delivered in the heat treatment state, when its elongation is increased by more than 2% (absolute value) than specified in the table, the tensile strength ratio is allowed to be reduced by 40MPa.

When the thickness of the steel plate and steel strip is greater than 20mm, the elongation after breaking is allowed to be reduced by 0.25% (absolute value) for every 1mm increase in thickness, the total reduction value of the thickness is not greater than 32mm shall not be greater than 2% (absolute value), and the total reduction value of the thickness is greater than 32mm shall not be greater than 3% (absolute value).

③ By agreement between the supply and demand parties, steel with a thickness of not less than 6mm can be used for 20°C or -20°C low-temperature impact test, and the test temperature and impact absorption energy of other grades are agreed by the two parties.

④ Heat treatment refers to normalizing, annealing or high temperature tempering.

Approximate comparison table high-quality carbon structural steel

China		Japan	America		ISO	French	Russia	Sweden	England
GB	ISC	JIS	ASTM/AISI	UNS	ISO	NF EN/NF	GOST	SS	BS EN/BS
45Mn	U21452	(SWRH47B)	1046	G10460	SL SM	45M5	45г	1672	080A47
