Galvanized Steel
Our company covers an area of 66.700 square meters, with an annual output of nearly 100,000 tons. We are a professional and modern manufacturer specializing in producing various kinds of products related to stainless steel. Professional sales of various specifications of Stainless Steel Sheet, Wear Resistant Steel Plate, High Strength Steel Plate, Stainless Steel Pipe, Tool Steel, Saw Blade Steel, Band saw blade steel strip, Chain Steel, Cold Drawn Steel Bar, complete specifications, quality and quantity.
Why choose us
Production Workshop
Our production workshop consists of several specialized areas, each responsible for a specific type of steel production. We have advanced equipment and complete production lines.
Quality Inspection Area
All steel produced needs to undergo strict quality inspection to ensure that it meets relevant standards and customer requirements. This area is usually equipped with various testing equipment and laboratories.
Our Service
- Provide product consultation to help customers choose the right stainless steel material.
- Provide customization service, customize stainless steel material specifications and sizes according to customer needs.
- Provide sample service to facilitate customers to understand product quality and material properties.
Galvanized Steel Advantages
Since its sacrificial zinc layer protects from many different types of environmental conditions, galvanized steel offers many unique benefits, these include
Rust Resistance: Iron in steel is incredibly prone to rust, but zinc acts as a protective buffer between moisture, oxygen, and steel.
Easy Inspection: It's fairly simple to tell how strong a galvanized coating is, just by looking at it. Quick stress tests that can tell you how thick the zinc is.
Sacrificial Anode: This ensures that any damaged steel is protected by the surrounding zinc coating. It doesn't matter if the steel section is completely exposed; the zinc will still corrode first.
Longer Life: With galvanization, a piece of industrial steel is expected to last more than 50 years in average environments and can last over 20 years with severe water exposure. No maintenance required.
|
Product Name |
Galvanized Steel Sheet/Plate |
|
Type |
Coil/Sheet/Plate/Strip |
|
Thickness |
Hot Rolled Thickness:0.12 ~ 3.00 mmCold Rolled Thickness:1.20 ~ 4.60 mm |
|
Surface |
Mild steel plain finish, hot dip galvanized, color coated, ect. |
|
Internatioanal Standard |
ISO 9001-2008 / ISO 630 / JIS / ASTM2.0mm-6.0mm |
|
Standards |
ASTMA53/ASTM A573/ASTM A283/Gr.D/BS1387-1985/ GB/T3091- 2001,GB/T13793-92, ISO630/E235B/JIS G3101/JIS G3131/JIS G3106/ |
|
Materials |
SGCC/ CGCC/ DX51D+Z DX52D+Z DX53D+Z |
|
Type of Coating |
Cold Rolled/Hot Dipped Galvanized Steel(HDGI) |
|
Zinc Coating |
30-275g/m2 |
|
Surface Treatment |
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
|
Surface Structure |
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
|
Width |
600mm-1500mm, according to customer's requirement |
|
ID |
508mm/610mm |
|
Coil Weight |
3-20 metric ton per coil |
|
Package |
clients' requirement and Standard export sea-worthy packing |
|
Another Name |
Hot rolled mild steel I beam , I beam , H beam ,steel beam ,beam |
|
MOQ |
1tons.We also can accept sample order. |
|
Shipment time |
Within 7-15 workdays after receiving deposit or L/C |
Methods of Galvanizing Steel
There are four ways in which steel can be galvanized, each affecting the type of layer formed and the final application. The four methods are described below
Galvannealing is the combination of hot-dip galvanizing and annealing processes to produce a specialized coating on steel sheets. The finished product is a zinc-iron alloy product, with a dull matte surface finish that is ideally suited for paint adhesion. This process works by hot-dipping the base metal, and then heating it in an annealing oven at a temperature of roughly 565 ºC to induce alloying between the steel and molten zinc coating. Examples of galvannealing include: welding operations, marine applications, and any high-tensile stress applications.
Hot-dip galvanizing is a form of zinc coating applied to steel sheets (or manufactured steel items). This occurs by passing the steel objects through a bath of molten zinc and then cooling them. The zinc bonds to the iron within the steel. Hot-dip galvanizing works by forming a protective layer on either side of the metal to protect the finished product from corrosion. Galvanized steel does not require any secondary or additional coating or painting. Examples of hot-dip galvanizing include: industrial flooring, motorway guardrails, brackets, and fixings.
Electrogalvanization is a process in which steel is galvanized with a zinc coating using electroplating. Steel is submerged in a zinc salt solution and an electrical current is applied to create electrogalvanized steel. The current creates a reaction between the zinc salt and the surface of the steel, leaving behind a thin layer of zinc. This zinc laver is much thinner than the hot dipping method. Electrogalvanized steel is used in: acoustic ceiling tiles, door frames, and switchboards.
The pre-galvanizing process, also referred to as mill galvanization, is performed at the very initial stages of production on metals which are likely to have a limited number of processes after pre-galvanization. This is because carrying out any process on galvanized steel will result in the exposure of bare metal to the atmosphere increasing the risk of oxidation. Components that are pre-galvanized are usually steel plates and bars. This method enables galvanizing to be done quickly and efficiently on a larger scale than is possible with traditional hot-dipping. This process works by rolling the sheet metal (or other shaped steel stock) in a cleaning agent to prepare the material to be passed through the molten zinc, which is then rapidly recoiled. Pre-galvanizing is primarily used for materials that already have a specific shape before being cut.
Galvanized Steel Product Options
Common galvanized steel products include galvanized steel tube and galvanized steel sheet and plate.

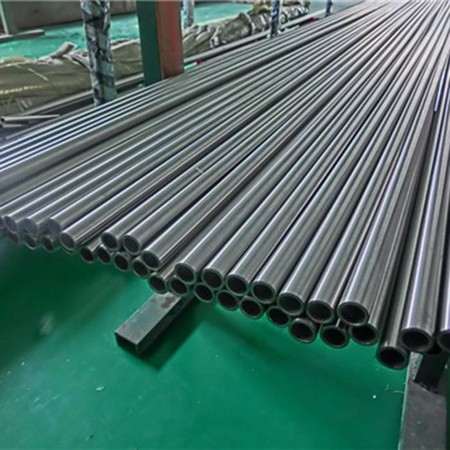

Galvanized Steel Tube
Common uses for galvanized steel tubing includes:
·General construction
·Manufacturing
·Outdoor architectural projects
·Machine parts
·Equipment

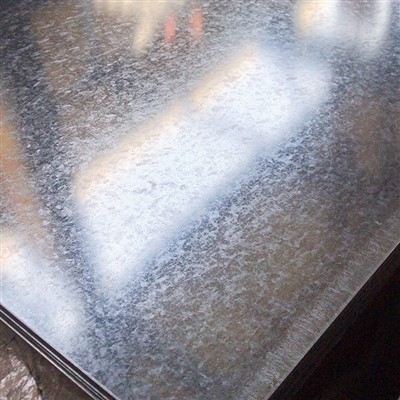

Galvanized Sheet & Plate
Galvanized steel sheet and plate is easily fabricated and weldable. Common uses for galvanized steel sheet and plate include:
·Building panels

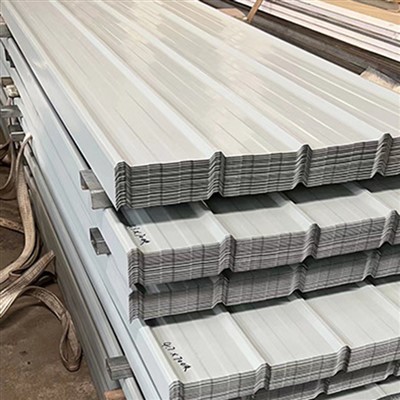

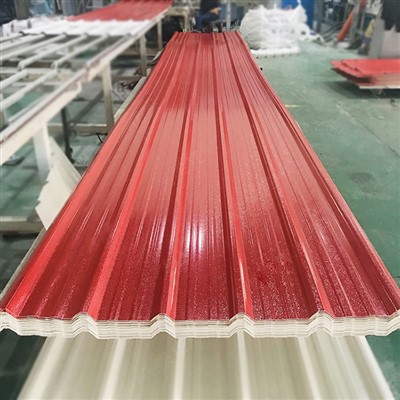

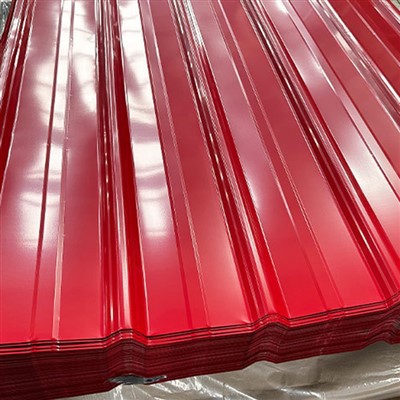

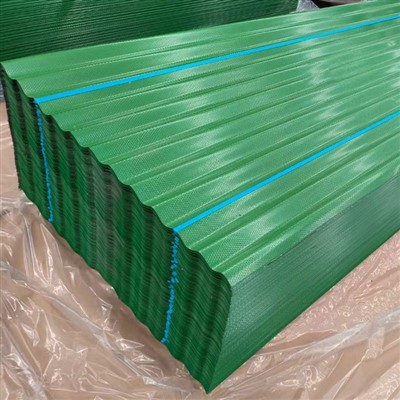

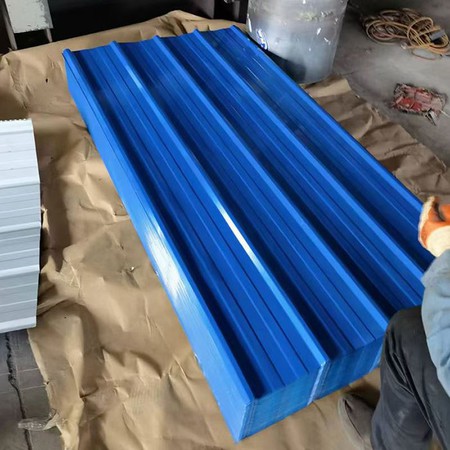

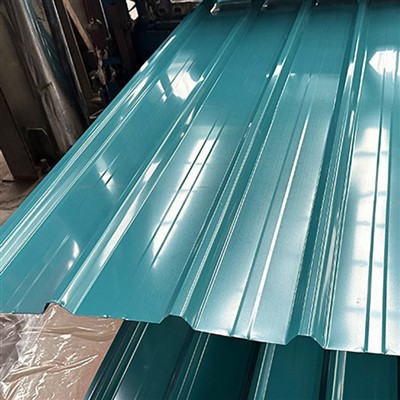

·Roofing
·Lighting fixtures
Attentions in Transportation and Storage
1
Galvanized Steel Coils should be stored in neat and tidy environment to avoid possible corrosioncaused by all kinds of corrasive medium.
2
The ground for storage should be flat, without hard object, and with sufficient loading-bearing capacity.
3
Storage environment should be dry and ventilated. Avoiding storing outdoors or with dew or with wide temp difference.
4
Coil could not be dragged lest the burr caused by slicing will scratch the coil surface underneath.Coil should be handled with care, without hitting any hard object
