50crv4 Chemical Composition

50crv4 chemical composition

50CrV4 is a spring steel that meets the German standard. In this article, I will give you a comprehensive introduction to the characteristics of 50CrV4 spring steel, its application areas and its importance in industry.

50CrV4 spring steel is a low alloy high carbon steel composed of the following main elements:

1. Carbon (C) : The carbon content of the steel is 0.47-0.55%. Carbon provides the strength and hardness of steel, making it suitable for the manufacture of high-strength and wear-resistant parts.

2. Chromium (Cr) : Chromium content is 0.9-1.2%. Chromium provides the corrosion and wear resistance of the steel, allowing 50CrV4 spring steel to maintain stability in harsh environments.

3. Vanadium (V) : Vanadium content is 0.1-0.25%. Vanadium contributes to the strength, toughness and fatigue resistance of steel, making it ideal for the manufacture of springs with high loads and high cycle times.

4. Silicon (Si) and manganese (Mn) : the content of silicon and manganese is 0.10-0.40% and 0.70-1.10%, respectively. These elements help to improve the hardening ability and plasticity of spring steel.

50CrV4 spring steel has the following main features:

1. High strength: 50CrV4 spring steel has excellent strength characteristics, making it able to withstand high load and high stress conditions.

2. Good fatigue resistance: the addition of vanadium makes the steel have excellent fatigue resistance, which is suitable for working conditions under frequent cyclic stress.

3. Good hardening ability: 50CrV4 spring steel can be enhanced by heat treatment or cold deformation to enhance its hardness and toughness to adapt to different application requirements.

4. Good plasticity: The steel has good plasticity and can be used to manufacture complex shaped parts by various processing methods (such as cold bending, cutting, forging, etc.).

50CrV4 spring steel is widely used in a variety of industrial applications, such as the automotive industry (braking systems, suspension systems), the mechanical industry (springs, gears, shafts, etc.), the aerospace industry (springs, connectors, etc.) and the military industry (springs, gun parts, etc.). In these fields, 50CrV4 spring steel's high strength, good fatigue resistance and excellent plasticity make it the material of choice.

In summary, 50CrV4 spring steel is a low alloy high carbon steel with high strength, excellent fatigue resistance and good plasticity. In line with German standards, it is widely used in the automotive industry, machinery industry, aerospace industry and military industry. The characteristics of this steel make it suitable for the manufacture of parts with high loads and high cycles, which is essential to improve the performance and life of the product.

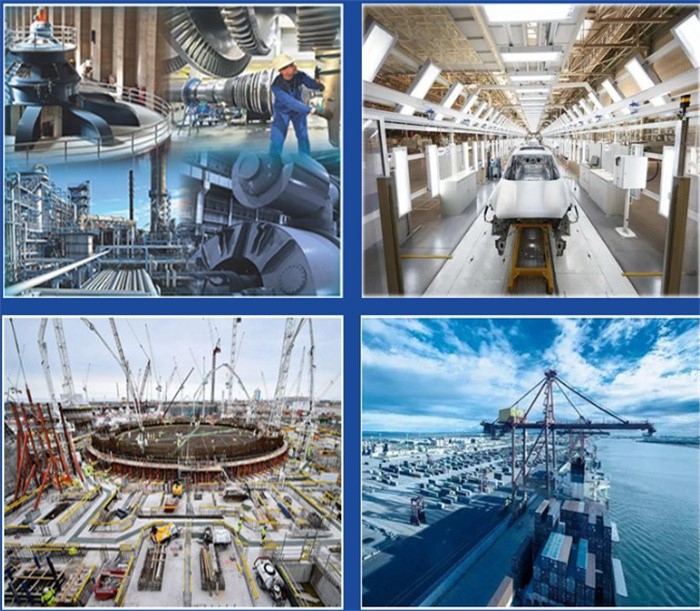

Application Area

1. Automotive manufacturing: din 50crv4 is widely used in automotive manufacturing in automotive suspension systems, elastic components, transmission parts and other key components, because it has good elasticity and fatigue strength.

2. Mechanical manufacturing: 50CrV4 steel is used in the field of mechanical manufacturing for the manufacture of elastic components, springs, compressor pistons and other parts, as well as for important equipment parts such as machine tool processing, because of its high strength and excellent corrosion resistance.

3. Knife industry: The high hardness and wear resistance of 50crv4 spring steel make it one of the ideal materials for knife industry. Blades, saw blades, drills and other tools can be made using 50CrV4 steel.

4. Aerospace: 1.8159 51crv4 is also widely used in the aerospace field. It is used in the manufacture of engine parts, aviation suspension systems, aircraft internal parts and other fields.

5. Construction engineering: 51crv4 1.8159 is also used in structural support, bridge and road construction in the field of construction engineering. Its high strength and corrosion resistance make it excellent in construction projects.
