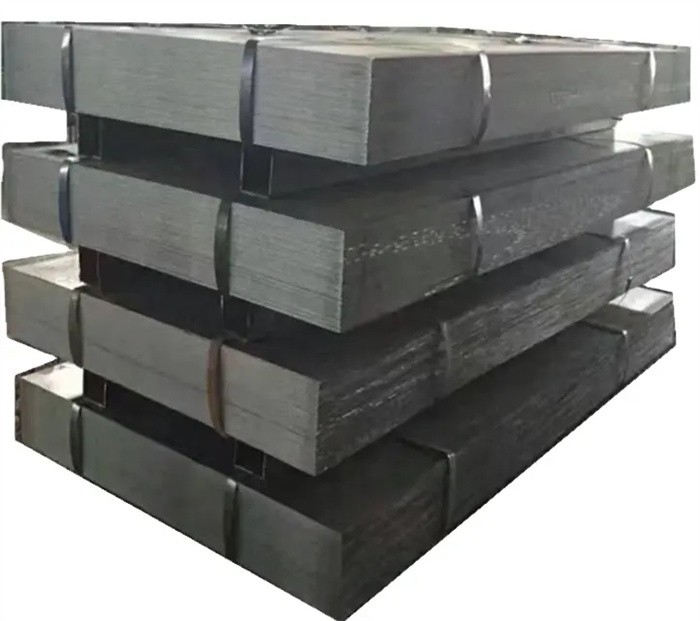

S50C Steel Plates
S50C steel plates are a versatile and durable material used in a wide range of industries. They are known for their exceptional strength and toughness, making them ideal for use in high-stress environments. S50C steel plates are commonly used in the manufacturing of machinery, tools, and equipment, as well as in the construction and automotive industries.
What makes S50C steel plates stand out is their excellent machinability and weldability. This means that they can be easily formed, shaped, and welded to create complex parts and structures. Additionally, S50C steel plates are resistant to wear, corrosion, and impact, ensuring their longevity and reliability even in harsh conditions.
At the same time, S50C steel plates are affordable and readily available, making them an excellent choice for companies with budget constraints. They are also highly customizable, with a range of thicknesses and sizes to choose from. This makes them ideal for a wide range of applications, from building bridges and skyscrapers to creating precision machinery and tools.
Product Specification
- Chemical composition: C (carbon) 0.47-0.53%, Si (Silicon) 0.15-0.35%, Mn (manganese) 0.60-0.90%, P (phosphorus) ≤ 0.030%, S (sulfur) ≤ 0.035%.
- Physical properties: Density 7.85g/cm³, melting point 1432℃.
- Use: cutting tools, molds, bearings, chains, guides, gears, tie rods and other parts with high strength, high hardness and high toughness requirements.
- Heat treatment performance: After proper heat treatment, S50C high carbon steel can obtain good strength and toughness, for example, after quenching and tempering treatment, can improve the hardness and wear resistance.
- Mechanical properties: The mechanical properties of S50C high carbon steel are of great significance for production and use. It has excellent tensile properties, elastic force and impact force.
- Machining performance: excellent machinability and can be processed to obtain the required shape and size.
S50C STEEL CHEMICAL COMPOSITION
| Grade | C | Si | Mn | P | S |
| S45C | 0.42-0.48 | 0.15-0.35 | 0.6-0.9 | ≤ 0.03 | ≤ 0.035 |
| S50C | 0.47-0.53 | 0.15-0.35 | 0.6-0.9 | ≤ 0.03 | ≤ 0.035 |
S45C | S50C STEEL RELATED STANDARD & EQUIVALENT GRADE
| S45C | S50C | |
| CHINA | 45# | 50# |
| USA | 1045 | 1050 |
| Europe | C45 | C50 |
| UK | EN8/080M40 | EN9/070M55 |
S45C | S50C STEEL PHYSICAL PROPERTY
| S45C | S50C | |
| Density, g/cm3 | 7.86 | 7.86 |
| Ac1 | 724℃ | 725℃ |
| Ac3 | 780℃ | 760℃ |
| Elastic Modulus,Mpa | 209000 | 207407 |
| Shear modulus,Mpa | 82300 | 81100 |
| Poisson's ratio | 0.269 | 0.29 |
| Linear expansion coefficient,10^-6/k | 11.7 | 12.06 |
S45C | S50C STEEL FORGING
| S45C | S50C | |
| Initial Forging Temperature | 1180℃-1210℃ | 1100℃ |
| Final Forging Temperature | 800℃ | 800℃ |
| Forging Ratio | ≥4:1 | ≥4:1 |
| Post-Forging Treatment | Slow cooling | Slow cooling |
