A312 Tp310

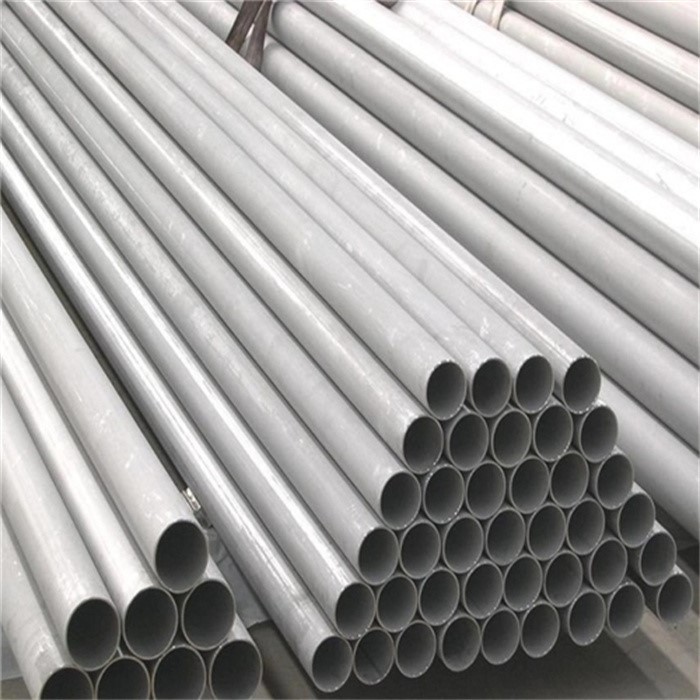

A312 TP310 is a type of stainless steel pipe commonly used in various industrial applications. It has excellent high-temperature resistance, good corrosion resistance, and outstanding mechanical properties, making it a popular choice for many industries.
The high-temperature resistance of A312 TP310 makes it ideal for use in applications such as furnace parts, heat exchangers, and exhaust systems, among others. It can withstand temperatures up to 2000°F without losing its mechanical properties, which makes it a reliable material in harsh environments.
Moreover, A312 TP310's corrosion resistance properties make it resistant to various chemicals, acids, and alkalis. This property makes it a preferred material in chemical processing, oil and gas, and food processing industries.
In addition to its physical attributes, A312 TP310 is easy to weld, fabricate, and form. It can be machined or cut to meet various design requirements. This property makes it an excellent material choice for design engineers who need to develop custom parts with complex geometries.
Material Specification of Stainless Steel 310 Seamless Pipe
| Specifications | ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358 |
| Dimensions | ASTM, ASME and API |
| 310 ss pipe Types | Seamless, ERW, Welded, 100% X Ray Welded |
| Size OD (MM) | 6.00 to 610.00 |
| Size in NB | 1/8″TO 30″NB |
| length in MM | 6000, 3000, 2000, 12000, Or as Required |
| Wall Thickness | 0.5mm to 30mm |
| Specialized in | Large Diameter Size |
| Surface Finish | Mirror, Pickled & Annealed, Polish, 2B, No.4 |
| Value Added Services | Polishing, Beveling, Cutting, Threading |
| Schedule | Schedule20, Schedule30, Schedule40, STD, Schedule80, XS, Schedule60, Schedule80, Schedule120, Schedule140, Schedule160, XXS |
| Form | Square Pipes/Tubes, Round Pipes/Tubes, Rectangular Pipe/Tubes, “U” Shape, Pan Cake Coils, Coiled Tubes, Hydraulic Tubes |
| Test Reports & Third party Inspection | Mill Test Certificates, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, EN 10204 3.1, Chemical Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports |
| Packaging | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or Custom packing |
SS 310 Pipe Size In Nb And Inch
| NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
|---|---|---|---|---|---|
| 1/8" | √ | √ | √ | √ | |
| 1/4" | √ | √ | √ | √ | |
| 3/8" | √ | √ | √ | √ | |
| 1/2" | √ | √ | √ | √ | √ |
| 3/4" | √ | √ | √ | √ | √ |
| 1" | √ | √ | √ | √ | √ |
| 1 1/4" | √ | √ | √ | √ | √ |
| 1 1/2" | √ | √ | √ | √ | √ |
| 2" | √ | √ | √ | √ | √ |
| 2 1/2" | √ | √ | √ | √ | √ |
| 3" | √ | √ | √ | √ | √ |
| 4" | √ | √ | √ | √ | √ |
| 5" | √ | √ | √ | √ | |
| 6" | √ | √ | √ | √ |
Stainless Steel 310 Tube Other Trade Name
| 310ss | 1.4845 |
| Grade 310 | ss310 |
| Alloy 310S | UNS S31000 |
| 310S | TYPE 310 |
| T.310 | 31008 |
| 310 Stainless | X8CrNi25 21 |
| UNS 310 | EN10095 |
| 310H | ASTM A276 |
| AISI 310S |
Chemical Equation of SS ERW 310S Pipes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| Stainless Steel 310 Seamless Pipe | min. | – | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.25 | 2.0 | 1.50 | 0.045 | 0.030 | 26.0 | 22.0 | – | ||
SS 310S Welded Pipes Mechanical Properties
| Grade | Tensile Strength (MPa) Minimum | Yield Strength 0.2% Proof (MPa) Minimum | Elongation (% in 50mm) Minimum | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) Maximum | Brinell (HB) Maximum | ||||
| SS 310 Pipe | 515 | 205 | 40 | 95 | 217 |
Equivalent Material of SCH 40 310 pipe
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310 Stainless Steel pipe | S31000/S31008 | – | – | 1.4841/1.4845 | – | – | SUS 310 – 310S |
