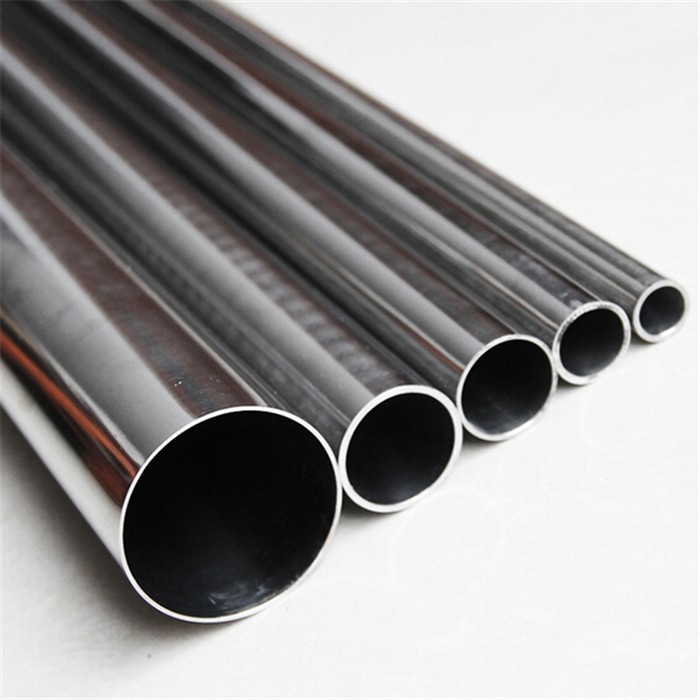

High Strength 304 Stainless Steel Tube
High Strength 304 Stainless Steel Tube
Product Advantage
HEALTH：The inner wall of the pipe is smooth,not easy to scale,and avoids the growth of bacteria.
FANTICORROSION：304/316L food grade stainless steel material,not easy to rust and corrode,noharmful substances are precipitated after long-term use.
SOLIDITY：Metal marerial,strong earthquake resistance and not easy to derorm,lowprobability of water leakage from burst pipes.
DURABLENESS：Surface polishing and anti- oxidation treatment,long service life and low maintenance cost.
| Stainless steel pipe | ||||||||
| Nominal Diameter | I Series | II Series | EN Series | Covering layer PE thickness | Insulation thickness | |||
| Outer Diameter | Wall Thickness | Outer Diameter | Wall Thickness | Outer Diameter | Wall Thickness | |||
| 10 | 12.7 | 0.6 | - | - | 15 | 0.8 | ≥0.8 | ≥2.2 |
| 15 | 16 | 0.8 | 16(15.9) | 0.8 | 18 | 1.0 | ≥0.8 | ≥2.2 |
| 20 | 20 | 1.0 | 22.2 | 1.0 | 22 | 1.2 | ≥0.8 | ≥3.0 |
| 25 | 25.4 | 1.0 | 28.6 | 1.0 | 28 | 1.2 | ≥0.8 | ≥3.0 |
| 32 | 32 | 1.2 | 34 | 1.2 | 35 | 1.5 | ≥1.0 | ≥3.0 |
| 40 | 40 | 1.2 | 42.7 | 1.2 | 42 | 1.5 | ≥1.0 | ≥3.0 |
| 50 | 50.8 | 1.2 | 48.6 | 1.2 | 54 | 1.5 | ≥1.0 | ≥3.5 |
| 60 | 63.5 | 1.5 | 60.3 | 1.5 | - | - | ≥1.0 | - |
| 65 | 76.1 | 2.0 | - | - | - | - | ≥1.2 | - |
| 80 | 88.9 | 2.0 | - | - | - | - | ≥1.2 | - |
| 100 | 101.6 | 2.0 | 108 | 2.0 | 108 | 2.0 | ≥1.2 | - |
| 125 | 133 | 2.5 | - | - | - | - | - | - |
| 150 | 159 | 2.5 | - | - | - | - | - | - |
| 200 | 219 | 3.0 | - | - | - | - | - | - |
| 250 | 273 | 4.0 | - | - | - | - | - | - |
| 300 | 325 | 4.0 | - | - | - | - | - | - |
Application
Surface
Packaging & Shipping
Shape
