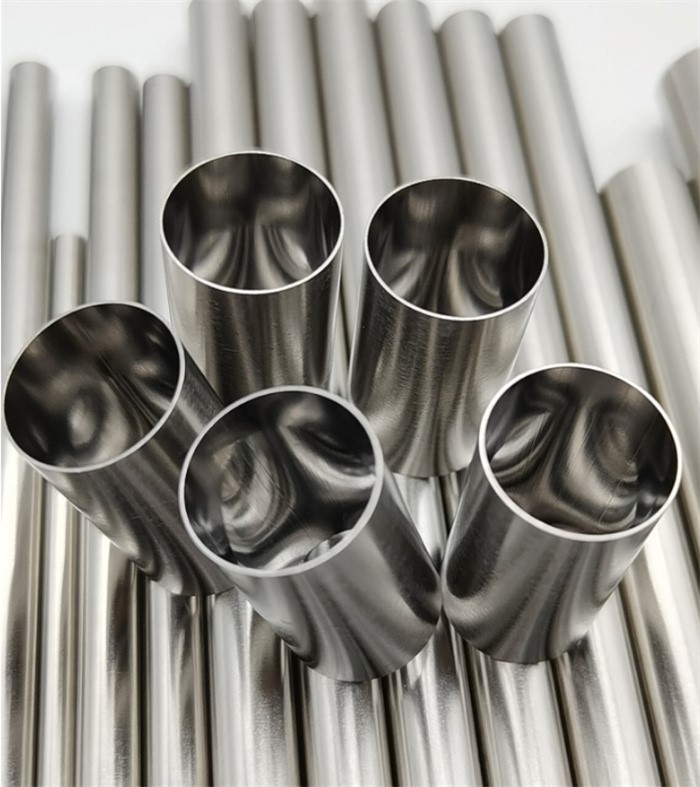

Stainless Steel 316 316L 316H 316Ti Pipes

Stainless Steel 316 316L 316H 316Ti Pipes
Stainless Steel 316 316L 316H 316Ti Pipes
Stainless Steel 316 316L 316H 316Ti Pipes
Stainless Steel 316 316L 316H 316Ti Pipes

Stainless Steel 316 316L 316H 316Ti Pipes

On the basis of 316L, many steel grades are also derived, such as 316Ti after adding a small amount of Ti, 316N after adding a small amount of N, and 317L is derived from increasing Ni and Mo content.

Send Inquiry

Product Introduction

Most of the existing 316L on the market are produced in accordance with the American standard. For cost considerations, steel mills generally put the Ni content of products as close to the lower limit as possible. The American standard stipulates that the Ni content of 316L is 10 ~ 14%, and the Japanese standard stipulates that the Ni content of 316L is 12 ~ 15%.

show details

Fine selection of raw materials: Fine selection of steel with safe quality as raw materials to ensure the stability of welded pipes.
Surface treatment: surface drawing process, there is no delamination, cracks inside and outside, no strain, no sand hole, no bump.
Performance strength: high strength, surface corrosion resistance, pure nitrogen protection welding, pure hydrogen annealing protection.

STAINLESS STEEL 316/316L/316H/316TI PIPE AND TUBE CHEMICAL COMPOSITION

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 316	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	11.00 – 14.00	67.845 min
SS 316L	0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.89 min
SS 316H	0.10 max	2.0 max	0.75 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.89 min
SS 316Ti	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.395 min

ASTM A312 STAINLESS STEEL 316/316L/316H/316TI PIPE AND TUBE MECHANICAL PROPERTIES

Grade	Density	Melting Point	Tensilee Strength	Yield Strength (0.2%Offset)	Elongation
SS 316/316H	8.0 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

EQUIVALENT GRADE OF STAINLESS STEEL 316/316L/316H/316TI PIPE AND TUBE

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST
SS 316	S31600	1.4401 / 1.4436	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3	SUS 316	316S31 / 316S33	–
SS 316L	S31603	1.4404 / 1.4435	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2
SS 316H	S31609	1.4401	–	–	–	–	–
SS 316Ti	S31635	1.4571	Z6CNDT17‐123	X6CrNiMoTi17-12-2	SUS 316Ti	320S31	08Ch17N13M2T
