ASTM A240 SS Sheet 316
Excellent corrosion resistance
High strength and durability
Versatility
Low maintenance
Aesthetic appeal
ASTM A240 SS Sheet 316 is a versatile material that is used in a wide range of applications due to its excellent resistance to corrosion, heat, and chemical attack.
1. Plate thickness: The plate thickness of this product can be between 0.3mm and 100mm, making it very suitable for various application needs.
2. Board width: The width range of the product is between 1000mm and 2000mm, which can provide users with greater design and manufacturing flexibility.
3. Board length: The length of the product can be customized according to the needs of users. The usual length is between 2000mm and 6000mm.
4. Surface treatment: ASTM A240 SS Sheet 316 can go through a variety of different surface treatment processes, including hot rolling, cold rolling, titanium coating, etc., to meet the different needs of customers.
5. Chemical composition: The main components of the product contain chromium, nickel, molybdenum, silicon, manganese, nitrogen, carbon and other elements, which can provide excellent corrosion resistance.
6. Quantity and packaging: The product can provide different quantities of customized products according to customer needs, and the use of professional packaging to ensure that the product is intact during transportation and storage.
Chemical Composition
| Chemical Element | % Present |
|---|---|
| Carbon (C) | 0.0 - 0.03 |
| Chromium (Cr) | 16.50 - 18.50 |
| Molybdenum (Mo) | 2.00 - 2.50 |
| Silicon (Si) | 0.0 - 1.00 |
| Phosphorous (P) | 0.0 - 0.05 |
| Sulphur (S) | 0.0 - 0.02 |
| Nickel (Ni) | 10.00 - 13.00 |
| Manganese (Mn) | 0.0 - 2.00 |
| Nitrogen (N) | 0.0 - 0.11 |
| Iron (Fe) | Balance |
Properties
| Physical Property | Value |
|---|---|
| Density | 8.0 g/cm³ |
| Melting Point | 1400 °C |
| Thermal Expansion | 15.9 x10^-6 /K |
| Modulus of Elasticity | 193 GPa |
| Thermal Conductivity | 16.3 W/m.K |
| Electrical Resistivity | 0.74 x10^-6 Ω .m |
Widely Used
Packing & Delivery

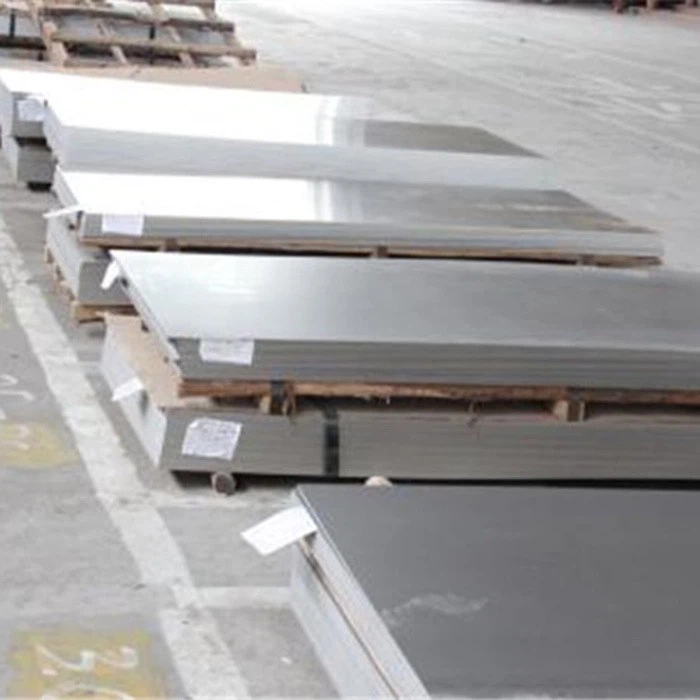

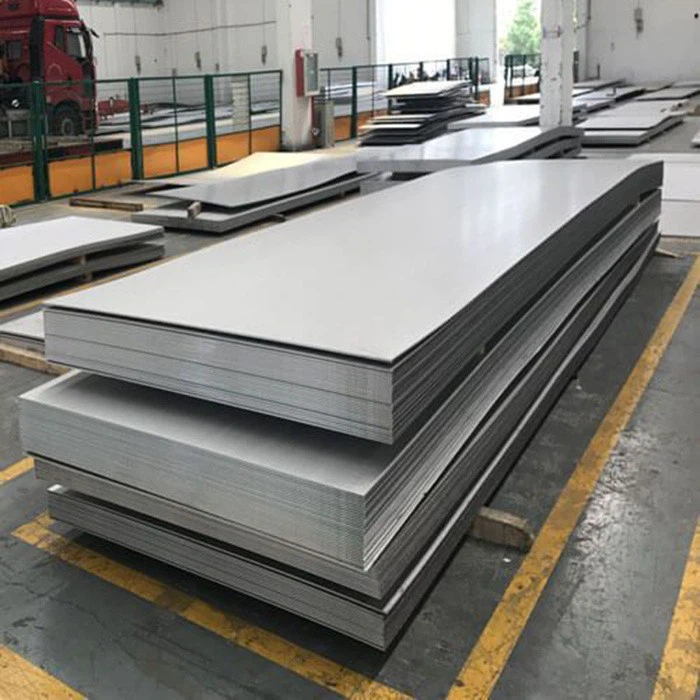

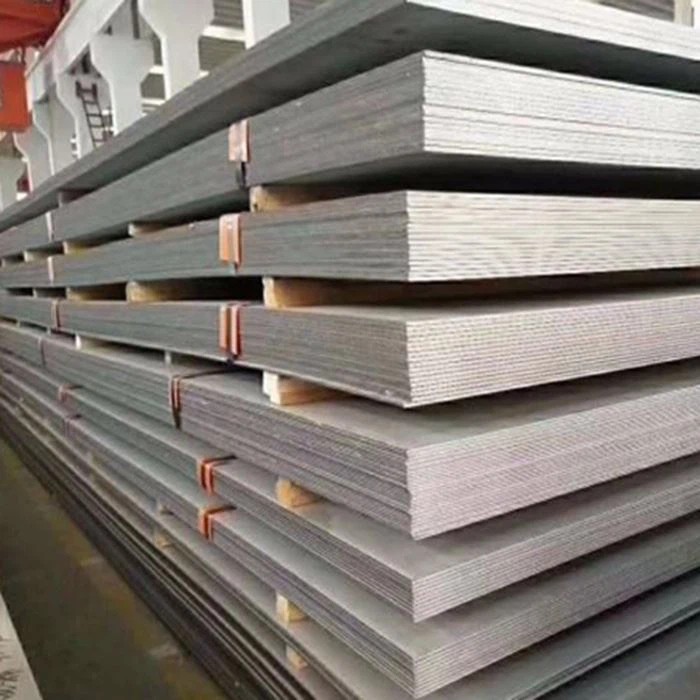

Product display
