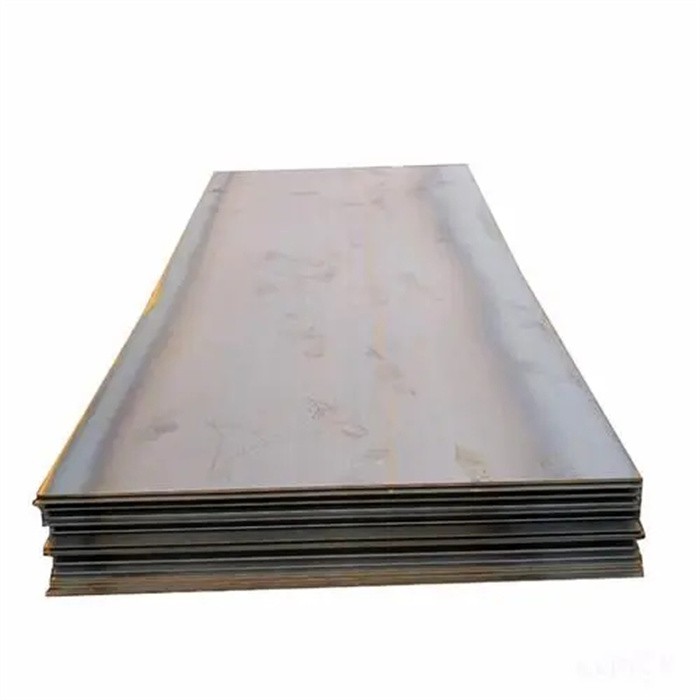

NM550 Wear Plate (HBW:≥530) High-strength Wear Resistant Steel Plate

The NM550 wear plate is made from high-quality steel and has been specially designed to withstand extreme wear and tear. It is an ideal choice for applications where traditional steel is not strong enough to withstand the harsh conditions.

This wear plate has excellent impact resistance, making it perfect for use in heavy machinery. It also offers exceptional resistance to abrasion, erosion, and other forms of wear and tear. With these features, the NM550 wear plate ensures a long service life for machinery and equipment, reducing the need for frequent maintenance and replacements.

In addition, the NM550 wear plate has good weldability, making it easy to use in various fabrication processes. It is available in a wide range of thicknesses and sizes to suit different applications.

Overall, the NM550 wear plate is an excellent choice for industries that require high-strength and wear-resistant steel plates. With its exceptional durability and resistance to wear and tear, this plate ensures a more efficient and cost-effective operation for businesses.

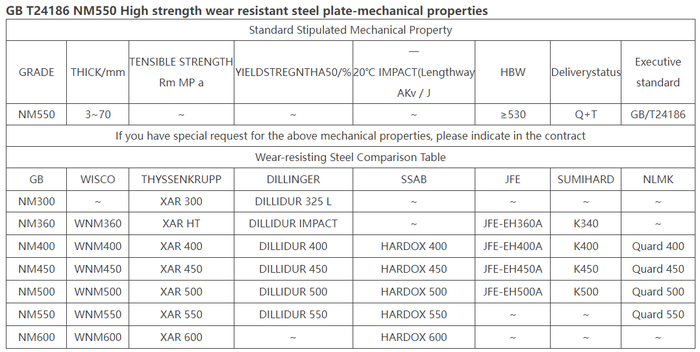

Product Parameters

GB T24186 NM550 High strength wear resistant steel plate-chemical composition

NM550 wear plate main purpose

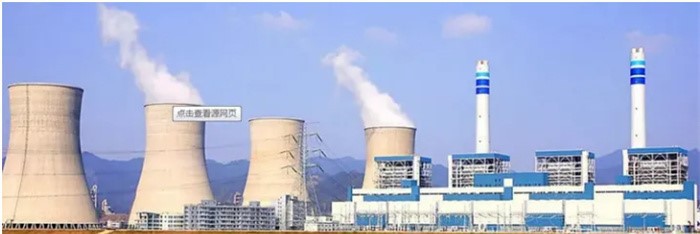

1. Thermal power plant: medium speed coal mill barrel liner plate, fan impeller nest shell, dust collector inlet flue, ash pipe, bucket turbine liner plate, separator connecting pipe, coal crusher liner plate, coal hopper and crusher liner plate, burner burner, coal hopper and funnel liner plate, air preheater support shingle, separator guide blade. The steel used in the above machinery can be used in NM400, NM450 and even higher NM500 and NM600 with high material requirements.

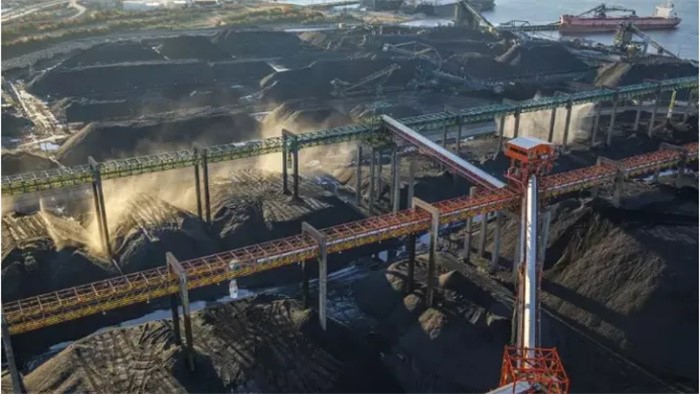

2.the coal field: the lining of the feeding trough and funnel, the liner of the hopper, the blade of the fan, the bottom plate of the pusher, the lining plate of the cyclone dust collector, the coke guide, the lining of the ball mill, the stabilizer of the drill, the screw feeder bell and its base, the lining of the kneading machine bucket, the ring feeder, the bottom plate of the dump truck. Because the plate is used in the coal field, the corrosion resistance and wear resistance of the steel plate are certain requirements, and the use environment of the coal field is relatively complex, which requires a better wear-resistant plate NM500 and NM600.

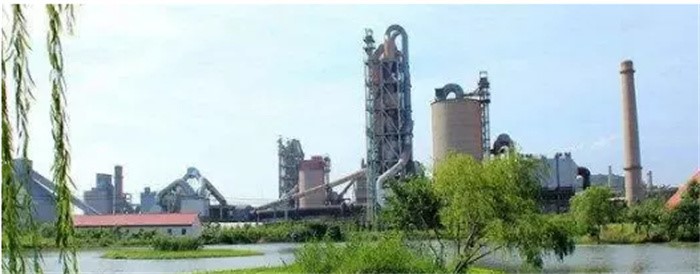

3. Cement factory: chute liner, end bushing, cyclone dust collector, powder separator blade and guide blade, fan blade and liner, recovery bucket liner, screw conveyor bottom plate, pipeline components, frit cooling disc liner, conveyor groove liner. These parts also require wear-resistant steel with better wear resistance and corrosion resistance, which requires the use of wear-resistant steel with 8-30mm thickness of NM450, NM500 and NM600.

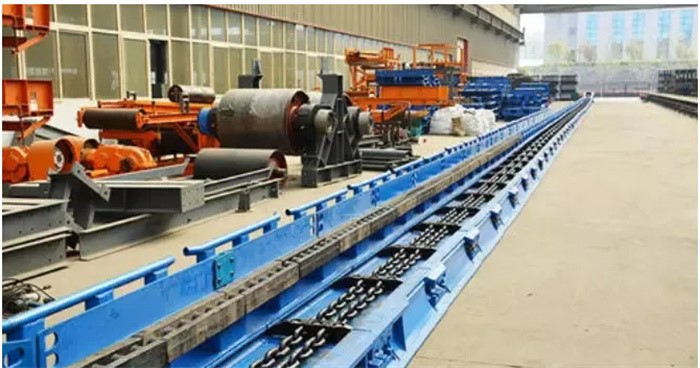

4.metallurgical machinery: iron ore sintering machine, conveyor elbow, iron ore sintering machine liner, scraper liner. Because such machinery requires not only high temperature resistance but also its extremely hard wear-resistant steel plate. Therefore, we recommend the use of HARDOX600HARDOXHiTuf series of wear-resistant steel plates for this type of machinery.
