A514 Gr.Q High Strength Weldable Steel Plate
A514 Gr.Q is a high strength weldable steel plate that is widely used in various industrial applications. This steel grade has excellent strength, toughness, and ductility, making it an ideal choice for heavy-duty applications such as construction, mining, and transportation.
One of the key advantages of A514 Gr.Q is its high yield strength, which allows it to withstand extreme loads and impacts without failure. This makes it a popular choice for structures that are subjected to heavy loads and vibrations, such as bridges, crane booms, and mining equipment.
In addition to its exceptional strength, A514 Gr.Q is also highly weldable, which makes it easy to fabricate and assemble. This steel grade can be welded using a variety of welding techniques, including gas metal arc welding, shielded metal arc welding, and submerged arc welding, which allows for versatile usage depending on the application requirements.
Moreover, A514 Gr.Q steel plate has excellent impact resistance and fatigue strength, which makes it a perfect choice for high-stress applications. It is also resistant to corrosion and wear, ensuring a long service life even in harsh environments.
Production Size: Thickness: 4mm- 400mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.
Production ability:10000 Tons Per Month.
Production Way: Hot Rolled, Q+T
Techanical Details:
Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)
Chemical Composition( %):
|
Grade/ Material |
Element |
Composition( Max-A, Min-I) |
|
A514 Grade Q/ A514 GrQ |
C |
0.14-0.21 |
|
Mn |
0.95-1.30 |
|
|
Si |
0.15-0.35 |
|
|
P |
A:0.035 |
|
|
S |
A:0.035 |
Mechanical Properties( Mpa)
|
Grade/ Material |
Tensile Test |
Ksi/MPa |
|
A514 Grade Q/ A514 GrQ |
Tensile Strength |
110-130/760-895 |
|
Yield Strengh |
100/690 |
|
|
Elongation |
18% |
|
|
Impact Test( if any) |
|

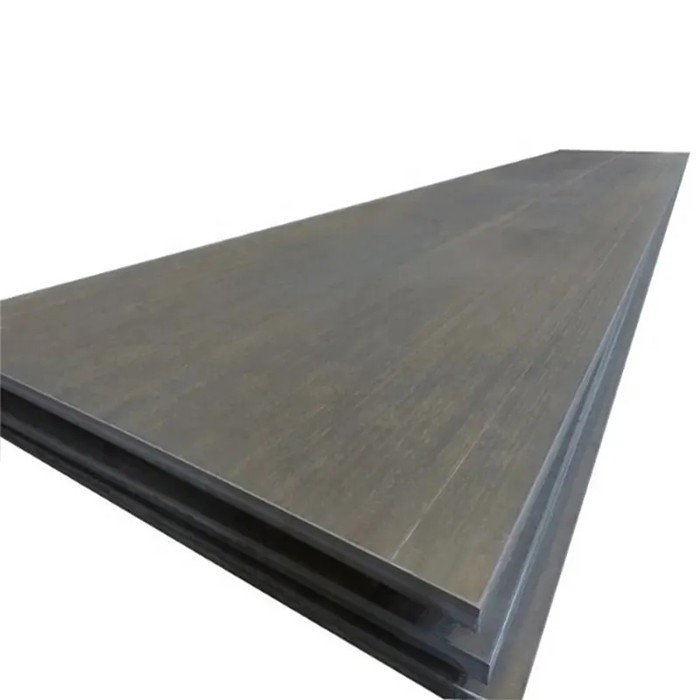

Product Display
Product application
1. Structural Elements: A514 Gr.Q high strength weldable steel plate is ideal for use in building and construction projects, such as bridge and building construction. Its high strength and durability make it a popular choice for structural elements that are subjected to high loads and stresses.
2. Mining Equipment: A514 Gr.Q high strength weldable steel plate is commonly used in the mining industry for equipment such as dump trucks, bulldozers, and loaders. Its high strength and toughness make it well suited for handling heavy loads and harsh conditions.
3. Pressure vessels: A514 Gr.Q high strength weldable steel plate is also a suitable material for manufacturing pressure vessels, boilers, and storage tanks. Its high yield strength and low weight make it an attractive material for these applications.
4. Transportation Equipment: A514 Gr.Q high strength weldable steel plate is used in the manufacture of various transportation equipment such as trailers, truck bodies, and railcars. Its high strength and durability make it ideal for these applications where it provides protection against wear and tear.
5. Aerospace Industry: A514 Gr.Q high strength weldable steel plate is often used in the manufacture of aircraft parts due to its high strength-to-weight ratio. Its high strength makes it ideal for use in critical components of the aircraft that require strength and durability.
6. Offshore Drilling: A514 Gr.Q high strength weldable steel plate is also used in the offshore oil drilling industry. Its high toughness and low weight make it ideal for use in equipment such as drilling rigs, platform legs, and other offshore structures.
Packing and shipping
