High Strength Steel Plate And Ultimate Tensile Sheet
High strength steel plates and ultimate tensile sheet are innovative, reliable, and durable materials that have revolutionized the manufacturing industry. Thanks to their unique properties, they have become indispensable in many applications that require high strength and toughness.
One of the main advantages of high strength steel plates is their ability to withstand extreme forces without showing signs of damage or failure. They can withstand heavy loads and high impact, making them ideal for use in construction, aircraft, and shipbuilding industries. Moreover, these materials have excellent resistance to corrosion and wear, which prolongs their lifespan and reduces maintenance costs.
Ultimate tensile sheets, on the other hand, are known for their exceptional performance in high-stress environments. They are designed to endure the most severe and demanding conditions, such as in aerospace and defense applications. With their superior strength and toughness, they provide unmatched protection and reliability when it matters most.
The use of high strength steel plates and ultimate tensile sheet has helped to increase safety standards and produce more efficient and reliable products. By utilizing these materials, manufacturers can reduce their environmental impact and improve their bottom line by minimizing waste and increasing productivity.
High Strength Steel Plate Grade And Specification
| Item | high strength steel plate |
| Material | 450 Yield ,A36 ,A516 ,A572 , A573 ,A588 , A606 ,A709 Grade 50 ,A871 Grade 65 ,AASHTO M270 ,CSA G40.21 ,Hot Rolled Steel Plate,PVQ A283 ,PVQ A285 ,SAILMA Grade 350 HI , SAILMA Grade 450 HI |
| Thickness | 6-300mm |
| Width | 900-4100mm |
| Length | 3000-25000mm |
| Type | Steel Plate |
| Export to | Saudi arabia, Kuwait, Qatar, Oman, Yemen, UAE, Iran, Turkey, Kazakhstan, Greece, Singapore, Thailand, Indonesia, Vietnam, South Africa,South America,Brazil, India, Australia, Egypt |
Strength Requirements For Structural Steels EN 10025-4, TM-Steels
|
Grade |
Nominal thickness (mm) |
|||||
|
≤16 |
>16 ≤40 |
>40 ≤63 |
>63 ≤80 |
>80 ≤100 |
>100 ≤120 |
|
|
Minimum yield strength ReH, MPa |
||||||
|
S420M |
420 |
400 |
390 |
380 |
370 |
365 |
|
S460M |
460 |
440 |
430 |
410 |
400 |
385 |
|
Tensile strength Rm. MPa |
||||||
|
S420M |
520-680 |
500-660 |
480-650 |
470-630 |
460-620 |
|
|
S460M |
540-720 |
530-710 |
510-690 |
500-680 |
490-660 |
|
Strength Requirements For Structural Steels EN 10025-6, QT-Steels
|
Grade |
Nominal Thickness t (mm) |
||
|
3 ≤ t ≤ 50 |
50 < t ≤ 100 |
100 < t ≤ 150 |
|
|
Minimum yield strength ReH, MPa |
|||
|
S460Q |
460 |
440 |
400 |
|
S500Q |
500 |
480 |
440 |
|
S550Q |
550 |
530 |
490 |
|
S620Q |
620 |
580 |
560 |
|
S690Q |
690 |
650 |
630 |
|
S890Q |
890 |
830 |
|
|
S960Q |
960 |
||
|
Tensile strength Rm, MPa |
|||
|
S460Q |
550-720 |
500-670 |
|
|
S500Q |
590-770 |
540-720 |
|
|
S550Q |
640-820 |
590-770 |
|
|
S620Q |
700-890 |
650-830 |
|
|
S690Q |
770-940 |
760-930 |
710-900 |
|
S890Q |
940-1100 |
880-1100 |
|
|
S960Q |
980-1150 |
||
Minimum Energy Values For Impact Tests On Longitudinal Specimens. TM And QT Steels
|
Quality |
Test Temperature °C |
|||
|
-20 |
-40 |
-50 |
-60 |
|
|
M |
40J |
|||
|
ML |
27J |
|||
|
Q |
30J |
|||
|
QL |
30J |
|||
|
QL1 |
30J |
|||

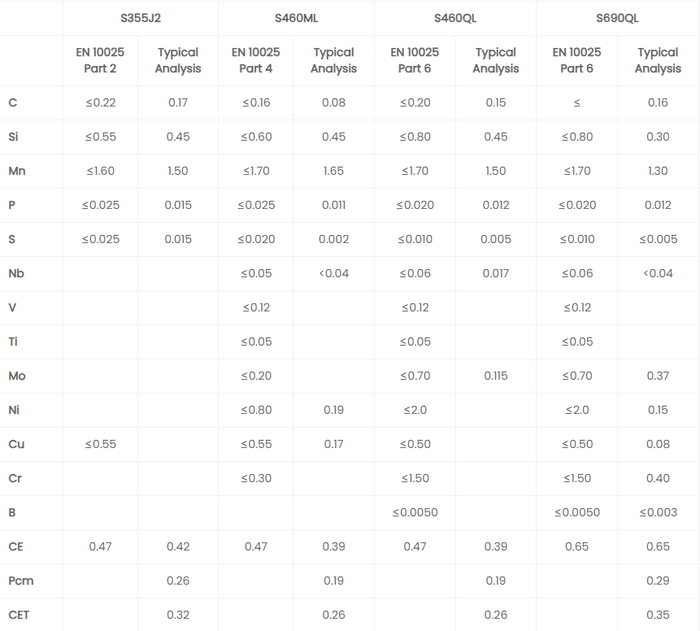

Chemical Compositions Of High-Strength Steel Plate
Wide variation of the composition is possible due to a variety of possible production routes. Carbon equivalents:
CE = C + Mn/6 + (Cr + Mo + V)/5 + (Ni + Cu)/15
Pcm = C +Si/30 + (Mn + Cu + Cr)/20 + Ni/60 + Mo/15 + V/10 + 5B
CET = C + (Mn + Mo)/10 + (Cr + Cu)/20 + Ni/40
Hot Tags: high strength steel plate and ultimate tensile sheet, China high strength steel plate and ultimate tensile sheet manufacturers, suppliers, factory, Hot Rolled High Strength Steel Plate, S460ML High Strength Steel Plate, High Strength Steel Plate, High Strength Structural Steel Plate, Low Alloy High Strength Steel Plate, High Strength S690QL1 Steel
