50crv4 Equivalent
50CrV4 is a high-strength, low-alloy steel that has a wide range of applications in various industries. It is a popular material for manufacturing high-quality spring steels, which are used in the automotive, aerospace, and other heavy industries.
One of the outstanding features of 50CrV4 is its high yield strength, which makes it ideal for use in heavy-duty applications. Due to its excellent mechanical properties, it is also used in the production of tool steel, where it is known for its ability to be hardened and tempered to great effect.
In addition to its strength and durability, 50CrV4 is also highly resistant to wear and abrasion. This makes it ideal for use in harsh environments, where it can withstand severe operating conditions and maintain its integrity over time.
Chemical Composition:
| C(％) | Si(％) | Mn(％) | P(％) | S(％) | Cr(％) | Ni(％) | Cu(%) | V(%) |
|---|---|---|---|---|---|---|---|---|
| 0.46-0.54 | 0.17-0.37 | 0.50-0.80 | ≤0.030 | ≤0.030 | 0.80-1.10 | ≤0.35 | ≤0.25 | 0.10-0.20 |
Mechanical Properties：
| Tensile Strength σb (MPa): | Yield Strength σ0.2 (MPa): | Elongation δ5 (%): | Reduction of area ψ (%): | Hardness: |
|---|---|---|---|---|
| ≥ 1274 (130) | ≥1127 (115) | ≥ 10 | ≥25 | Max. 280HB |
Equivalent:
American grade: G61500
Japanese grade: SUP10
China GB grade: 50CrVA
British grades: 735A51
French grade: 50CrV4
Spectral detection

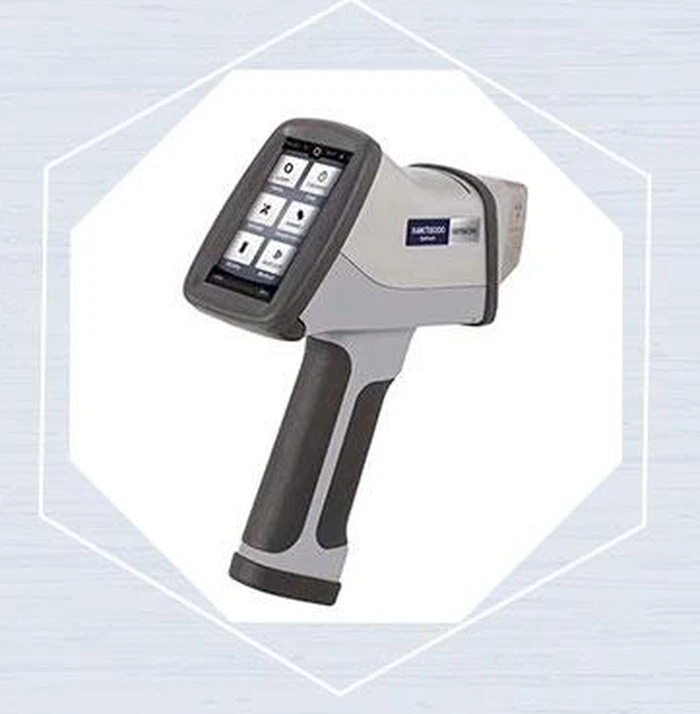

Portable spectrum detector
Stationary semiconductor sealed gas proportional counter
Microprocessor-controlled detector and readout
Circuit detector.
Hardness testing

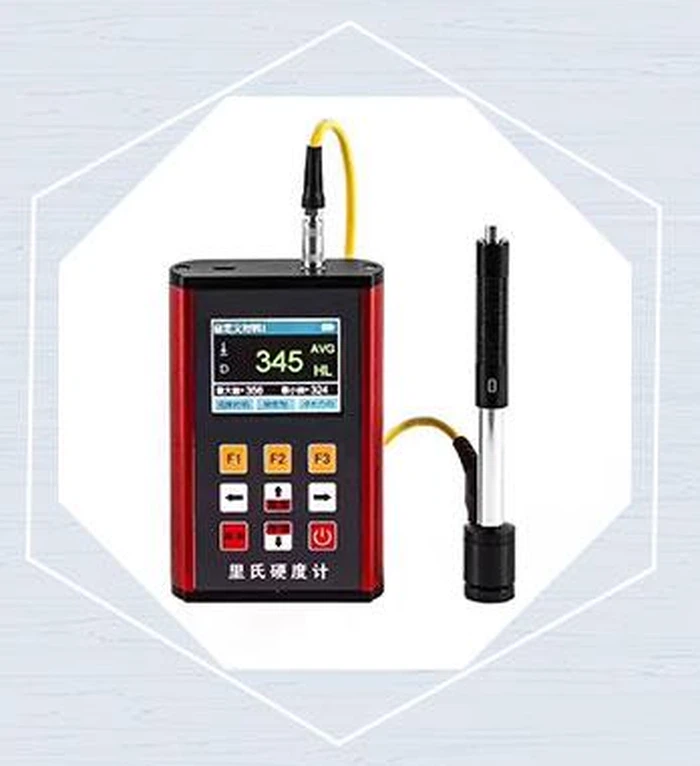

Desktop, portable hardness tester
Bench hardness tester is mainly used for laboratory use,
Portable hardness tester with the advantage of high accuracy
Try on an installed mechanical or permanent assembly
Parts, easy to carry
Flaw detection
How accurate is the flaw detection?

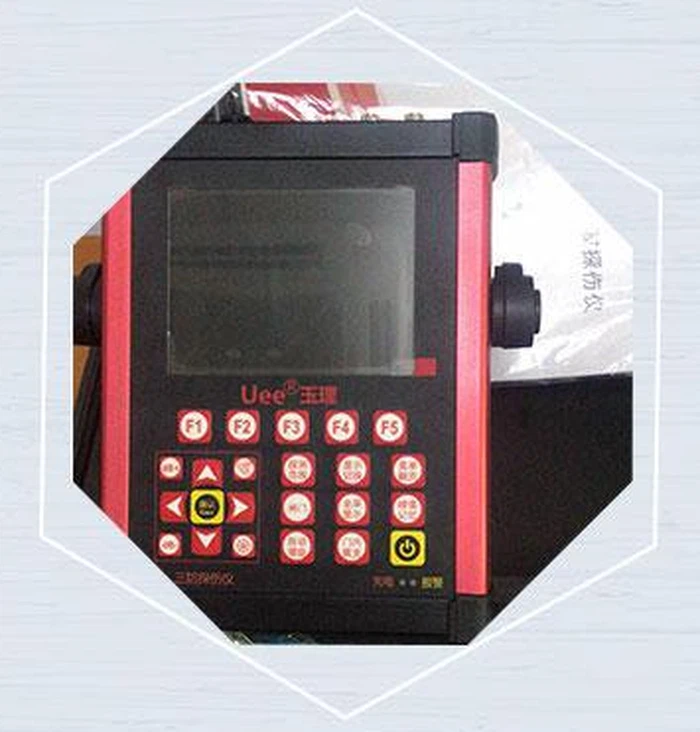

Portable flaw detector
Used to detect the surface and probe of ferromagnetic materials
Measure cracks in metal materials or components
Or defect.
