304 stainless steel tube is a type of stainless steel that is commonly used in various industries for its excellent corrosion resistance, durability, and versatility. It is made up of 18% chromium and 8% nickel, which gives it its corrosion resistance properties.

Send Inquiry

Product Introduction

304 Round Stainless Steel Pipe seamless Stainless Steel Pipe/Tube

304 stainless steel tube is often used in applications such as:

1. Plumbing and water supply systems: Due to its corrosion resistance, it is commonly used for pipes and tubes in plumbing systems.

2. Food and beverage industry: It is widely used in the food and beverage industry because it is resistant to corrosion and can withstand high temperatures.

3. Automotive industry: It is used in exhaust systems, fuel lines, and other components that require resistance to corrosion and heat.

4. Construction industry: It is used for structural purposes such as handrails, balustrades, and support beams due to its strength and durability.

5. Medical industry: It is used in medical equipment and devices due to its non-reactive properties and resistance to corrosion.

304 stainless steel tube comes in various sizes and thicknesses to suit different applications. It can also be welded, bent, and formed into different shapes to meet specific requirements.

304 stainless steel tube

Description
Type:	tube
Outer Diameter	6-2500mm， (3/8"-100")
Thickness	0.3-150mm，(SCH10-XXS)
Length:	2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm， etc
Standard:	ASTM，AISI，JIS,，GB， DIN,，EN
Surface:	BA，2B，NO.1，NO.4，4K，HL，8K
Application:	It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture,and ship components.It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts,springs, and screen mesh etc.
Certification:	ISO, SGS，BV
Technique:	Cold Drawn Seamless Tube / Welded pipe
Edge:	Mill Edge \ Slit Edge
Quality:	SGS Inspection
Grade （ASTM UNS）	201，304，304L，321，316，316L，317L，347H，309S，310S，904L， S32205，2507，254SMOS，32760，253MA，N08926
Grade （EN）	1.4301，1.4307，1.4541，1.4401，1.4404，1.4571，1.4438，1.4539，1.4547， 1.4529，1.4562，1.4410，1.4878，1.4845，1.4828，1.4876，2.4858，2.4819
Main market:	Asia/Europe/ South America
Supply Ability:	5000 Ton/Tons per Month
Packaging & Delivery Packaging Details in bundle,plastic bags,thin film,wooden pallet,standard seaworthy export packing or as customer demands
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM

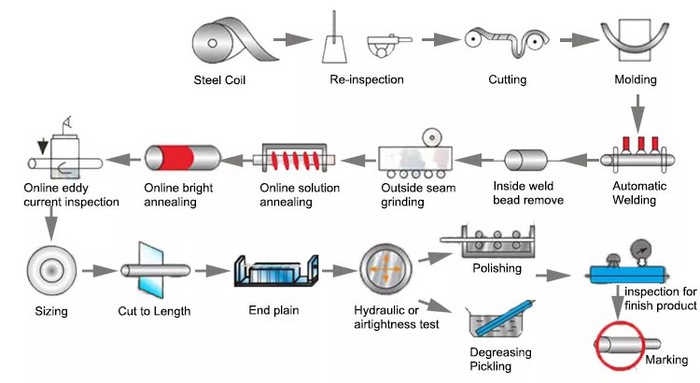

productive process

steel square pipe 304

ASTM A249（DIMENSION TOLERANCE TABLE）

Outside Diameter		Thickness	Length
<25.4mm	±0.10mm	±10%	OD＜50.8mm+3.0mm-0.mm
≥25.4~38.1mm	±0.15mm
≥38.1~50.8mm	±0.20mm
≥50.8~63.5mm	±0.25mm
≥63.5~76.2mm	±0.30mm		OD＜50.8mm+5.0mm-0.mm
≥76.2~101.6mm	±0.38mm
≥101.6~190.5mm	+0.38mm —0.64mm
≥190.5~228.6mm	+0.38mm —1.14mm

ASTM A269（DIMENSION TOLERANCE TABLE）

Outside Diameter		Thickness	Length
<38.1mm	±0.13mm	OD=12.7mm+15%	OD>38.1mm+3.2mm-0mm
≥38.1mm~88.9mm	±0.25mm
≥88.9mm~139.7mm	±0.38mm
≥139.7mm~203.2mm	±0.76mm	OD=12.7mm+10%	OD>38.1mm+4.8mm-0mm
≥2032mm~304.8mm	±1.01mm
≥304.8mm~355.6mm	±1.26mm

ASTM A270（DIMENSION TOLERANCE TABLE）

Outside Diameter		Thickness	Length
< 25.40mm	±0.13mm	±10.00%	OD>101.60mm+3.20mm -0mm
≥25.40mm~50.80mm	±0.20mm
≥50.80mm~76.20mm	±0.25mm
≥76.20mm~101.60mm	±0.38mm		OD>101.60mm+4.80mm -0mm
≥101.60mm~139.70mm	±0.38mm
≥139.70mm~203.20mm	±0.76mm
≥203.20mm~304.80mm	±1.27mm
