What is the pressure of 316L stainless steel pipe?
1, to know the outer diameter specification wall thickness can withstand the pressure calculation method (different steel pipe materials tensile strength is different)
Pressure =(wall thickness *2* steel pipe material tensile strength)/(outer diameter * coefficient)
2, to know the outer diameter and pressure to calculate the wall thickness:
Wall thickness =(pressure * outer diameter * coefficient)/(2* tensile strength of steel pipe material)
3, steel pipe pressure coefficient expression method:
Pressure P<7Mpa coefficient S=8
7< steel pipe pressure P<17.5 coefficient S=6
Pressure P>17.5 coefficient S=4.
Tensile strength (Mpa)520
ASTM A312 Tp 316L Chemical Composition
| Weight % | C | Mn | P | S | Si | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| 316L | .035 | 2.00 | .045 | .030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Mechanical Properties Of SS 316L Seamless Pipe
| Grade | Tensile | ||||
|---|---|---|---|---|---|
| Ultimate/Min | Yield/Min | Elongation/Min | |||
| KSI | MPA | KSI | MPA | % | |
| 316L | 70 | 485 | 25 | 170 | 35 |
Physical Properties Of Stainless Steel 316L Tube
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
SA312 Tp316L Equivalent
| UNS Designation & International Equivalent | ||||||||
|---|---|---|---|---|---|---|---|---|
| Type | UNS | JIS | EN/DIN | EN/BS | EN/NF | ISO | GB | GOST |
| 316L | S31603 | SUS316L | X2CrNiMo18-14-3 | 316S13 | X2CrNiMo17-12-2 | 19 | 00Cr17Ni14Mo2 | 03KH17H14M2 |
316L Modulus Of Elasticity
| Modulus of Elasticity kN/mm2at | 20°C | 200 |
| 200°C | 186 | |
| 400°C | 172 | |
| 500°C | 165 |
Stainless Steel Pipe Service
ANGLE DISPLAY
Product Inspection

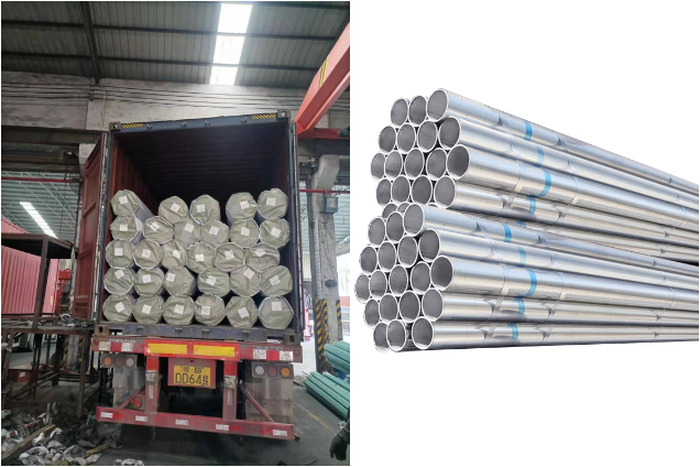

Packing & Delivery
