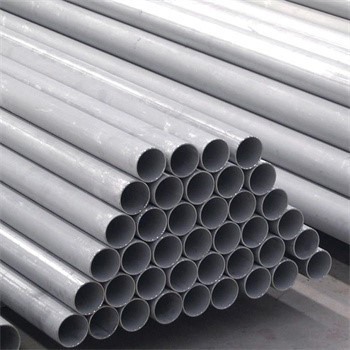

Brushed Mirror Polished Seamless Stainless Steel Pipe
Brushed Mirror Polished Seamless Stainless Steel Pipe
Brushed Mirror Polished Seamless Stainless Steel Pipe
Brushed Mirror Polished Seamless Stainless Steel Pipe
Brushed Mirror Polished Seamless Stainless Steel Pipe
Brushed Mirror Polished Seamless Stainless Steel Pipe
Brushed Mirror Polished Seamless Stainless Steel Pipe
Product Description
Brushed Mirror Polished Seamless Stainless Steel Pipe
The type of stainless steel pipe is known for its smooth and shiny finish, giving it a polished appearance. It is created by first brushing the surface of the stainless steel pipe to create a uniform grain pattern. This process removes any imperfections on the surface of the pipe, giving it a smooth finish. Once the brushing is complete, the surface is polished to a mirror-like finish, enhancing the shine and overall aesthetic of the pipe.
Unlike other types of stainless steel pipes, brushed mirror polished seamless stainless steel pipes do not have any welded seams or joints. This means that they are resistant to leaks and cracks, making them highly reliable and durable. The seamless construction also ensures that there are no weak spots in the pipe, adding to its overall strength and durability.
Brushed mirror polished seamless stainless steel pipes are used in a variety of applications. They are commonly used in the construction industry for both interior and exterior design features, including handrails, balustrades, and decorative features. They are also used in the food and beverage industry as they are non-reactive and do not contaminate food products.
Product Specification
SS 316 / 316L / 316H / 316TI PIPE SPECIFICATIONS :
| Dimensions | : | ASTM, ASME and API |
|---|---|---|
| Standard | : |
ASTM A312 / ASME SA312 |
| Size | : | 1/8″NB TO 30″NB IN |
| Specialized in | : | Large Diameter Size |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Form | : | Round, Square, Rectangular, Hydraulic Etc |
| Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Threaded |
EQUIVALENT GRADES FOR SS 316 / 316L / 316H / 316TI PIPES
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17-11-02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11/316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17-11-02 / Z3CND18-14-03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SS 316H | 1.4401 | S31609 | – | – | – | – | – |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17-123 | X6CrNiMoTi17-12-2 |
CHEMICAL COMPOSITION OF STAINLESS STEEL 316 / 316L / 316H / 316TI PIPES
| Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
| 316 | min. | 10.0 | – | – | – | – | – | 16.0 | 2.00 | – |
| max. | 14.0 | 2.00 | 0.045 | 0.08 | 0.03 | 0.75 | 18.0 | 3.00 | 0.10 | |
| 316L | min. | 10.0 | – | – | – | – | – | 16.0 | 2.00 | – |
| max. | 14.0 | 2.00 | 0.045 | 0.08 | 0.03 | 0.75 | 18.0 | 3.00 | 0.10 | |
| 316H | min. | 10.0 | 0.04 | – | 0.04 | – | 0 | 16.0 | 2.00 | – |
| max. | 14.0 | 0.10 | 0.045 | 0.10 | 0.03 | 0.75 | 18.0 | 3.00 | ||
| 316Ti | min. | 10.0 | – | – | – | – | – | 16.0 | 2.00 | – |
| max. | 14.0 | 2 | 0.045 | 0.08 | 0.03 | 0.75 | 18.0 | 3.00 | 0.1 | |
MECHANICAL PROPERTIES FOR SS 316 / 316L / 316H / 316TI PIPES
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 40 | 205 | 95 | 217 |
| 316L | 485 | 40 | 170 | 95 | 217 |
| 316H | 515 | 40 | 205 | 95 | 217 |
| 316Ti | 515 | 35 | 205 | 75 | 205 |
PHYSICAL PROPERTIES
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 316 | 8000 | 500 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 740 |
| 316L | 8000 | 500 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 740 |
| 316H | 8000 | 500 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 740 |
| 316Ti | 7.99 | 500 | 193 | 16.5 | 14.6 | 740 | |||
Applications
- Oil & Gas Paper
- Refineries Nuclear Power
- Cement Sugar
- Power Plant Fertilizers
- Breweries Chemical
- Petrochemical Shipbuilding
- Defence Mining
- Steel Plant Construction
- Oil Mills Paper
- Engineering Co.
production process
