Ss 304 Schedule 40
SS 304 Schedule 40 refers to a specific type of stainless steel pipe that is made from grade 304 stainless steel and has a schedule 40 thickness.
Schedule 40 refers to the wall thickness of the pipe, with schedule 40 pipes having a thicker wall compared to schedule 10 or schedule 80 pipes. The wall thickness of schedule 40 pipes is standardized and is approximately 0.109 inches or 2.77 millimeters.
304 is a popular grade of stainless steel that contains 18% chromium and 8% nickel, making it highly resistant to corrosion and oxidation. It is commonly used in various industries such as food processing, chemical, and pharmaceutical.
SS 304 pipes are commonly used for applications that require high strength and durability, such as plumbing, water supply, and industrial processes. They are also suitable for applications that require resistance to corrosion and high temperatures.
It is important to note that the dimensions and specifications of 304 Schedule 40 pipes may vary depending on the manufacturer and region. It is recommended to consult the specific manufacturer's documentation or industry standards for accurate information.
|
Standard |
ASTM,AISI,SUS,JIS,EN,DIN,BS,GB,etc. |
|||
|
Material |
201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321, 310S, 309S, 410, 410S,420, 430, 431, 440A, 904L, 2205, 2507,ect. |
|||
|
Out- Diameter |
Seamless Pipe: 6mm-530mm |
|||
|
Thickness(mm) |
Seamless Pipe: 1.0mm - 40mm |
|||
|
Tolerance |
a) Outer Diameter: +/-0.2mm
b) Thickness: +/- 1% or as customer request |
|||
|
Length |
1-12m or as Your Request |
|||
|
Surface |

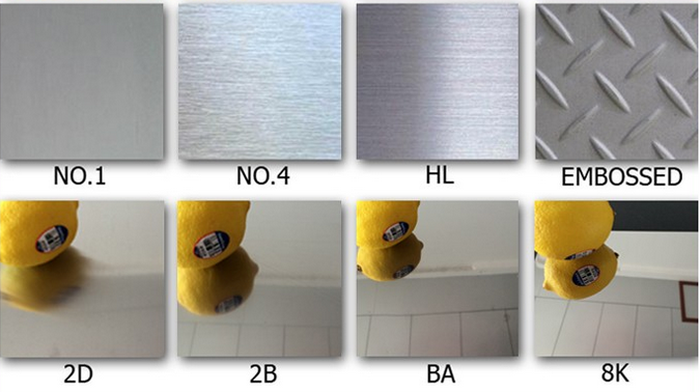

2B,BA(bright annealed) NO.1 NO.2 NO.3 NO.4,2D, 4K, 6K, 8K HL(Hair Line), SB, Embossed,as your request |
|||
|
Certificate |
BV,ISO ,CE,SGS,TUV |
|||
|
Seaworthy Packaging |
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM |
|||
|
0ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM |
||||
Product Description
|
Chemical Composition |
|||||
|
Grade |
C |
Si |
Mn |
Cr |
Ni |
|
304 |
≤0.07 |
≤1.00 |
≤2.0 |
18.00~20.00 |
8.00~10.50 |
|
304L |
≤0.030 |
≤1.00 |
≤2.0 |
18.00~20.00 |
9.00~13.00 |
|
310S |
≤0.08 |
≤1.00 |
≤2.0 |
24.00~26.00 |
19.00~22.00 |
|
316 |
≤0.08 |
≤1.00 |
≤2.0 |
16.00~18.00 |
10.00~14.00 |
|
316L |
≤0.03 |
≤1.00 |
≤2.0 |
16.00~18.00 |
12.00~15.00 |
|
321 |
≤0.08 |
≤1.00 |
≤2.0 |
17.00~19.00 |
9.00~13.00 |
|
904L |
≤0.02 |
≤1.00 |
≤2.0 |
19.00~23.00 |
23.00~28.00 |
|
2205 |
≤0.03 |
≤1.00 |
≤2.0 |
22.00~23.00 |
4.5~6.5 |
|
2507 |
≤0.03 |
≤0.08 |
≤1.20 |
24.00~26.00 |
6.00~8.00 |
