Pipe 304
Pipe 304 is a stainless steel pipe material, it has excellent corrosion resistance, widely used in chemical, petroleum, pharmaceutical, food and other industries. As a high-quality pipe material, it has stable performance and can be used for a long time, which brings great advantages to the construction and operation of engineering projects.
Send Inquiry
Product Introduction
Pipe 304
The minimum size of 304 stainless steel pipe can be achieved:
1, seam can be done needle, 1MM, and less than 1MM outer diameter, the largest welded pipe can be done more than 2 meters;
2, seamless, can be done for the outer diameter of 3MM to 1200MM steel pipe.
product feature
- Strict selection of fine raw materials: strict selection of embryo material, fine rolling pipe, inspection by inspection, flaring and closing test.
- Support customization to meet the needs: according to customer needs to map to sample design, research and development of a variety of new products.
304 Stainless Steel Tube
Chemical Composition Limits |
|||||||||
Weight% |
Cr |
Ni |
Mn |
Si |
Mo |
C |
P |
S |
Ti |
304 |
18-20 |
8-11 |
2.00 |
0.75 |
- |
0.080 |
0.040 |
0.030 |
- |
304L |
18-20 |
8-13 |
2.00 |
0.75 |
- |
0.035 |
0.040 |
0.030 |
- |
Typical Mechanical Properties
Grade |
Tensile Strength Rm N/mm² |
Yield Strength Rp 0.2, N/mm² |
Elongation (%) |
304 Annealed |
500-700 |
195 |
40 |
304L Annealed |
460-680 |
180 |
40 |

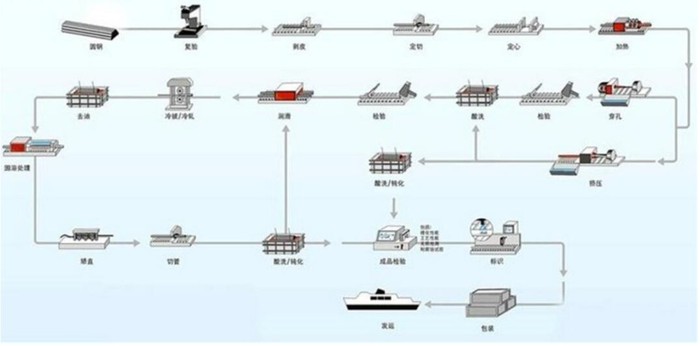

Production Flow of the stainless steel pipe
