Seamless 304 Stainless Steel Tubing
video

Seamless 304 Stainless Steel Tubing

Seamless 304 stainless steel tubing is a common stainless steel pipe, which has the advantages of corrosion resistance, high strength, high temperature and high pressure, etc. It is widely used in petroleum, chemical industry, medicine and other industries. Common models are listed below: 1....
Send Inquiry
Product Introduction

Seamless 304 stainless steel tubing is a common stainless steel pipe, which has the advantages of corrosion resistance, high strength, high temperature and high pressure, etc. It is widely used in petroleum, chemical industry, medicine and other industries. Common models are listed below:



1. 304/304L: 304 and 304L are the same material, the difference is that 304L also adds some low-carbon elements, so that it has better welding performance and corrosion resistance.



2. 316/316L: 316 and 316L are the same material, compared with 304, the addition of molybdenum element, so that it has better corrosion resistance, especially in acidic environments.



3.321:321 is a titanium stabilized stainless steel, with good high temperature resistance and corrosion resistance, outstanding performance in high temperature environments.



4. 347:347 is a niobium stabilized stainless steel, with similar properties to 321, but more stable at high temperatures, suitable for high temperature and high pressure environments.



5. 309/309S: 309 and 309S have excellent performance in high temperature resistance, especially suitable for heaters, heat exchangers and other equipment at high temperatures.



6. 904L: 904L is a kind of high alloy stainless steel, with strong corrosion resistance, suitable for severe corrosion environment, such as Marine engineering, chemical equipment, etc.

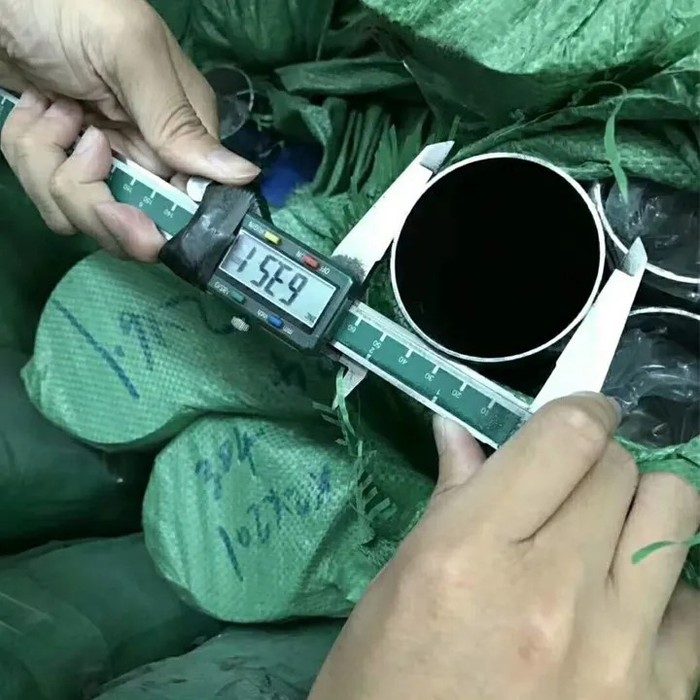

seamless pipe ss 304

Product Use

steel seamless tube

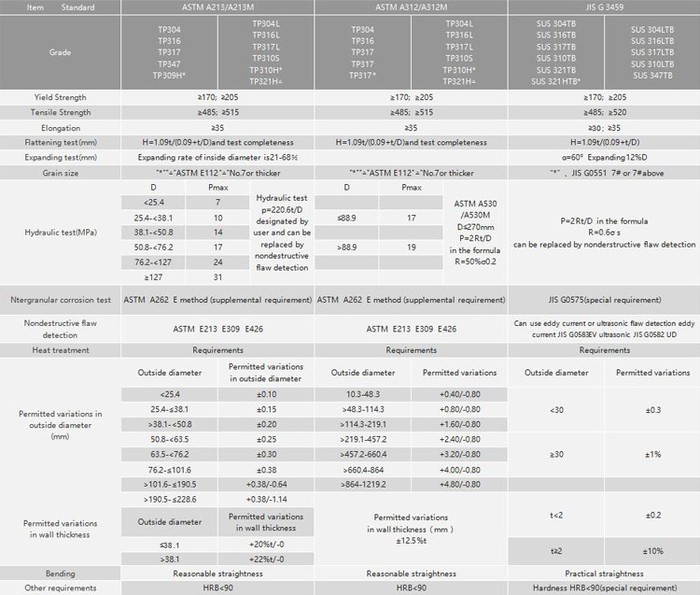

Mechanical Properties

seamless steel tubing

PRODUCT
TYPE

Hot-rolled Seamless Pipe
Cold Drawn Seamless Pipe

SIZE

1/2"-28"(DN15-DN700)/21.3mm-711mm

WALL
THICKNESS

SCH5/SCH10/SCH40/SCH80/SCH160/XXS
1.65mm-30.75mm

MATERIAL

Carbon steel: ASTM A106 GR.A/GR.B/GR.C API 5L GR.A/GR.B/X42/X52/X60/X65/X70/X80 A519 GR.1008-GR.1541
DIN2391 ST35/ST45/ST52 DIN1329 ST37/ST44
BS 6323 LW12b/LW19b JIS-G3444 STK400/STK490/STK500/STK540

Alloy steel: ASTM/ASME A335-P1,A369-FP1 A250-T1,A209-T1 A335-P2,A369-FP2
A213-T2,A335-P12,A369-FP12,A213-T12,A335-P11,A369-FP12,A199-T11,A213-T11,A335-P22,A369-FP22,A199-T22,A213-T22,A335-P5,A389-FP5,A213-T5,A335-P9,A369-FP9,A199-T9,A213-T9

Stainless steel: ASTM A269TP304/TP304L/TP316/TP316L/TP316LN/T321/TP317
ASTM A312 TP201/TP304/TP304L/TP310S/TP310H/TP316/TP316L
ASTM A213 TP201/TP304H/TP304L/TP310S/TP321H/TP316/TP347
904L ASTM A270,ASTM A789,ASTM A268,ASTM A790,ASTM A791,ASTM A803,ASTM A813,JIS DIN,BS,

LENGTH

5M-12M

Surface
Treatment

Carbon steel: Brush black paint galvanize(hot/cold),3PE Anticorrosive

Alloy steel: Brush black paint galvanize(hot/cold),3PE Anticorrosive

Stainless steel: Annealed and pickled/Brihgt Annealing Or Polish

Application Fields

Chemical Industry /Petroleum Industry /Power Industry/Metallurgical Industry
Building Industry /Ship-building Industry

PACKING

nuded cargo or nylon bags or according to the customers' requirements

TRADE TERM

FOB, CNF&CFR, CIF

PAYMENT

TT or L/C

CERTIFICATES

GB/T19001-2008-ISO 9001:2008
