Stainless Pipe Welding
There are several welding methods used for stainless pipe welding, including:
1. Tungsten Inert Gas (TIG) Welding: TIG welding is a popular method for stainless pipe welding. It uses a non-consumable tungsten electrode to create an arc and a shielding gas to protect the weld zone from atmospheric contamination. TIG welding provides precise control over the heat input and produces high-quality welds with excellent aesthetics.
2. Shielded Metal Arc Welding (SMAW): SMAW, also known as stick welding, is another method used for stainless pipe welding. It involves using a consumable electrode coated in flux to create an arc and deposit molten metal into the joint. SMAW is versatile and can be used in various positions, but it may produce more spatter and require more cleanup compared to TIG welding.
3. Flux-Cored Arc Welding (FCAW): FCAW is a semi-automatic welding process that uses a continuously fed tubular electrode filled with flux. It can be used for stainless pipe welding, especially in high-speed applications. FCAW offers higher deposition rates than TIG or SMAW but may require more post-weld cleaning.
4. Gas Metal Arc Welding (GMAW): GMAW, also known as MIG welding, is a commonly used method for stainless pipe welding. It uses a consumable wire electrode and a shielding gas to protect the weld zone. GMAW is relatively fast and can be used in various positions, but it may not provide the same level of precision as TIG welding.
|

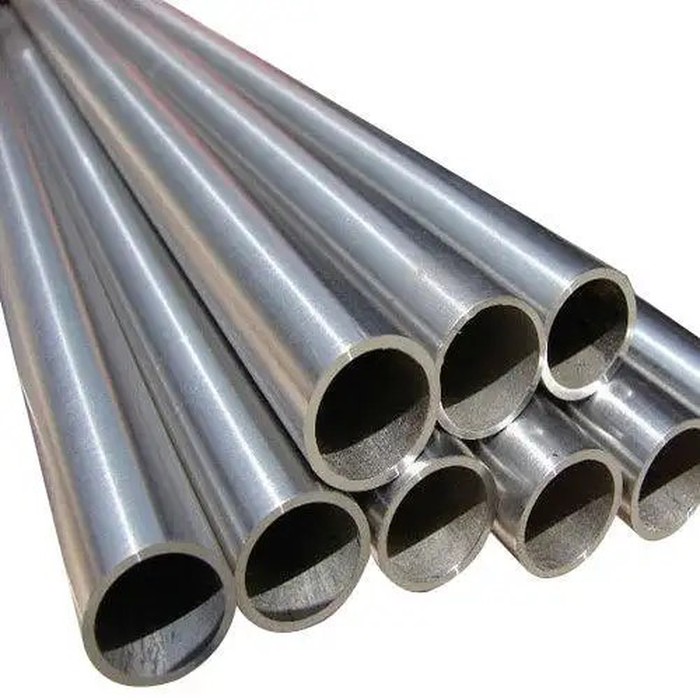

Manufacturers Stainless Steel Round/Square/Rectangle/Slotted Pipe
|
|
|
Material
|
Stainless Steel 201/ Stainless Steel 301
Stainless Steel 304/ Stainless Steel 316 |
|
Standard
|
US ASTM A554
|
|
Type
|
Welded,Decorative
|
|
Surface Treament
|
Mirror:600G/800G Satin:180# 240#/ 320# /400#
|
|
Thickness
|
0.3~5.0MM
|
|
Length
|
5.8Meter/ 6.0Meter/ 6.1Meter Or Custimized
|
|
Regualr Shape
|
Round/ Square/ Retangle/ Oval
|
|
Slotted Pipe
|
Double Slotted/ Single Slotted
|
|
Torlerance
|
Outdiameter:±0.2mm/ Thickness:±0.03mm
Length:±10mm/ Weight OR Qty:15% |
|
MOQ
|
1 TON
|
|
Delivery Time
|
15~25 days
|
|
Package
|
Fibre Bag/Film Cover/Paper Tube/Steel Frame/Wooden Package
|
|
Payment Terms
|
30% Deposit In Advance,Balance Before Loading.
T/T ;L/C At Sight/Western Union
|
|
Application
|
Oil And Gas Industry:Stainless Steel Pipes Are Used For Transportation Of Oil And Gas Chemical Industry: Stainless Steel Straws,Etc
Medical Industry: Railing,Stair Railing, Etc
Automotive Industry: Automotive Exhaust Systems,Etc Medical
Industry:Medical Equipment And Surgical Instruments,Etc Furniture Industry:Stainless Steel Furniture
|
Weight calculation formula
Commonly used: Material 304/304L(diameter - wall thickness)x wall thickness x0.02491x length = weight (kg)
Material 316/316L(diameter - wall thickness)x wall thickness x0.02513x length = Weight (kg)
Unit :kg/m
Scale development status
Stainless steel welded pipe production enterprises are increasing, but there are few enterprises with a output of 5000t, especially those that can produce stainless steel heat exchanger tubes and condensing tubes that need online solution annealing.
