Stainless Steel 304 Square Pipe
video

Stainless Steel 304 Square Pipe

Since the introduction of 304 stainless steel pipe into the domestic market in the 1980s and 90s of the last century, due to its corrosion resistance, oxidation resistance, easy processing, easy maintenance of good performance by the majority of users, the application range is also widely.
Send Inquiry
Product Introduction

stainless steel 304 square pipe

Factors affecting the life of 304 stainless steel pipe

Generally speaking, there are the following points:

1, poor use environment;

304 stainless steel pipe itself has the ability to resist atmospheric oxidation, but also has the ability to corrode in the medium containing acid, alkali and salt. However, the size of its corrosion resistance is changed with the chemical composition of the steel itself, the mixing state, the use conditions and the type of environmental media. In the dry and clean atmosphere, there is absolutely excellent corrosion resistance, but if it is moved to the seaside area, in the sea fog containing a lot of salt, it will soon rust, affecting the service life of 304 stainless steel pipe.

PS: Users in high-pollution areas: such as the seaside, chemical plants, brick factories, electroplating pickling plants, waterworks, sewage treatment plants and other places to use 304 stainless steel pipes, or with corrosive chemical products to clean 304 stainless steel pipes, will cause rust, I hope to keep in mind.

2. Improper processing and installation; When the stainless steel processor is doing the product, when cutting the stainless steel pipe or iron, the iron filings will splash onto the surface of the steel pipe, and if it is not cleaned up in time, it will cause the 304 stainless steel pipe to rust. Installing stainless steel before painting walls or houses can also cause rust in stainless steel products.

3, improper cleaning and maintenance

In the cleaning process can not use the steel ball or steel wire brush to remove water stains on the surface of the stainless steel pipe, because this causes scratches on the surface of the 304 stainless steel pipe, in addition to avoid the use of bleaching ingredients and abrasive detergent, including detergent containing acid and alkali properties of the detergent, and then rinse the surface of the 304 stainless steel pipe with water at the end.

304 stainless steel pipe is an environmentally friendly material, the correct use and maintenance can make the service life extended. The premise is that the quality of the 304 stainless steel pipe you choose should be guaranteed, and choose a quality guaranteed 304 stainless steel pipe brand jblsteel.

Chemical Composition

GradeC C Si Mn P S Ni Cr Mo N
201 (1Cr17Mn6Ni5N) ≤0.15 ≤1.0 ≤5.5 ≤0.06 ≤0.03 3.5-5.5 16.0-18.0 - ≤0.25
202 (1Cr18Mn8Ni5N) ≤0.15 ≤0.07 ≤7.5 ≤0.06 ≤0.03 4.0-6.0 17.0-19.0 - ≤0.25
304 (Cr18Ni9) ≤0.08 ≤0.07 ≤2.0 ≤0.04 ≤0.03 8.0-11.0 18.0-20.0 - -
304 (Cr18Ni9) ≤0.08 ≤0.07 ≤2.0 ≤0.04 ≤0.03 8.0-11.0 18.0-20.0 -
304L (00Cr18Ni10) ≤0.03 ≤0.07 ≤2.0 ≤0.04 ≤0.03 8.0-11.0 18.0-20.0 - -
316 (0Cr17Ni12Mo2) ≤0.08 ≤0.07 ≤2.0 ≤0.04 ≤0.03 11.0-14.0 16.0-18.0 2.0-3.0 -
316L (0Cr17Ni14Mo2) ≤0.03 ≤0.07 ≤2.0 ≤0.04 ≤0.03 11.0-14.0 16.0-18.0 2.0-3.0 -
321 ≤0.08 ≤1.0 ≤2.0 ≤0.04 ≤0.03 9.0-12.0 17.0-19.0   Ti≥5xC
409 ≤0.08 ≤1.0 ≤1.0 ≤0.04 ≤0.03 ≤0.5 10.5-11.7   Ti6xC%≤0.70
409L ≤0.03 ≤1.0 ≤1.0 ≤0.04 ≤0.03 0.5 10.5-11.7   Ti8xC%≤0.70
430 ≤0.12 ≤1.0 ≤1.0 ≤0.04 ≤0.03   16.0-18.0

Product Description

Name Stainless Steel Round Pipe
Grade (TP)201,202,304,304L,316L,317L,321,310s,254mso,904L(welded),2205,625 etc.
Surface 2B, No.1, No. 4, No.8, BA, 6K, 1D, 2D, Mirror Finished, 8K, Hair Line
Diameter 3mm-2000mm
Longth 3000mm, 6000mm& Customsized
Thickness 0.05mm-100mm
Packing Standard export packing
Technique Cold rolled/hot rolled
Payment terms T/T, L/C at sight
Application Kitchenware, home appliances, construction decoration, stairs, refrigerated container, burner parts, exhaust parts of auto
Shipment By sea, by air, by express(Shipment can be made within 7-10 days.)
Standard DIN 17456-85 DIN 17458-85 DIN 17459-92.ect
JIS G3446-1994 JIS G3448-1997 JIS G3459-1997 JIS G3463-1994,ect.
GB13296-1991 GB14975-2002 GB14976-2002,ect.

Product Application

These grades of stainless steel pipes are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:
Decoration,
Modern Architecture,
kitchenware,
Hardware,
Chemical and petrochemical industry,
Power generation plant,
Renewable energy,
Pulp and Paper process piping,
Pharmaceutical plant,
Food and beverage process,
Oil and gas refinery industry,
Mining industry,
Water container / waste bin,
Marine, etc.

304 304l stainless steel tube

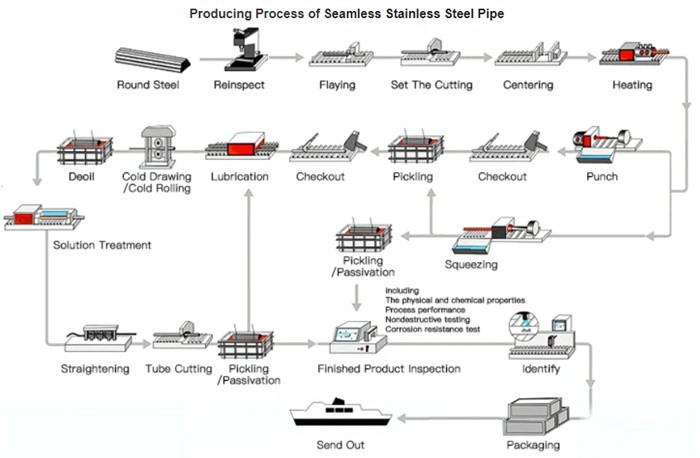

Manufacturing Technique

304l stainless steel pipe

schedule 10 ss 304 pipe thickness

ss304 sch 10

Types of Pipe

astm tp304



Hot Tags: stainless steel 304 square pipe, China stainless steel 304 square pipe manufacturers, suppliers, factory
