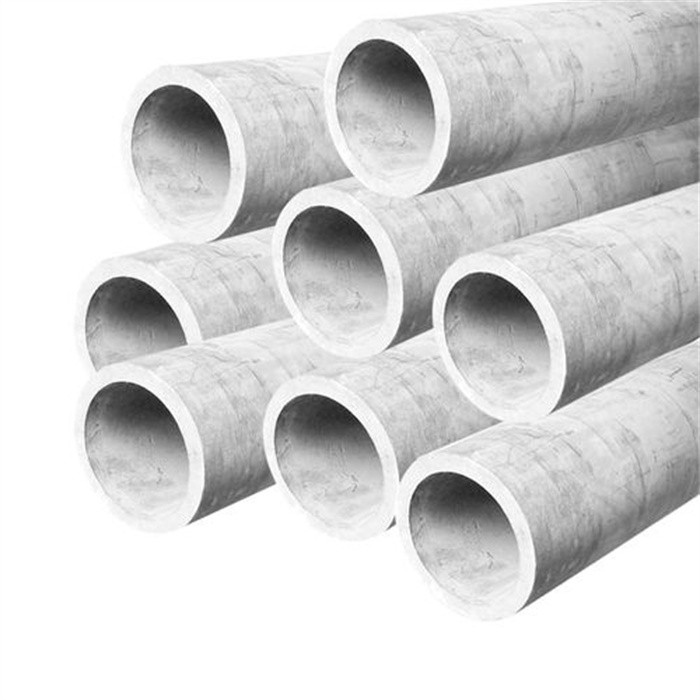

Stainless Steel 316L Pipe And ASTM A312 TP316L ERW
Stainless Steel 316L Pipe is a highly durable and corrosion-resistant material that is widely used in various industries such as chemical processing, petrochemicals, marine engineering, and food processing. This type of pipe is made up of an alloy containing chromium, nickel, and molybdenum, which provides superior resistance to corrosion, heat, and chemical degradation.
ASTM A312 TP316L ERW (Electric Resistance Welded) is a type of welding process that is commonly used in the production of stainless steel pipes and tubes. This welding process uses a high-frequency electrical current to create heat, which melts the metal and fuses it together.
The combination of Stainless Steel 316L Pipe and ASTM A312 TP316L ERW offers many benefits, such as high strength, ductility, and toughness. It is also resistant to pitting and crevice corrosion, making it an ideal choice for use in harsh environments.
In addition, these pipes are easy to clean and maintain, making them ideal for use in food processing and other clean environments. They are also a cost-effective option compared to other materials such as copper or titanium.
Standard Specification For SS 316L Seamless Pipes
| Specification | ASTM A312 / ASME SA312 |
| Standard | ASTM, ASME and API |
| Size | 1 / 8" NB - 24" NB |
| Types | Seamless - Hot Rolled / Cold Drawn |
| Length | Single Random, Double Random & Required Length |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Thickness | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Types | Seamless / Cold Drawn / Hot Finish / Cold Finish |
| Form | Round Pipes, Square Pipes, Rectangular Pipe, Hot Finish Pipe, Cold Drawn pipe, |
| End | Plain End, Beveled End, Treaded |
SS 316L Seamless Pipes Equivalent Grade
| Standard | SS 316L |
| WERKSTOFF NR. | 1.4404 / 1.4435 |
| UNS | S31603 |
| JIS | SUS 316L |
| BS | 316S11 / 316S13 |
| GOST | 03Ch17N14M3 / 03Ch17N14M2 |
| AFNOR | Z3CND17‐11‐02 / Z3CND18‐14‐03 |
| EN | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Stainless Steel TP316L Seamless Pipes Application
Stainless Steel 316L Seamless Pipes uses in Water Supply Systems
Austenitic SS TP316L Seamless Pipes uses in Power Plant
TP316L Steel Seamless Piping uses in Paper & Pulp Industry
SS 316L Seamless Pipes uses in General Purpose Applications
Stainless Steel 316L Seamless Pipes uses in Fabrication Industry
Austenitic steel 316L Seamless Pipes uses in Food Processing Industry
Stainless Steel TP316L Seamless Pipes uses in Structural Pipe
ASTM A312 Stainless Steel Pipes uses in Oil and Gas Pipeline
ASME SA312 Seamless Piping uses in Chemical Industry
SUS 316L Stainless Steel Seamless Pipes uses in Plumbing
AISI 316L Seamless Stainless Steel Pipes uses in Heating
Chemical Composition
| SS | 316L |
|---|---|
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| M | 2.00 – 3.00 |
Mechanical Properties
| Grade | 316L |
| Tensile Strength (MPa) min | 485 |
| Yield Strength 0.2% Proof (MPa) min | 170 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
