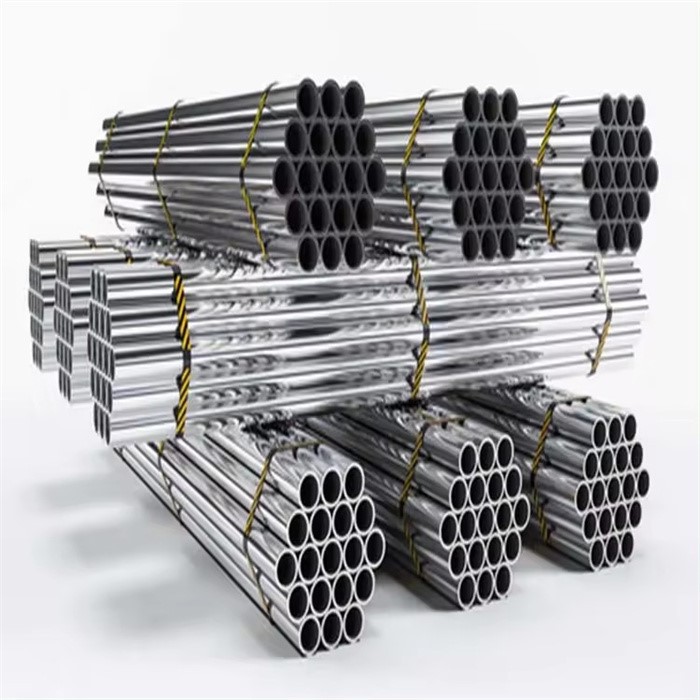

Stainless Steel 316L SCH 40 Pipe
Stainless Steel 316L SCH 40 Pipe
Stainless Steel 316L SCH 40 Pipe
Stainless Steel 316L SCH 40 Pipe

Stainless Steel 316L SCH 40 Pipe

ingredient
316L C≤0.03, Si≤1.00, Mn≤2.00, P≤0.035, S≤0.03, Ni:10.0-14.0, Cr:16.0-18.5, Mo:2.0-3.0
Yield strength
316L 180(N/MM2)
Tensile strength
316L 480(N/MM2)

Send Inquiry

Product Introduction

Can 304 and 316l stainless steel pipes be welded together?

The same 300 series, 304 is 0Cr18Ni9,316L is 0Cr17Ni14Mo2, and can be welded together with A202 welding rods

show details

Strong plasticity: can withstand expansion, shrinkage, stretching, bending, punching, pressing and other processing.

Pipe diameter standard: pipe diameter tolerance plus or minus 2 wires, cut flat, no burrs.

Excellent material: Baosteel, TiSCO, Qingshan, Dingxin refining furnace steel strip; The content of chromium, nickel and carbon is up to standard, the thickness is uniform, and the tube surface is free of trachoma.

Spot zero cut :5000 tons of inventory, thousands of specifications, order can be shipped, laser cutting, reduce material waste.

processing technic

Stamping/drawing
Surface treatment
Hole turning/bending
Strip/film
Laser cutting
Open/weld

Stainlesss Steel 316L Pipes & Tubes Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	AFNOR	BS	GOST	EN
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	Z3CND17‐11‐02 / Z3CND18‐14‐03	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	X2CrNiMo17-12-2 / X2CrNiMo18-14-3

TP 316L Stainless Steel Pipes & Tubes Chemical Composition :

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316L	min.	–	–	–	–	–	16.0	2.00	10.0	–
316L	max.	0.08	2.00	0.75	0.045	0.03	18.0	3.00	14.0	0.10

Physical properties :

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
			0-100°C	0-315°C	0-538°C	at 100°C	at 500°C
316L	8000	193	15.9	16.2	17.5	16.3	21.5	500	740

ASTM A312 / A213 SS TP 316L Pipes & Tubing Mechanical properties:

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
316L	485	170	40%	95	217
