Stainless Steel Tubes
Stainless Steel Tubes
Usually stainless steel pipes have three characteristics: weldability, corrosion resistance, polishing performance (BQ) weldability products use different requirements for welding performance are also different. A class of tableware generally does not require welding performance, even including some pot enterprises. However, the vast majority of products need raw materials with good welding performance, such as second-class tableware, thermos cups, steel pipes, water heaters, drinking fountains and so on.
Physical Properties of UNS S31603 tubing
| Grade | Modulus (GPa) | Density | Electrical Resistivity (n.m) | Thermal Conductivity (W/m.K) | Mean Coefficient of Thermal Expansion (m/m/0C) | Specific Heat 0-1000C (J/kg.K) | |||
| at 5000C | at 1000C | 0-3150C | 0-1000C | 0-5380C | |||||
| 316L | 193 | 8000 | 740 | 21.5 | 16.3 | 16.2 | 15.9 | 17.5 | 500 |
Equivalent Grades Of TP 316L hot rolled tube
| STANDARD | GOST | WERKSTOFF NR. | AFNOR | UNS | JIS | BS | EN | |
| SS 316L | 03Ch17N14M3 / 03Ch17N14M2 | 1.4404 / 1.4435 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | S31603 | SUS 316L | 316S11 / 316S13 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
SS 316L tubing Chemical Compatibility Chart
| Grade | P | C | S | Mn | Ni | Si | Mo | Cr | N | |
| 316L | min. | – | – | – | – | 10.0 | – | 2.0-3.0 | 16.0 | – |
| max. | 0.045 | 0.035 | 0.030 | 2.0 | 14.0 | 0.75 | 18.0 | – | ||
Mechanical Properties Database of SS 316L Seamless Tubing
| Grade | Yield Properties 0.2% Proof (MPa) min | Tensile Properties (MPa) min | Elongational (% in 50mm) min | Hardness | |
| Brinell (HB) max | Rockwell B (HR B) max | ||||
| 316L | 170 | 485 | 40 | 217 | 95 |
Application

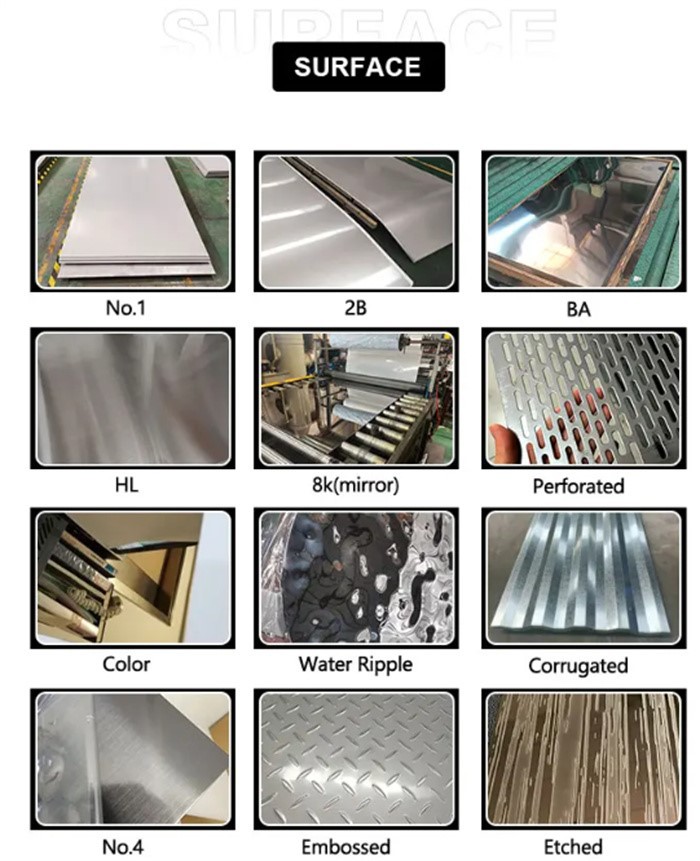

SURFACE
Product Testing
Packaging & Shipping

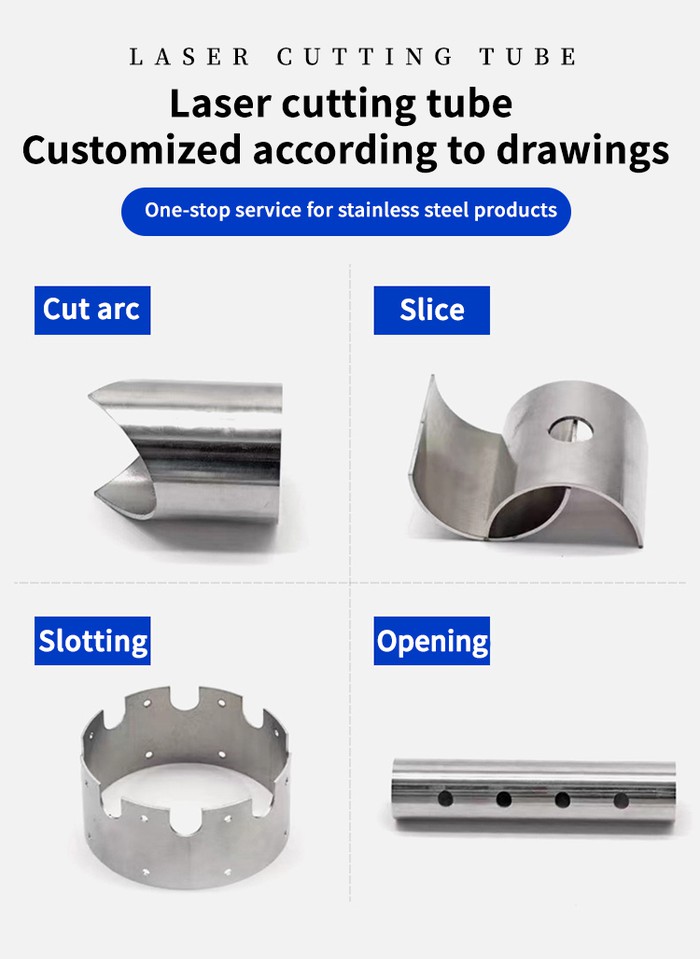

Laser cutting tube Customized according to drawings
Detailed Photo

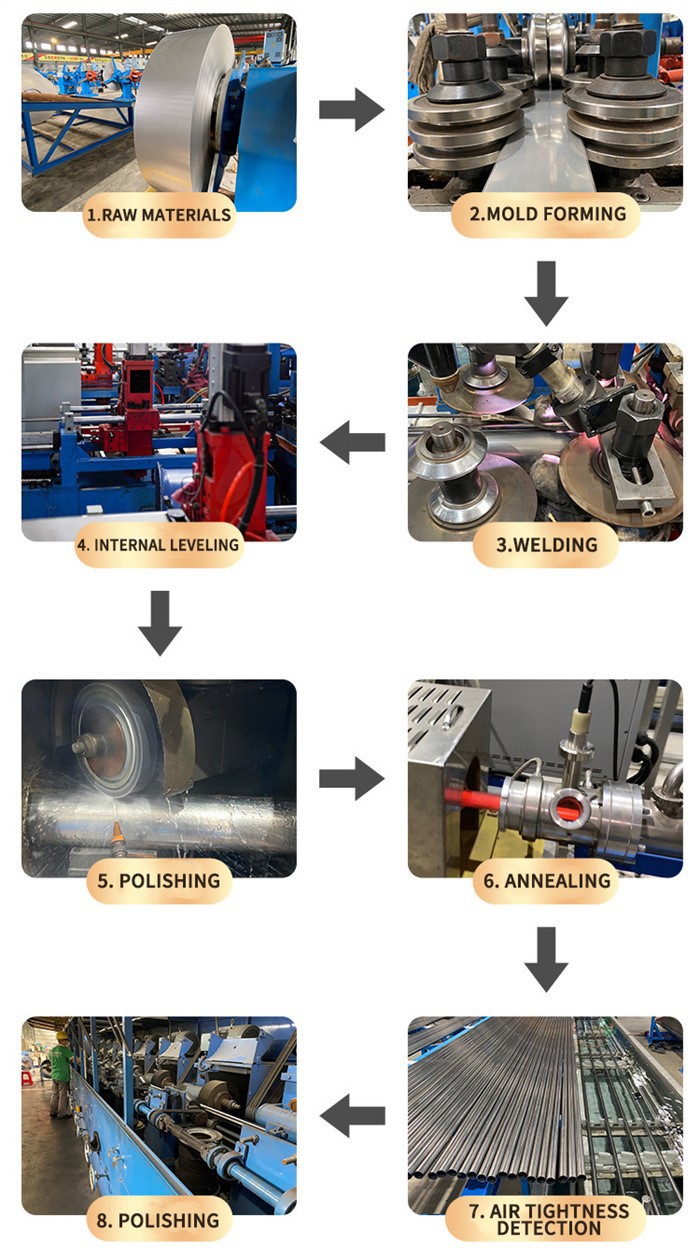

production flow
