Welded Stainless Steel Pipes
Stainless steel welded pipe in the production process, the tank will be uniformly squeezed, and then the line bright solid melting annealing, then the surface will become very smooth, so that it is not easy to scale, but also easy to clean, to achieve the purpose of saving time and effort. In addition, its wall thickness is uniform and can be arbitrarily measured, so its accuracy is very high. Moreover, stainless steel also has good corrosion resistance, so its service life can be very long.

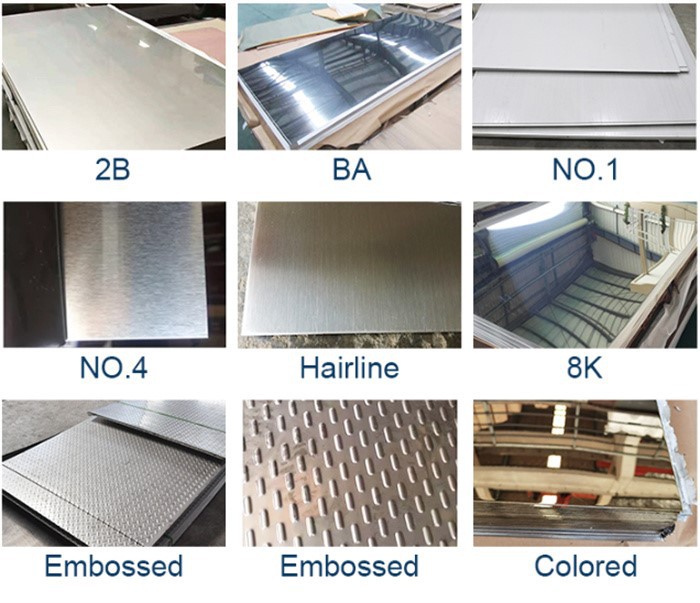

Welded Pipe's Surface Finishes:
Stainless Steel DIN 1.4436 EFW Tube Sizes In Mm
| Wall Thickness | Stainless Steel 310 Tube Sizes ( O.D.) |
| .010 | 1/16" , 1/8" , 3/16" |
| .020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
| .012 | 1/8" |
| .016 | 1/8" , 3/16" |
| .028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
| .035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
| .083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
| .095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
| .109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
| .120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
| .125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
Chemical Properties of SS UNS S31603 Rectangular Pipe
| SS 310 | SS 310S | |
| Ni | 19 – 22 | 19 – 22 |
| Cr | 24 – 26 | 24 – 26 |
| C | 0.25 max | 0.08 max |
| Fe | Balance | |
| Mn | 2 max | 2 max |
| Si | 1.50 max | 1.50 max |
| S | 0.03 max | 0.03 max |
| P | 0.045 max | 0.045 max |
Mechanical & Physical Properties of SS 310 Pipe
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35% |
Equivalent Of ASME SA312 SS 310 Schedule 40 Pipe
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310 | 1.4841 | S31000 | - | - | - | - | - |
Equivalent Of ASME SA312 SS 310 Schedule 40 Pipe
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310 | 1.4841 | S31000 | - | - | - | - | - |
Others
Maximum Allowable Working Pressure (Psi) For Fractional Sizes
| Pipe OD | Wall Thickness (Inches) | |||||||||||
| .010 | .012 | .016 | .020 | .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| 1/16 | 6,422 | 7,872 | 10,768 | 13,484 | ||||||||
| 1/8 | 6,422 | 9,325 | 11,823 | |||||||||
| 3/16 | 4,081 | 5,935 | 7,630 | 11,005 | ||||||||
| 1/4 | 4,305 | 5,518 | 8,053 | 10,946 | ||||||||
| 3/8 | 3,530 | 5,107 | 7,029 | |||||||||
| 1/2 | 2,595 | 3,721 | 5,078 | 6,699 | ||||||||
| 5/8 | 2,051 | 2,927 | 3,970 | 5,200 | 6,056 | |||||||
| 3/4 | 1,696 | 2,412 | 3,259 | 4,249 | 4,933 | 5,755 | 6,422 | |||||
| 7/8 | 1,446 | 2,051 | 2,764 | 3,592 | 4,161 | 4,842 | 5,391 | |||||
| 1 | 5,040 | 7,140 | 9,595 | 12,445 | 14,390 | 16,715 | 18,585 | |||||
Maximum Allowable Working Pressure (Bar) For Metric Sizes
| Pipe OD | Wall Thickness (Inches) | ||||||||||||
| 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 1.6 | 1.8 | 2.0 | 2.2 | 2.5 | 3.0 | |
| 3 | 464 | 567 | 672 | 775 | 965 | ||||||||
| 4 | 335 | 411 | 491 | 567 | 723 | 873 | |||||||
| 6 | 310 | 360 | 464 | 567 | 723 | 775 | |||||||
| 8 | 227 | 262 | 335 | 411 | 528 | 567 | |||||||
| 10 | 206 | 262 | 320 | 411 | 442 | ||||||||
| 12 | 169 | 215 | 262 | 335 | 360 | 411 | 464 | ||||||
| 14 | 182 | 222 | 282 | 303 | 345 | 389 | 433 | 500 | 612 | ||||
| 16 | 158 | 192 | 244 | 262 | 298 | 335 | 372 | 430 | 528 | ||||
| 18 | 140 | 169 | 215 | 230 | 262 | 294 | 326 | 377 | 464 | ||||
| 22 | 113 | 137 | 173 | 186 | 211 | 236 | 262 | 301 | 369 | ||||
| 25 | 99 | 120 | 152 | 162 | 184 | 206 | 228 | 262 | 320 | ||||
