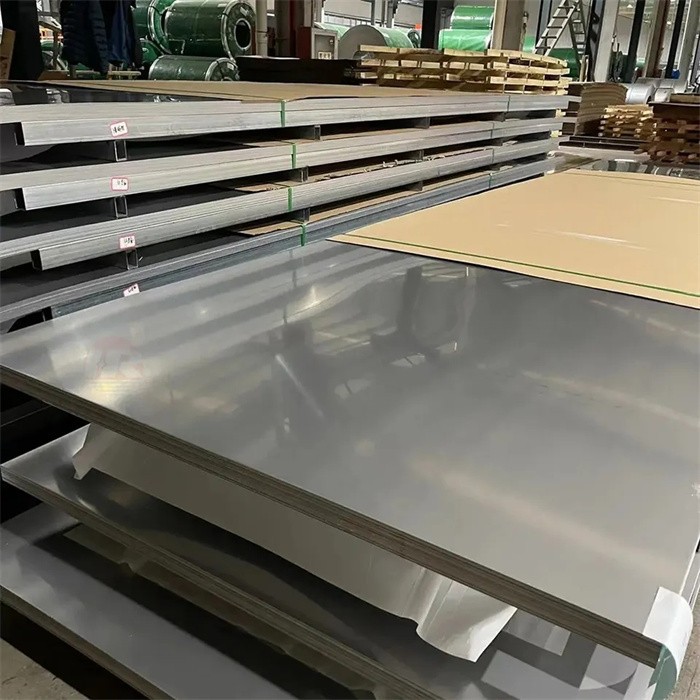

304L stainless sheet is a high-quality material that is widely used in various industries due to its excellent corrosion resistance, durability, and versatility. This sheet is made of a low carbon version of 304 stainless steel, making it an ideal choice for welding applications.

Send Inquiry

Product Introduction

The development of 304L stainless steel has made the corrosion resistance, appearance, processability, strength and other characteristics of 304L stainless steel far more than other materials, and many surface treatment methods of stainless steel can obtain colorful colors and shapes, which makes a great contribution to the development of stainless steel.

304L is a variant of 304 stainless steel with a lower carbon content and is used in applications where welding is required. The lower carbon content minimizes the carbides precipitated in the heat-affected zone near the weld, which can lead to intergranular corrosion (welding erosion) in stainless steel in some environments.

304l stainless steel strip

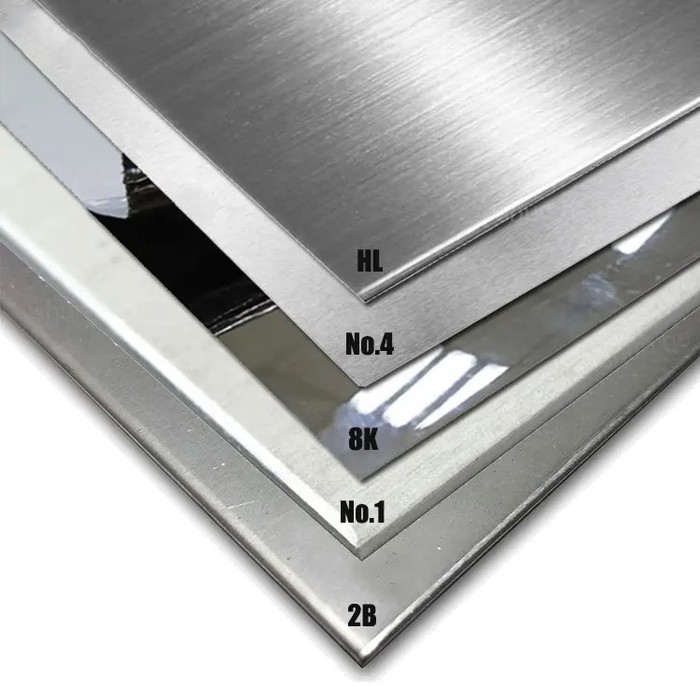

Surface finish	Defination
2B	Those finish,after cold rolling,by heat treatment,picking or other equivialent treatment and lastly by cold rolling to given appropriate luster
BA	Those processed with bright heat treatment after cold rolling
No.1	The surface finished by heat treatment and picking or processes corresponding there to after not rolling
No.4	Those finished by polishing with No.150 to No.180 abrvsivea specified in JIS R 6001
HL	Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size
8K	A mirror like reflective surface by polidhing with finer abrasivea over 800 mesh

304l sheet

304 Stainless Steel Plate / Stainless Steel Sheet 304

Common number	ASTM	Mechinical Spefication
Rm Mpa	Y.S.(Mpa)	A5
201	201	≥520	≥275	≥40
1Cr17Ni7		≥520	≥205	≥40
301	301	≥520	≥205	≥40
1Cr18Ni9		≥520	≥205	≥40
0Cr18Ni9		≥520	≥205	≥40
304	304	≥515	≥205	≥30
00Cr19Ni10		≥480	≥175	≥40
304L	304L	≥485	≥170	≥30
309S	309S	≥520	≥205	≥40
0Cr25Ni20		≥520	≥205	≥40
310S	310S	≥520	≥205	≥40
0Cr17Ni12Mo2		≥520	≥205	≥40
316	316	≥515	≥205	≥30
00Cr17Ni14Mo2		≥480	≥175	≥40
316L	316L	≥485	≥170	≥30
316Ti	316Ti	≥515	≥205	≥30
0Cr19Ni13Mo3		≥520	≥205	≥40
00Cr19Ni13Mo3		≥480	≥177	≥40
317L	317L	≥480	≥176	≥40
0Cr18Ni10Ti		≥520	≥205	≥40
321	321	≥515	≥205	≥30
409L		≥360	≥175	≥25
410	410	≥440	≥205	≥20
430	430	≥450	≥205	≥22
444	444	≥480	≥310	≥30
410S		≥420	≥290	≥33
2205/S31803/F51	2205	≥450	≥620	≥15
2507/S32750/F53	2507	≥550	≥800	≥25
630		≥520	≥785	≥18
904L/N08904		≥490	≥216	≥35

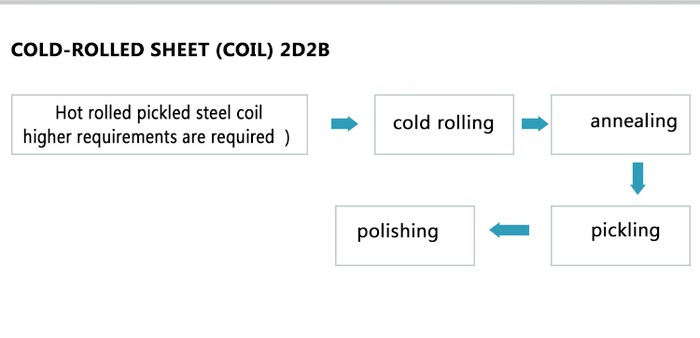

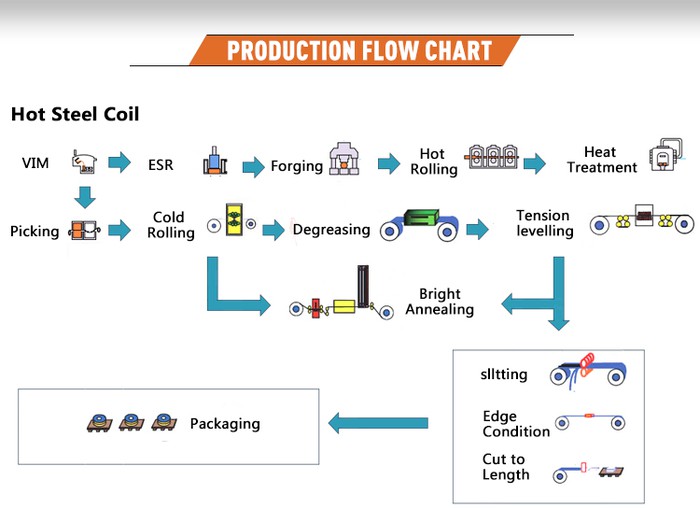

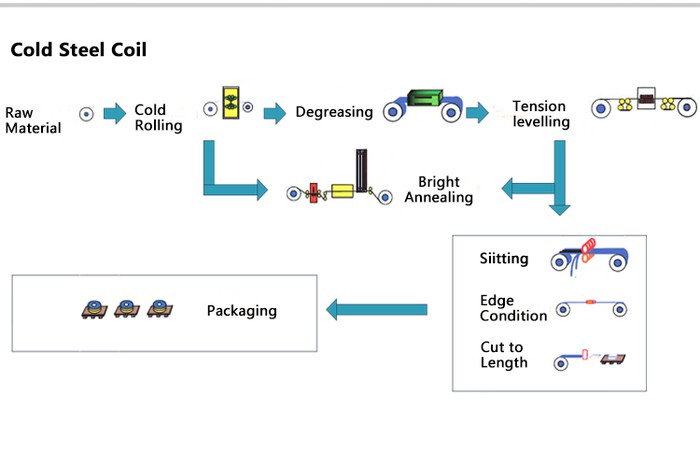

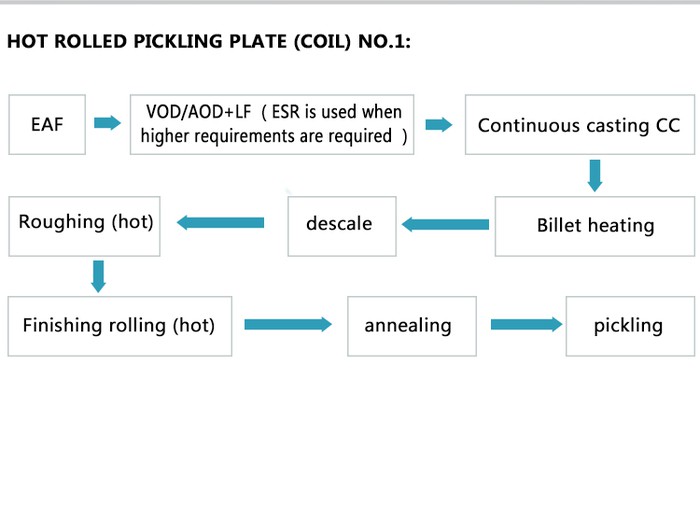

304l stainless sheet Production Flow

The production of 304L stainless sheets is a carefully controlled process that requires expertise and precision to ensure high quality products. The production flow is designed to facilitate a smooth and efficient manufacturing process that meets the highest standards of excellence.

The first step in the production flow involves the selection of high-quality raw materials, including stainless steel, which is then carefully inspected to ensure that it meets the required specifications. The stainless steel is then heated to a precise temperature and rolled into sheets of a specific thickness according to customer specifications.

The next step in the production process involves annealing to ensure that the material is free of stress and exhibits excellent surface characteristics. The annealing process involves heating the steel to a specific temperature and holding it there for a specified period of time to allow the austenitic structure to become fully relieved of any residual stresses.

After annealing, the stainless steel is further processed by a series of surface treatments such as pickling, polishing, and grinding to achieve a smooth and defect-free surface that is ready for further use.

Finally, the 304L stainless sheets are subjected to rigorous quality control inspections to ensure that they meet the highest standards for quality, consistency, and durability. This is done to ensure that customers receive materials that are free of defects, consistent in size and thickness, and capable of meeting the demanding needs of the industries they serve.

Overall, the production flow of 304L stainless sheets exemplifies the best practices in manufacturing, using high-quality raw materials, precision techniques, and rigorous quality control procedures to produce products that meet the most exacting standards. Through continuous improvement and dedication to quality, manufacturers of 304L stainless sheets maintain the reputation for excellence that their customers have come to expect.
