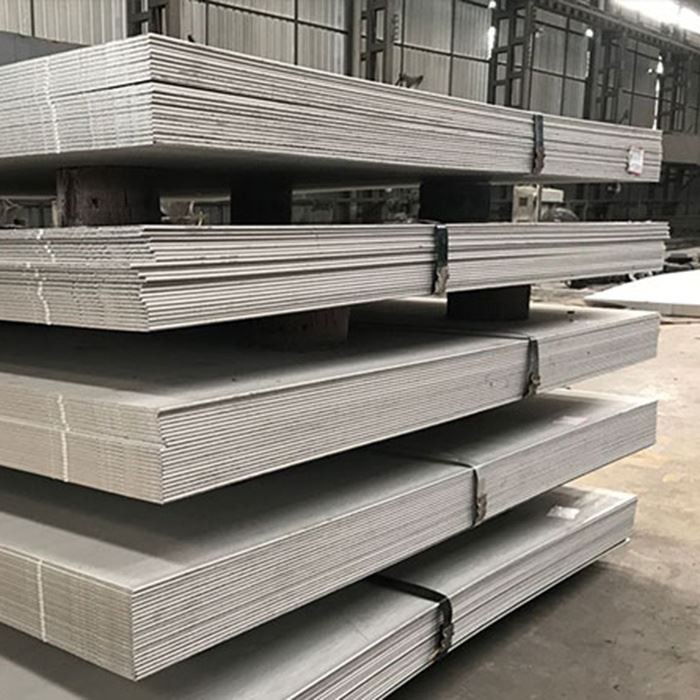

316 2b Ba Stainless Steel Sheet
Easy to fabricate and weld.
Can be easily cut, bent, and shaped to meet specific requirements.
Highly resistant to corrosion, rust, and staining.
Can withstand high temperatures and extreme weather conditions.
316 2b Ba stainless steel plate is a high-quality stainless steel plate with excellent corrosion resistance and high temperature strength, which is widely used in aerospace, health and chemical industry.
The following are the main specifications of 316 2b Ba stainless steel plate:
- Material: 316 stainless steel.
- Surface treatment: 2B/ BA.
- Size: board width 1000mm, 1219mm, board length 2000mm, 2438mm, 3048mm, 3657mm, etc.
- Thickness: 0.3mm-10mm.
- Weight: Depending on the thickness and length of the board, the weight is also different.
- Application: Often used in the production of chemical equipment, medical equipment, oil drilling equipment and other high requirements of mechanical equipment.
In short, 316 2b Ba stainless steel plate is a high-quality, multi-functional stainless steel plate, widely used in various fields, is an important part of modern industrial development.
Mechanical Properties
| ASTM A240 | Melting Range | Psi / Mpa - Tensile Strength | Psi / Mpa - Yield Strength (0.2%Offset) | Density | % Elongation |
|---|---|---|---|---|---|
| ASTM A240 Gr 316 | 1400 °C (2550 °F) | MPa – 515 Psi – 75000 |
MPa – 205 Psi – 30000 |
8.0 g/cm3 | 35 % |
Chemical Composition
| ASME SA 240 | C | Si | P | N | Mn | S | Mo | Cr | Ni |
|---|---|---|---|---|---|---|---|---|---|
| SA 240 316 | 0.08 max | 1.0 max | 0.045 max | 67.845 min | 2 max | 0.030 max | 2.00 – 3.00 | 16.00 – 18.00 | 11.00 – 14.00 |
316 Equivalent
| Grade | WERKSTOFF | UNS | BS | JIS | AFNOR | GOST | EN |
|---|---|---|---|---|---|---|---|
| SS 316 | 1.4401 / 1.4436 | S31600 | 316S31 / 316S33 | SUS 316 | Z7CND17‐11‐02 | – | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Scope of application
Surface
Processing Technology
