316 Metal Sheet
Excellent corrosion resistance
High strength and durability
Versatility
Low maintenance
Aesthetic appeal
316 metal sheet is a type of stainless steel sheet that contains 18% chromium, 10% nickel, and 2% molybdenum. The addition of molybdenum makes this type of stainless steel more resistant to corrosion, particularly in environments where there are high levels of salt or other corrosive materials. 316 metal sheet is commonly used in applications where strength, durability, and resistance to corrosion are important, such as marine and outdoor environments, food processing facilities, and medical equipment. This type of metal sheet can be easily formed and welded, and is available in a variety of finishes, including mirror and brushed.
1. Thickness: from 0.3 mm to 100 mm, suitable for different applications.
2. Size: Common sizes are 1000×2000 mm, 1219×2438 mm, etc., but also can be customized according to customer needs.
3. Surface treatment: 2B, BA, HL, NO.4 and other different surface treatment methods can be used to achieve different aesthetic effects.
4. Material: The main material composition is chromium, nickel, molybdenum, etc., with good corrosion resistance, high temperature resistance, high strength advantages.
5. Application fields: Widely used in chemical industry, shipbuilding, medical equipment, food processing and other fields, with good use effect.
Mechanical Properties
SS | Melting Point | Psi / Mpa - Tensile Stress | Density | Psi / Mpa - Yield Stress (0.2%Offset) | % Elongation |
---|---|---|---|---|---|
Stainless Steel 316 | 1400 °C (2550 °F) | 515 75000 |
8.0 g/cm3 | 205 30000 |
35 % |
Chemical Composition
SS | Ni | C | Cr | P | Si | N | S | Mn | Mo |
---|---|---|---|---|---|---|---|---|---|
Stainless Steel 316 | 11.00 – 14.00 | 0.08 max | 16.00 – 18.00 | 0.045 max | 1.0 max | 67.845 min | 0.030 max | 2 max | 2.00 – 3.00 |
Equivalent Name & Standard
UNS | Grade | WERKSTOFF | BS | JIS | GOST | AFNOR | EN |
---|---|---|---|---|---|---|---|
S31600 | Stainless Steel 316 | 1.4401 / 1.4436 | 316S31 / 316S33 | SUS 316 | - | Z7CND17-11-02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |

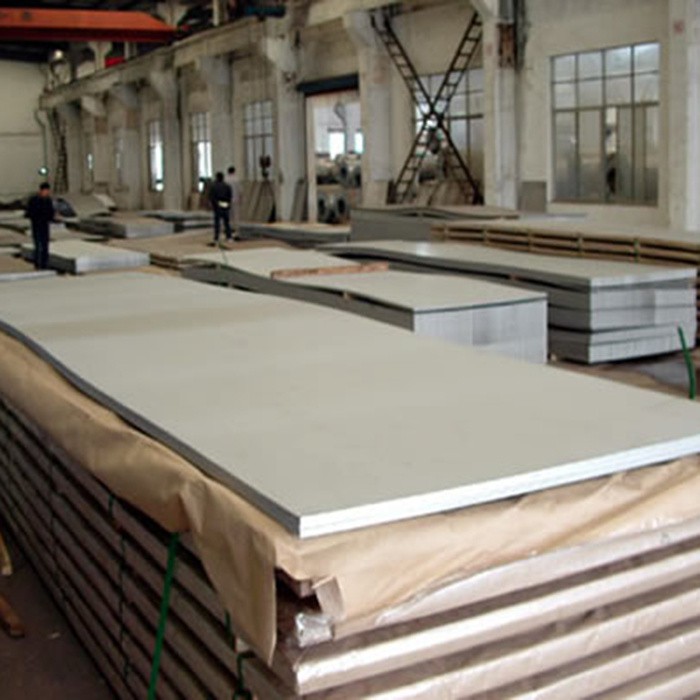

Product display
Quality Control
Scope of application
