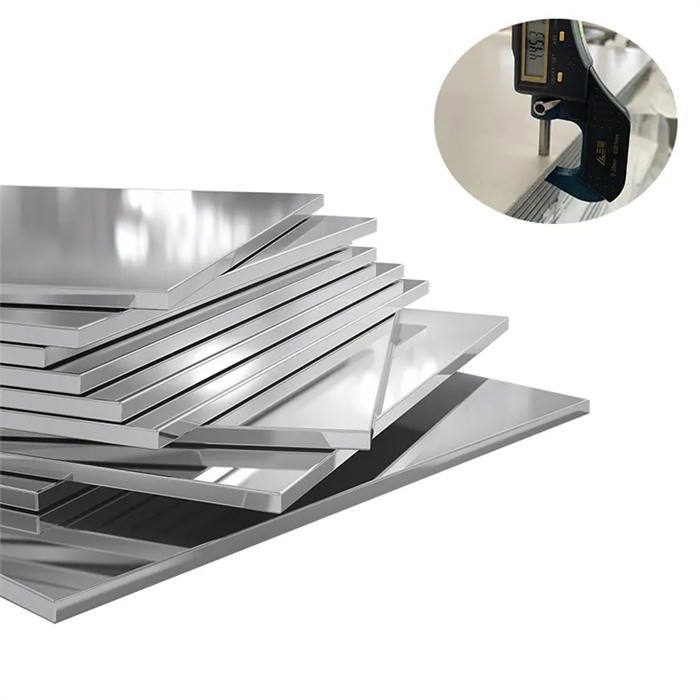

316 Ss Sheet Metal
316 stainless steel sheet metal is a high-quality material that offers a wide range of benefits for a variety of applications. This metal is a popular choice for its strength, durability, and corrosion resistance, making it suitable for use in a variety of industries.
One of the main benefits of 316 stainless steel sheet metal is its resistance to corrosion. This makes it an ideal choice for outdoor and marine applications, where it may be exposed to moisture, salt water, and other harsh environmental conditions.
Another benefit of 316 stainless steel sheet metal is its strength. It is a strong and durable material that is able to withstand high levels of stress and pressure, making it ideal for use in applications that require a high level of durability and reliability.
Additionally, 316 stainless steel sheet metal is highly versatile and can be used in a wide range of applications, including construction, automotive, aerospace, and medical industries. Its versatility and adaptability make it an excellent choice for a variety of projects and applications.
Specifications
1. Material: 316 Stainless steel
2. Thickness: Various options available ranging from 0.3 mm to 20 mm
3. Width: Standard width is 1000mm, but can also be customized
4. Length: Can be cut to any desired length according to customer requirement
5. Finish: Available in various finishes including mill finish, brushed finish, mirror finish, etc.
6. Corrosion Resistance: Offers excellent resistance to corrosion and oxidization due to presence of molybdenum
7. Weldability: Can be easily welded and fabricated without any difficulty
8. Strength: Has exceptional strength and durability, making it suitable for heavy-duty applications
9. Heat Resistance: Can withstand high temperatures without any deformation or corrosion
10. Versatility: Can be used in a wide range of applications such as construction, automotive, marine, chemical processing, medical equipment, etc.
| Standard | Technique | Surface finish | Grade | Thickness | Width*Length |
| JIS Aisi ASTM DIN EN bs | Hot rolled | No.1 | 201, 202, 301, 304, 304J1, 304L, 321, 316, 316L, 309S, 310S, 317L, 409L, 410, 410S, 420J1, 420J2, 430, 444, 441, 436, 439, 904L, 2520, 2205, 2507 etc |
4.0mm-16mm, 17-150mm |
1250*3000mm (4.1*10ft) 1500*3000mm (5*10ft) 1250*6000mm (4.1*19.6ft) 1500*6000mm (5*19.6ft) 1800*6000mm (5.9*19.6ft) 2000*6000mm (6.5*19.6ft) |
| Cold rolled | 2B | 201, 202, 301, 304, 304J1, 304L, 321, 316, 316L, 309S, 310S, 317L, 409L, 410, 410S, 420J1, 420J2, 430, 444, 441, 436, 439, 904L, 2520, 2205, 2507 etc | 0.2mm-3.0mm | 1000*2000mm (3.2*6.5ft) 1219*2438mm (4*8ft) 1500*3000mm (5*10ft) 1800 available 2000 available |
|
| No.4 | |||||
| Hairline | |||||
| 8K | |||||
| BA | |||||
| Hot rolled or cold rolled | embossed | similar to the above info. | |||
| colored | |||||
| Customized | We can customize surface treatment, grade, thickness, width, length etc according to customer's requirements. | ||||
| Send us inquiry to get cost-effective price and details within 1 hour. | |||||
Food grade stainless steel sheets are used for:
Food grade stainless steel sheets are widely used for their excellent properties that make them ideal for different applications in the food and beverage industry. Here are a few positive reasons why food grade stainless steel sheets are so popular:
1. Corrosion resistance: Food grade stainless steel sheets are highly resistant to corrosion from acids, alkalis, and most organic materials. This makes them an ideal material for use in food processing and storage applications.
2. Hygienic and easy to clean: Stainless steel has a smooth surface that does not harbor bacteria, making it easy to maintain a clean and hygienic environment. The smooth surface makes it easier to clean and sterilize, which is crucial for food safety.
3. Durability: Stainless steel sheets are incredibly durable and can withstand harsh conditions in food processing plants. They maintain their properties even in extreme temperatures, making them ideal for use in outdoor applications.
4. Versatility: Food grade stainless steel sheets can be fabricated into various shapes and sizes, making them suitable for many applications in the food industry. They can be used in kitchen equipment, processing and storage tanks, and even in conveyor systems.
5. Aesthetic appeal: Food grade stainless steel sheets offer an attractive and visually appealing finish that complements modern food processing and storage facilities. They come in different colors and textures that add to the aesthetics of a facility.
Composition ranges for 316L stainless steels.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316L | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 |
Mechanical properties of 316L stainless steels.
| Grade | Tensile Str (MPa) min |
Yield Str 0.2% Proof (MPa) min |
Elong (% in 50mm) min |
Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316L | 485 | 170 | 40 | 95 | 217 |
Typical physical properties for 316 grade stainless steels.
| Grade | Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| 316/L/H | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Grade specifications for 316L stainless steels.
| Grade | UNS No |
Old British | Euronorm | Swedish SS |
Japanese JIS |
||
| BS | En | No | Name | ||||
| 316L | S31603 | 316S11 | - | 1.4404 | X2CrNiMo17-12-2 | 2348 | SUS 316L |
