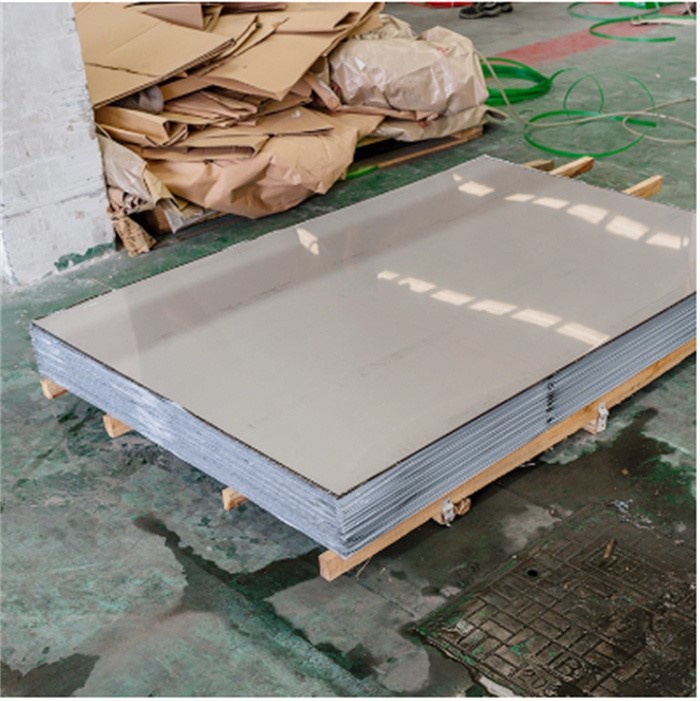

316 Stainless Steel Plate Sheet For Building Material
Easy to fabricate and weld.
Can be easily cut, bent, and shaped to meet specific requirements.
Highly resistant to corrosion, rust, and staining.
Can withstand high temperatures and extreme weather conditions.
The following are the specifications of 316 stainless steel sheet:
1. Plate thickness: usually between 0.3-100mm, can be adjusted according to customer needs.
2. Board width: generally between 1000mm and 2000mm, can also be adjusted according to customer needs.
3. Board length: generally between 2000-6000mm, can also be adjusted according to customer needs.
4. Surface treatment: Usually 2B, BA, HL, NO.1 and other surface treatment methods.
5. Processing method: The plate can be cut, bending, welding, processing and other ways.
6. Chemical composition: 316 stainless steel sheet is a kind of high purity stainless steel, chemical composition including chromium, nickel, molybdenum, etc., with good corrosion resistance.
The above specifications show that 316 stainless steel sheet is a high-quality, multi-functional building material that can meet a variety of building needs. At the same time, it has good corrosion resistance and can effectively improve the durability and life of buildings. Therefore, for those buildings that need long-term use, the use of 316 stainless steel sheet is a good choice.
Mechanical Properties
| ASTM A240 | Melting Range | Psi / Mpa - Tensile Strength | Psi / Mpa - Yield Strength (0.2%Offset) | Density | % Elongation |
|---|---|---|---|---|---|
| ASTM A240 Gr 316 | 1400 °C (2550 °F) | MPa – 515 Psi – 75000 |
MPa – 205 Psi – 30000 |
8.0 g/cm3 | 35 % |
Chemical Composition
| ASME SA 240 | C | Si | P | N | Mn | S | Mo | Cr | Ni |
|---|---|---|---|---|---|---|---|---|---|
| SA 240 316 | 0.08 max | 1.0 max | 0.045 max | 67.845 min | 2 max | 0.030 max | 2.00 – 3.00 | 16.00 – 18.00 | 11.00 – 14.00 |
316 Equivalent
| Grade | WERKSTOFF | UNS | BS | JIS | AFNOR | GOST | EN |
|---|---|---|---|---|---|---|---|
| SS 316 | 1.4401 / 1.4436 | S31600 | 316S31 / 316S33 | SUS 316 | Z7CND17‐11‐02 | – | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| Hot Rolled Stainless Steel Coil/Sheet | |
| Steel Grade | 301, 304, 304L, 316, 316L, 316Ti, 410S, 410, 405, 430 |
| Standard | ASTM A240/A240M, ASIffi SA-240, SA-24OM, JIS G 4304, EN 10028-7, EN 10088-2 |
| Thickness(mm) | 3. 0-14. 0 |
| Width(mm) | 1000-2000 |
| Length(mm) | Sheet:≤6000; Coil |
| Status | Solid Solution and Pickling; Annealing and Pickling |
| Cold Rolled Stainless Steel Coil/Sheet | |
| Steel Grade | 301, 304, 304L, 316, 316L, 316Ti, 321, 410S, 409, 409L,410, 420, 410S, 430, etc. |
| Standard | ASTM A240/A240M, ASME SA-240/SA-240M, JIS G 4305, EN10028-7, EN10088-2 |
| Thickness(mm) | 0.3-3.0 |
| Width(mm) | 1000-1219 |
| Length(mm) | 1000-2438 or Coil |
| Status | Solid Solution and Pickling; Annealing and Pickling |
| Cold Rolled Stainless Steel Coil/Sheet | |
| Steel Grade | 301, 304, 304L, 316, 316L, 316Ti, 321, 410S, 409, 409L,410, 420, 410S, 430, etc. |
| Standard | ASTM A240/A240M, ASME SA-240/SA-240M, JIS G 4305, EN10028-7, EN10088-2 |
| Thickness(mm) | 0.3-3.0 |
| Width(mm) | 1000-1219 |
| Length(mm) | 1000-2438 or Coil |
| Status | Solid Solution and Pickling; Annealing and Pickling |
