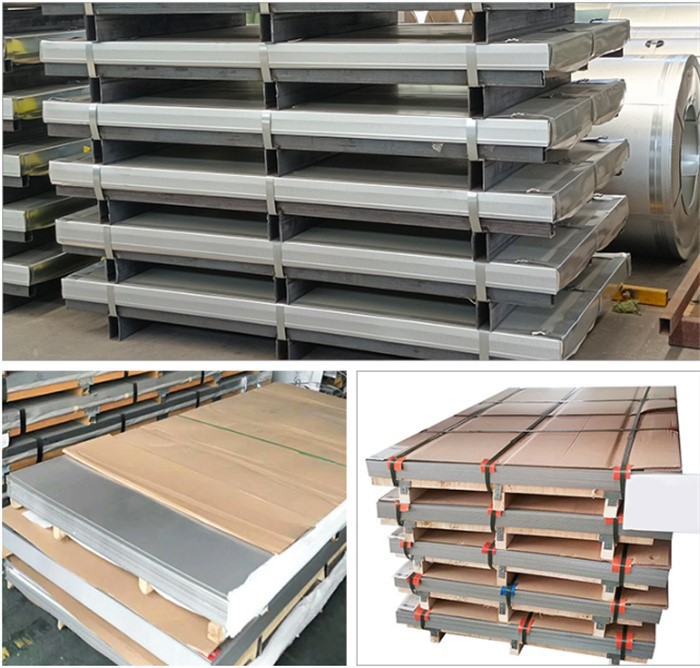

430 Stainless Steel Sheet For Sale
If you're looking for high-quality stainless steel sheets, 430 stainless steel is a great option. Not only is it durable and corrosion-resistant, but it also offers excellent heat resistance and good strength.
At our company, we pride ourselves on providing top-quality stainless steel sheets for our customers at a competitive price. Our 430 stainless steel sheets come in a variety of sizes and thicknesses, making it easy to find the perfect sheet for your project.
Whether you're working on a DIY project or need to replace worn-out sheets in your manufacturing facility, our 430 stainless steel sheets are sure to meet your needs. They're easy to work with and can be cut, welded, and formed to fit your specifications.
We understand that quality matters when it comes to stainless steel sheets, which is why we only source our materials from trusted suppliers. Our team of experts works tirelessly to ensure that each sheet meets our quality standards and is ready to be put to work.
430 Stainless Steel Plate Specification
| Material Grade | SS 430 |
|
Standard |
AISI, JIS, ASTM, EN, DIN, GB, |
| Type | Coil, Plate |
| Thickness | 0.5 upto 5 mm |
| Length | 500 mm - 6000 mm |
| Width | 1000 mm - 1250 mm |
| Surface Treatment | Cold Rolled |
|
Surface Finish |
BA/2B/NO.1/HL/8K/NO.4/6K |
Thickness difference between 430 Stainless Steel Sheet and Plate
When it comes to stainless steel, there are many different grades and types available on the market. Two of the most common types are 430 stainless steel sheet and plate. While these two materials are similar in many ways, there are some important differences that set them apart.
One of the primary differences between 430 stainless steel sheet and plate is their thickness. Stainless steel sheet is typically thinner and lighter than plate, making it ideal for a wider range of applications. Sheet can be bent and formed more easily than plate, and it is often used in applications where weight is a concern.
430 stainless steel sheet is available in a variety of thicknesses, ranging from 0.4mm to 3mm. This makes it ideal for a wide range of applications, from automotive parts and kitchen equipment to electronic components and medical devices. The thinner gauge of 430 stainless steel sheet also makes it more cost-effective than plate, which can be thicker and more expensive to produce.
430 stainless steel plate, on the other hand, is typically thicker and more durable than sheet. It is ideal for applications where strength and durability are a concern, such as in the construction of buildings, bridges, and other structures. Plate is often used in heavy-duty applications, where it can withstand the stresses of heavy machinery and other equipment.

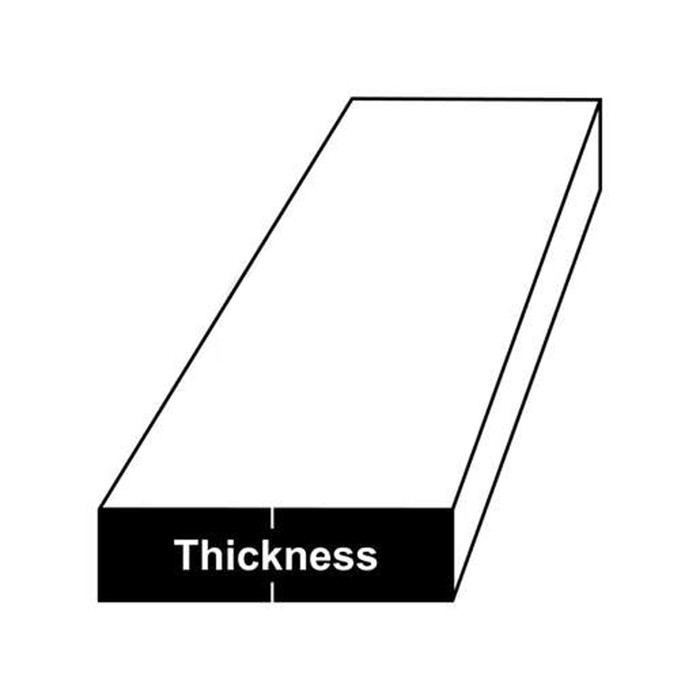

430 Stainless Steel Sheet Thickness
| 1 1/2" | 1 1/4" | 1 3/4" | 3 1/2" | 2 1/4" | 2" | 2 3/4" | 2 1/2" | 3" | 4" |
|---|---|---|---|---|---|---|---|---|---|
| 38.1mm | 31.8mm | 44.5mm | 88.9mm | 57.2mm | 50.8mm | 69.9mm | 63.5mm | 76.2mm | 101.6mm |
| 1/4" | 3/16" | 5/16" | 1" | 1/2" | 3/8" | 3/4" | 5/8" | 7/8" | 1 1/8" |
| 6.3mm | 4.8mm | 7.9mm | 25.4mm | 12.7mm | 9.5mm | 19mm | 15.9mm | 22.2mm | 28.6 |
SS 430 Plate Mechanical Properties
| Density range | 7.75 g/cm³ |
| Melting range | 1425-1510 °C |
| Thermal Expansion | 10.4 x10^-6 /K |
| Modulus of Elasticity GPa | 200 |
| Electrical Resistivity | 0.60 x10^-6 Ω .m |
| Thermal Conductivity | 23.9 W/m.K |
EN 10088-2:2005 Up to 8mm Thick Sheet
| Proof Strength | 260 MPa Min |
| Tensile Stress MPa | 450 - 600 |
| Elongation A50 mm | 20 Min % |
EN 10088-2:2005 Over 8mm to 13.5mm / Thick Plates
| Proof Stress MPa | 240 Min |
| Tensile Strength MPa | 450 - 600 MPa |
| Elongation A50 mm | 18 Min % |
EN 10088-2:2005 Over 13.5mm to 25mm Thick Plates
| Proof Stress MPa | 240 Min MPa |
| Tensile Strength MPa | 430 - 630 MPa |
| Elongation A50 mm | 20 Min % |
ASTM A240 Type 430 Plate Equivalent
| Grade | AISI | WERKSTOFF NR. | UNS | BS | AFNOR | IS | SIS | JIS | UNI |
| SS 430 | 430 | 1.4016 | S43000 | 430 S 17 | Z 8 C 17 | X10 Cr 17 | 142320 | SUS 430 | X12Cr17C |
SS 430 Sheet Chemical Composition
| Element | % Present |
|---|---|
| (C) | 0.0 - 0.08 |
| (Cr) | 16.00 - 18.00 |
| (Mn) | 0.0 - 1.00 |
| (Si) | 0.0 - 1.00 |
| (P) | 0.0 - 0.04 |
| (S) | 0.0 - 0.02 |
| (Fe) | Balance |
UNS S43000 Strip Application
Lashing Wire
Refrigerator Cabinet Panels
Linings for Dish Washers
Chimney Liners
Stove Trim Rings
Element Supports
Automotive Trim
Fasteners
