Alloy 2205 - Duplex Stainless Plate
Alloy 2205 is a duplex stainless steel plate that has become increasingly popular in recent years due to its unique properties and advantages over traditional stainless steel materials. This steel plate is composed of a mixture of ferritic and austenitic stainless steels, offering exceptional strength and corrosion resistance in comparison to other types of steel.
One of the primary benefits of Alloy 2205 is its superior resistance to corrosion and erosion. This steel plate is highly resistant to stress corrosion cracking, as well as pitting and crevice corrosion. It also has excellent resistance to general corrosion, making it an ideal choice for applications in harsh environments, such as chemical processing plants and offshore oil rigs.
In addition to its corrosion resistance, Alloy 2205 is also incredibly strong, making it an excellent choice for heavy-duty applications. It has a high yield strength and excellent ductility, meaning it can withstand significant stress without cracking or bending. This strength has made Alloy 2205 a popular material for structural components and piping systems in many industries.
Another advantage of Alloy 2205 is its low maintenance requirements. It requires little to no maintenance due to its corrosion resistance, and it is also highly resistant to rust and other types of deterioration. This results in lower repair and replacement costs over the life of the material, making it an excellent investment for many businesses.
Specification
| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| 2205 duplex Plate Length | 0-12mm or as required |
| ASTM A240 Type 2205 Plate Width | 0-2500mm or as required |
| UNS S32205 Plate Thickness | 0.3 to 1200 mm or as required |
| ASTM A240 Type 2205 Plate Process | Hot/ Cold Rolled |
| 2205 duplex Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM A240 Type 2205 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |

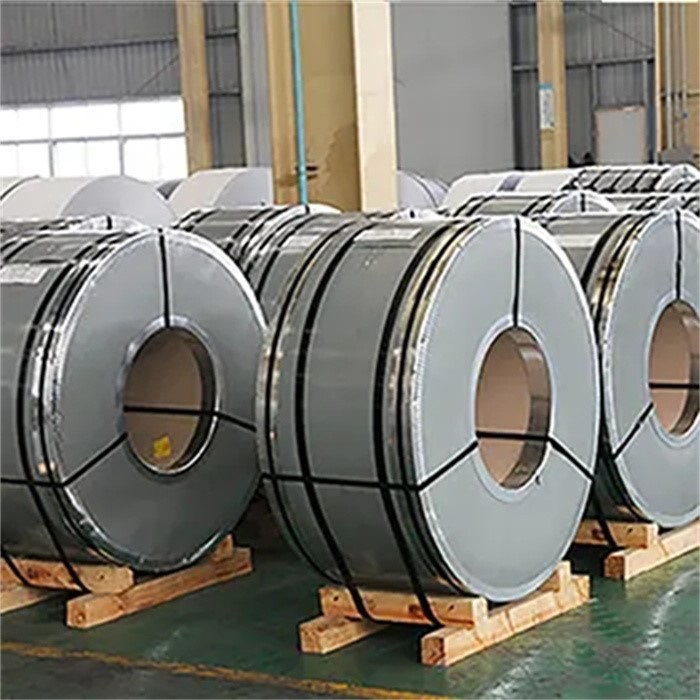

Stainless Steel Coil

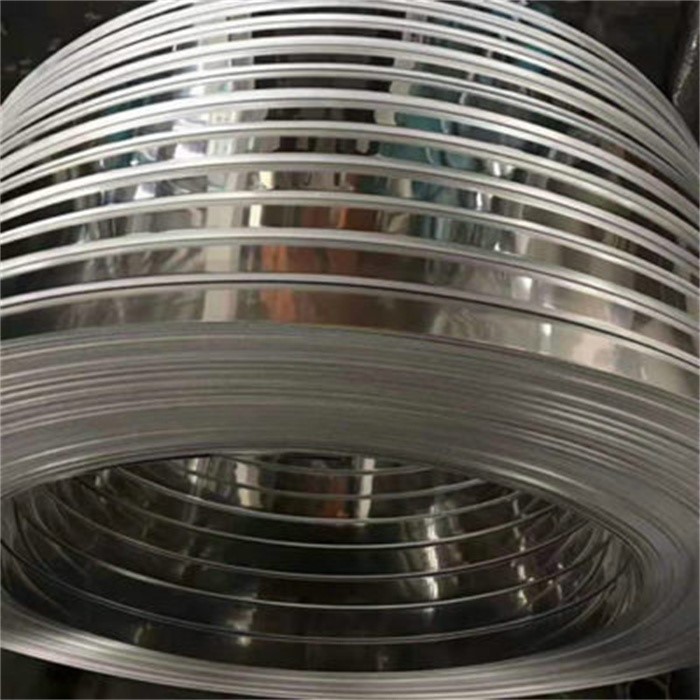

Stainless Steel Strip

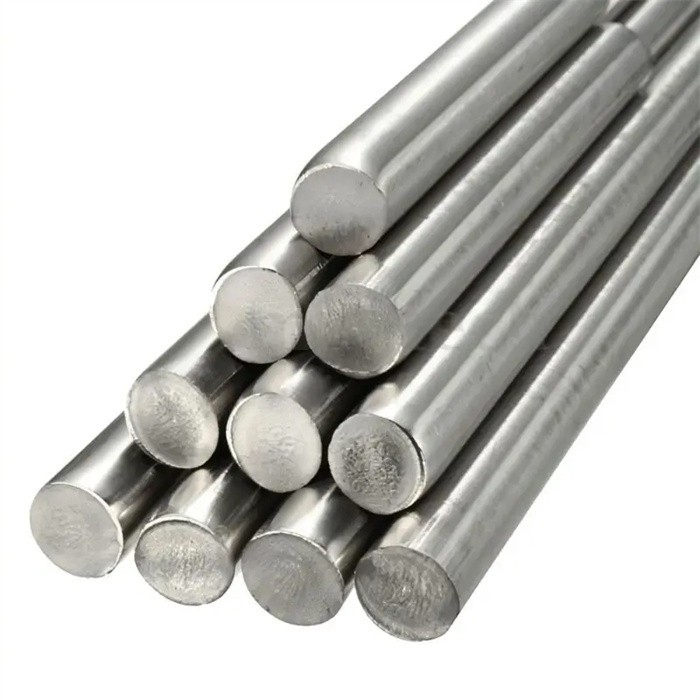

Stainless Steel Bar

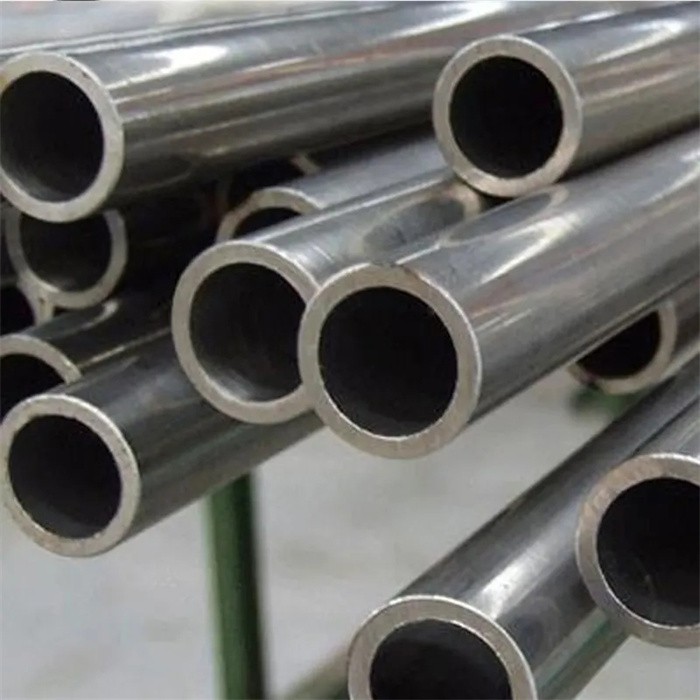

Stainless Steel Pipe & Tube

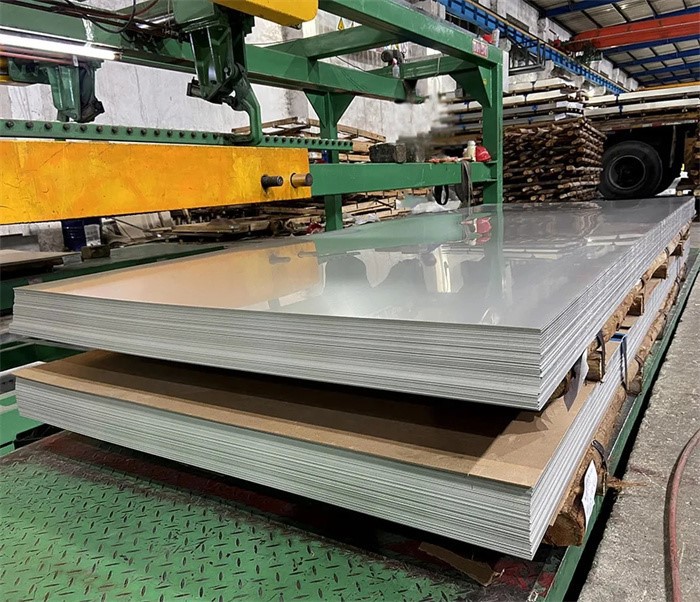

Sheet & Plate
Application Range
- Chemical processing:used in the chemical industry for handling corrosive chemicals, acids, and solvents. It is used in equipment such as tanks, heat exchangers, and piping systems.
- Oil and gas industry: The alloy's resistance to corrosion and high strength make it suitable for oil and gas exploration and production. It is used in offshore platforms, subsea pipelines, and equipment exposed to harsh environments.
- Desalination plants:used in desalination plants where seawater is converted into freshwater. It is used in heat exchangers, pumps, and piping systems due to its corrosion resistance and high strength.
- Pulp and paper industry: The alloy's resistance to corrosion and erosion makes it suitable for equipment used in the pulp and paper industry. It is used in digesters, bleach plants, and storage tanks.
- Food processing industry: used in the food processing industry for equipment that comes into contact with acidic or corrosive food products. It is used in storage tanks, mixing vessels, and piping systems.
- Construction industry: The alloy's high strength and corrosion resistance make it suitable for various construction applications. It is used in structural components, bridges, and architectural features.
- Water treatment plants: used in water treatment plants for its resistance to corrosion and erosion caused by chemicals and water flow. It is used in pumps, valves, and filtration systems.
- Marine industry: The alloy's resistance to corrosion in seawater makes it suitable for marine applications. It is used in shipbuilding, offshore structures, and marine equipment.
- Pharmaceutical industry:used in the pharmaceutical industry for equipment that requires resistance to corrosion and cleanliness. It is used in reactors, storage vessels, and piping systems
