Duplex 2205 Stainless Steel

Duplex 2205 Stainless Steel

2205

Category: Duplex steel, precipitation hardening steel

Brand number :2205

Conventional thickness :246 8 10 12 14 16 18 20 22 24 26

Conventional width :1219 1500

Conventional length :2438 2500 6000

Origin: TISCO, Baosteel, etc.

Phone number: +8617611015797

Email：frank@jinblai.com

Whatsapp:+8617611015797
Wechat:+8617611015797

Physical property

Density :7.69g/cm3

Melting point :1385-1443℃

Features:

The yield strength of 2205 duplex stainless steel is twice that of austenitic stainless steel, which allows designers to reduce weight when designing products, making this material less than 316 and 317L

More price advantage. 2205 resists stress corrosion cracking better than 304 and 316L, and also resists spot corrosion and crevice corrosion caused by chloride. This kind of biphase rust proof

Steel is particularly suitable for environments where chlorides and hydrogen sulphide are present such as Marine applications and oil and gas production.

Applications:

Oil and gas pipelines, pipe parts, heat exchangers, pulp and paper industry bleaching equipment, storage and treatment systems, tank ships, car storage tanks, chemical industry pressure vessels, storage

Storage tank, high pressure pipeline, heat exchanger, food processing equipment.

Chemical composition

C≤ 0.030Mn ≤ 2.00Si ≤ 1.00p ≤ 0.030S ≤ 0.020Cr 22.0 ~ 23.0Ni 4.5 ~ 6.5Mo3.0 ~ 3.5N0.14 ~ 0.20(Austenitic ferritic type)

Performance supplement: Main ingredients: 22Cr-5.3Ni-3.2Mo-0.16N; National standards: NAS 329J3L, UNS S32205/S31803, DIN/EN 1.4462, ASTM A240, ASME SA-240; Mechanical properties: Tensile strength: σb≥640Mpa; Elongation: δ≥25%; Typical working conditions: 20% dilute sulfuric acid, below 60℃, annual corrosion rate <0.1mm; Welding wire: ER2209.

1、chemical component　（JIS G 4305- 005） (wt%)

chemical component	C	Si	Mn	P	S	Cr	Ni	Mo	N
standard	≤0.03	≤1.00	≤2.00	≤0.04	≤0.03	21.0~24.0	4.5~6.5	2.5~3.5	0.08~0.2
ordinary	0.025	0.6	1.5	0.026	0.001	22.5	5.8	3.0	0.16

2、performance（JIS G 4305-2005）

differentiate	mechanical property	remark
Ys (Mpa)	Ts (Mpa)	El (%)	Hv	2.0t/2B
≥ 450	≥ 620	≥ 25%	≥ 18	≤ 320
500	670	35%	27	280

3、physical properties

density (g/cm)	magnetism	specific heat (J/g.C)	heat conductivity 100C(W/m.	The coefficient of thermal expansion
7.8	have	0.45	19.0	13.7

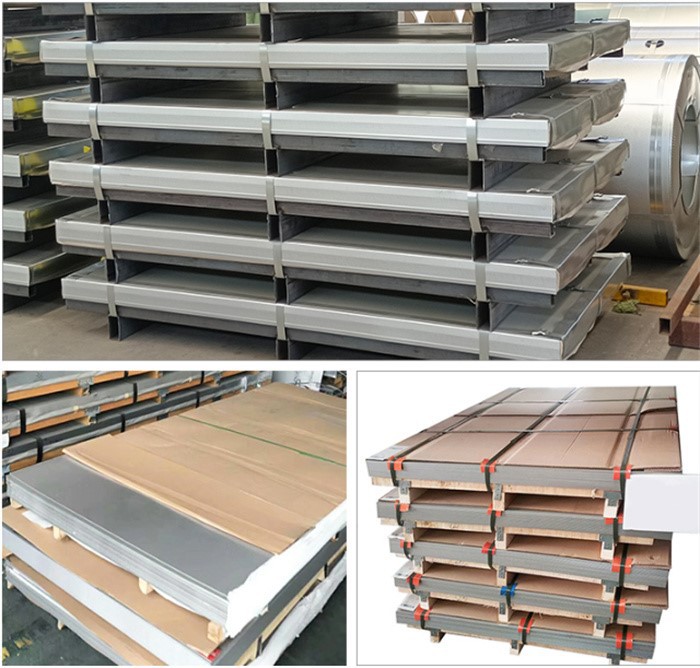

Packing and Shipping
