Hot Cold Rolled 316 Stainless Steel Plate Sheet Coil Strip
Easy to fabricate and weld.
Can be easily cut, bent, and shaped to meet specific requirements.
Highly resistant to corrosion, rust, and staining.
Can withstand high temperatures and extreme weather conditions.
Before introducing the product specifications of Hot Cold Rolled 316 Stainless Steel Plate Sheet Coil Strip, it is necessary to understand what is 316 stainless steel.
316 stainless steel is a high-quality stainless steel material, with excellent corrosion resistance and high temperature resistance, widely used in chemistry, shipbuilding, medical, food processing and other fields.
Hot Cold Rolled 316 Stainless Steel Plate Sheet Coil Strip Product specifications are as follows:
1. Sheet thickness: 0.3mm-100mm
2. Width size: 1000mm-2000mm
3. Length: 2000mm-6000mm
4. Cold rolled coil thickness: 0.3mm-3.0mm
5. Hot rolled coil thickness: 3.0mm-10.0mm
6. Gold plating thickness: 14um-25um
In addition to the above specifications, Hot Cold Rolled 316 Stainless Steel Plate Sheet Coil Strip products also have the following advantages:
1. High strength: with high strength and rigidity, it can withstand large loads and pressures.
2. Good corrosion resistance: It has excellent corrosion resistance and can be used in harsh environments for a long time without rust.
3. Exquisite appearance: The surface is smooth and flat, with silver luster and noble temperament.
4. Easy to process: easy to process into various shapes and sizes to meet the needs of different customers.
316 Stainless Steel Chemical Composition (VS 304)
|
Elements (%) |
304 (S30400) |
304L (S30403) |
316 (S31600) |
316L (S31603) |
|---|---|---|---|---|
|
Carbon, Max |
0.07 |
0.030 |
0.08 |
0.030 |
|
Manganese, Max |
2.00 |
2.00 |
2.00 |
2.00 |
|
Phosphorus, Max |
0.045 |
0.045 |
0.045 |
0.045 |
|
Sulphur, Max |
0.030 |
0.030 |
0.030 |
0.030 |
|
Silicon, Max |
0.75 |
0.75 |
0.75 |
0.75 |
|
Chromium |
17.5-19.5 |
17.5-19.5 |
16.0-18.0 |
16.0-18.0 |
|
Nickel |
8.0-10.5 |
8.0-12.0 |
10.0-14.0 |
10.0-14.0 |
|
Mo |
... |
... |
2.00-3.00 |
2.00-3.00 |
|
Nitrogen |
0.10 |
0.10 |
0.10 |
... |
316 vs 304 Mechanical Properties
|
Mechanical Properties |
304 (S30400) |
304L (S30403) |
316 (S31600) |
304L (S30403) |
|---|---|---|---|---|
|
Tensile Strength Min |
75 Ksi [515 Mpa] |
70 Ksi [485 Mpa] |
75 Ksi [515 Mpa] |
70 Ksi [485 Mpa] |
|
Yield Strength Min 0.2% offset |
30 Ksi [205 Mpa] |
25 Ksi [170 Mpa] |
30 Ksi [205 Mpa] |
25 Ksi [170 Mpa] |
|
Yield Strength Min 1% offset |
36 Ksi [250 Mpa] |
35 Ksi [240 Mpa] |
38 Ksi [260 Mpa] |
38 Ksi [260 Mpa] |
|
Elongation Min |
40% |
40% |
40% |
40% |
|
Hardness Max |
92 HRB |
92 HRB |
95 HRB |
95 HRB |

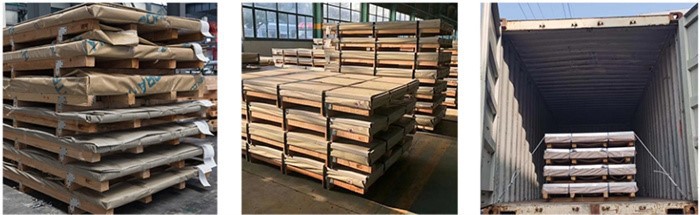

Packing
Application
Available Surface
