Ss310 Plate
SS310 is a stainless steel material with high temperature oxidation resistance and corrosion resistance. It is widely used in petroleum, chemical, pharmaceutical and other industries, especially in heat treatment at high temperatures. SS310 has good mechanical properties and oxidation resistance, and can withstand the corrosion of high temperature and corrosive media.
SS310 plate is an important form of SS310 stainless steel material, and its application range is also very wide. In the petroleum, chemical, pharmaceutical and other industries, SS310 plate is widely used in the manufacture of various containers, reactors, pipelines, furnaces and other equipment.
Compared with other materials, SS310 has excellent oxidation resistance and is not susceptible to high-temperature oxidation. Its stability and corrosion resistance at high temperatures are unmatched by other materials. Therefore, SS310 plates are widely used in equipment that works at high temperatures.
In addition, SS310 sheet also has good processing properties, and can be easily processed cold and hot. Its material is strong and durable, so it has a long service life.
310 Stainless Steel Sheet Specification
| Item | 310 Stainless Steel Sheet(Hot rolled, cold rolled) |
| Standard | ASTM A240, JIS4304-2005, ASTM A167, EN10088-2-2005, GB/T3280-2007, etc |
| Material | 310 Stainless Steel Sheet, 310S Stainless Steel Sheet, SS 310 Sheet, SS 310S Sheet, ASTM A240 Sheet, ASME SA240 Sheet, AMS 5521 Sheet, AMS 5521 plate , AMS 5521 Strip |
| Surface | the surface and finish of 310 Stainless Steel Sheet: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Thickness | 0.3mm~200mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Package | Standard export package, suit for all kinds of transport, or as required. |
| Export to | Indonesia, Malaysia, Singapore , Saudi Arabia, Qatar , UAE, Iran, Iraq, Oman, South Africa, Nigeria, Kenya, Italy, UK |

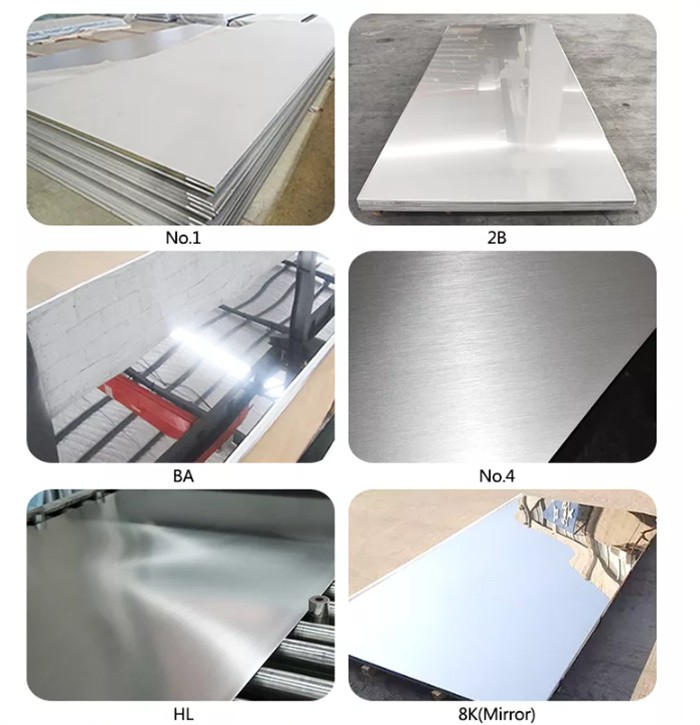

Finishes Of 310 Stainless Steel Sheet
1. Mirror Finish: This finish is also known as a bright finish. It has a highly reflective and shiny surface that is achieved by polishing the metal with abrasive materials. Mirror finish gives a premium look to 310 Stainless Steel Sheet and is commonly used in architectural applications, decorative items, and mirrors.
2. Satin Finish: Satin finish has a smooth and lustrous surface with a low-gloss matte appearance. It is obtained by brushing the metal with a specialized abrasive pad to create a fine-grained texture. Satin finish is widely used in commercial and residential appliances, industrial machinery, and kitchen equipment.
3. Brushed Finish: This finish creates a distinctive pattern on the surface of the metal by rubbing it with a wire brush or sandpaper. The brushed finish has a soft, matte appearance that hides scratches and fingerprints on the surface. It is commonly used in signage, furniture, and automotive parts.
4. Bead Blasted Finish: Bead blasting is a process where small glass beads are blasted onto the surface of the metal to create a uniform texture. The result is a smooth, matte finish that is ideal for slip-resistant flooring, architectural cladding, and decorative items.
5. Embossed Finish: This finish creates a raised pattern on the surface of the metal by pressing it with a die stamp. The embossed finish gives a decorative look to 310 Stainless Steel Sheet and is commonly used in roofing, wall cladding, and elevator interiors.
|
Standards |
Designation |
|
ASTM |
A 240 |
|---|
Stainless Steel 310 Grade Specification Comparision
|
Grade |
UNS No |
Old British |
Euronorm |
Swedish SS |
Japanese JIS |
||
|
BS |
En |
No |
Name |
||||
|
310 |
S31000 |
310S24 |
- |
1.4840 |
X15CrNi25-20 |
- |
SUH 310 |
|
310S |
S31008 |
310S16 |
- |
1.4845 |
X8CrNi25-21 |
2361 |
|
Chemical Properties Of 310 Stainless Steel Sheet:
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
310 |
min. max. |
- 0.25 |
- 2.00 |
- 1.50 |
- 0.045 |
- 0.030 |
24.0 26.0 |
- |
19.0 22.0 |
- |
|
310S |
min. max. |
- 0.08 |
- 2.00 |
- 1.50 |
- 0.045 |
- 0.030 |
24.0 26.0 |
- |
||
Mechanical Properties Of 310 Stainless Steel Sheet:
The mechanical properties of grade 310 Stainless Steel Sheet are displayed in the following table.
|
Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) |
||||
|
310 |
515 |
205 |
40 |
95 |
217 |
|
310S |
515 |
205 |
40 |
95 |
217 |
Physical Properties Of 310 Stainless Steel Sheet:
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion(μm/m/°C) |
Thermal Conductivity(W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
310/S |
7750 |
200 |
15.9 |
16.2 |
17.0 |
14.2 |
|||
