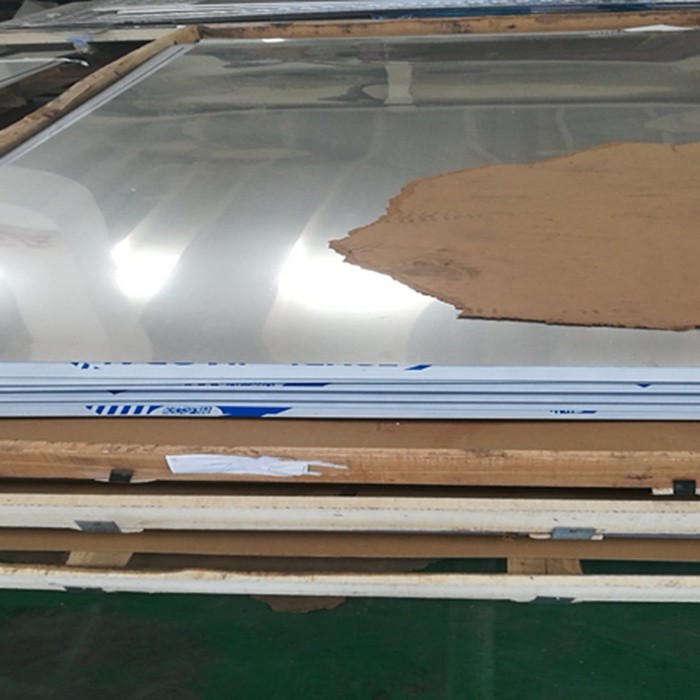

Material: 316 stainless steel
Surface treatment: 2B
Relative density: 7.98
Tensile strength: ≥520MPa
Yield strength: ≥205MPa
Elongation: ≥40%
Hardness: ≤187HBW

Send Inquiry

Product Introduction

Stainless steel 316, also known as UNS S31600, is a commonly used austenitic stainless steel. It has a higher resistance to corrosion than other grades of stainless steel, making it ideal for use in marine environments, medical equipment, and chemical processing applications. It is also known for its excellent high-temperature strength and resistance to scaling and pitting. Stainless steel 316 contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, which gives it its superior corrosion resistance properties. It is a popular choice for a wide range of industrial applications due to its durability, strength, and resistance to corrosion.

High strength: tensile strength of stainless steel 316 ≥515MPa, compressive strength ≥205MPa. This means that it can withstand the physical requirements of high pressure, high temperature and high strength in extreme environments and situations.
Strong corrosion resistance: It has excellent corrosion resistance, especially the corrosion resistance of seawater and acidic and alkaline solutions is significantly higher than that of stainless steel 304. This property makes stainless steel 316 one of the preferred materials for the design and manufacture of processing tower tanks, hydrogenation reactors, ovens, chemical equipment and other instruments.
good oxidation resistance: stainless steel 316 and air, water, acid and other media contact, its surface will form a dense chromium oxide film (that is, "oxide") to prevent subsequent oxidation reaction, with very good oxidation resistance.
Excellent processing performance: stamping, formability, weldability and other good, can use a variety of processing methods, such as sheet metal processing, stamping, forming, welding, etc., can be manufactured according to different design requirements.
Aesthetics: fine surface gloss, good color uniformity, can provide a variety of surface treatment, such as polishing, polishing, drawing, etc., so as to achieve a variety of artistic modeling and aesthetic effects.

CHEMICAL COMPOSITION

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
SS 316	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	16 – 18	2 – 3	11 – 14	67.845 min
SS 316L	0.035 max	2.0 max	1.00 max	0.045 max	0.030 max	16 – 18	2 – 3	10 – 14	68.89 min
SS 316Ti	0.08 max	2 max	0.75 max	0.045 max	0.030 max	16 – 18	2 – 3	10 – 14	68.395 min
SS 316H	0.10 max	2.0 max	0.75 max	0.045 max	0.030 max	16 – 18	2 – 3	10 – 14	68.89 min
