Abrasion Resistant Steel Plate NM300
1. High strength and hardness
2. Excellent wear resistance
3. Good toughness and impact resistance
4. Ability to withstand high stress and abrasive environments
5. Easy to machine and weld
6. Long service life
Abrasion resistant steel plate NM300 is a high-strength wear resistant steel plate with high wear resistance. It has good weldability, bending and impact resistance. It has high toughness and excellent resistance to sliding wear, impact wear and wear-reducing effect. It can be used in high wear areas such as mining equipment, cement plants and earthmoving equipment. The hardness of this steel plate ranges from 300-350HBW, making it very durable and effective in high wear situations. NM300 steel plate is typically used in mining, construction and manufacturing applications where heavy wear and tear are common.
- Thickness range: 3mm-120mm
- Width range: 1000mm-3200mm
- Length: 2000mm to 12000mm
- Chemical composition: Carbon content less than 0.25%, silicon content less than 0.80%, manganese content less than 1.50%, phosphorus content less than 0.040%, sulfur content less than 0.050%
- Tensile strength: The minimum value is 1200 MPa
- Impact strength: The minimum value is 20 J
- Surface treatment: customized and machined
|
Grade comparison |
|
|
GB |
NM300,NM360,NM400,NM450,NM500 |
|
SS |
HARDOX400,HARDOX450,HARDOX500,HARDOX600 |
|
DIN |
XAR400,XAR450,XAR500,XAR600,Dillidur400,Dillidur500 |
|
NBN |
QUARD400,QUARD450,QUARD500 |
|
NF |
FORA400,FORA500,Creusabro4800,Creusabro8000 |
|
JIS |
JFE-EH360, JFE-EH400,JFE-EH500,WEL-HARD400,WEL-HARD500 |
|
SFS |
RAEX400,RAEX450,RAEX500 |
Chemical Composition
| Commodity | C | Si | Mn | P | S | Cr | Mo | Ni | B |
| NM360 | ≤0.25 | ≤0.70 | ≤1.30 | ≤0.025 | ≤0.010 | ≤1.4 | ≤0.50 | ≤1.00 | ≤0.004 |
|
Mechanical Properties |
||||||
|
Material |
Thickness(mm) |
Strength of extension |
Elongation |
Impact energy(vertical) |
BH(Brinell Hardness) |
|
|
ºC |
Akv/J |
|||||
|
NM300 |
6-80 |
≥1000 |
≥14 |
-20 |
≥24 |
270-300 |
|
NM360 |
6-80 |
≥1100 |
≥12 |
-20 |
≥24 |
330-390 |
|
NM400 |
6-80 |
≥1200 |
≥10 |
-20 |
≥24 |
370-430 |
|
NM450 |
6-80 |
≥1250 |
≥7 |
-20 |
≥24 |
420-480 |
|
NM500 |
6-70 |
/ |
/ |
/ |
/ |
≥470 |
|
NM550 |
6-70 |
/ |
/ |
/ |
/ |
≥530 |

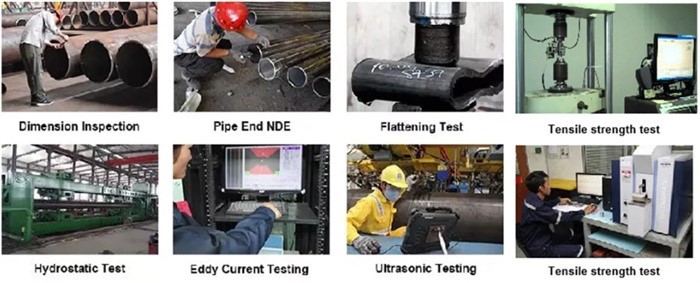

Product testing

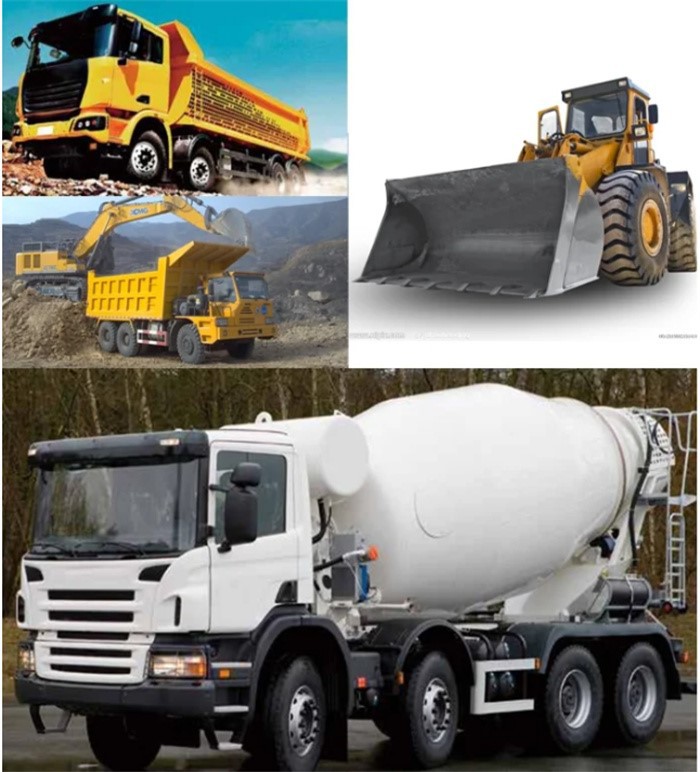

Application
