Mn13 Steel Plate X120mn12 Steel Shee 1.3401
Thickness: 3mm-200mm
Width: 1000mm-3000mm
Length: 2000mm-12000mm
Surface treatment: hot rolling and cold rolling
Tensile strength: ≥685MPa
Yield strength: ≥430MPa
Elongation: ≥35%
Hardness: HB240-320
mn13 steel plate x120mn12 steel shee 1.3401
MN13 steel plate is a kind of high strength wear-resistant steel material, its surface hardness can reach HB380-420. The product is made of high-purity steel with extremely high wear and impact resistance, and can maintain its stable performance under harsh working conditions. The following are some of the main specifications of MN13 steel plate:
1. Thickness: 2-100mm
2. Width: 1000-2200mm
3. Length: 2000-12000mm
4. Surface status: polishing, frosting, painting, grinding, etc
MN13 steel plate is commonly used in heavy machinery equipment such as excavators, loaders and mining equipment wear-resistant parts, such as buckets, shovel knives, plow knives, tool heads, etc. MN13 steel plate is suitable for a variety of different applications, such as metallurgical industry, mining industry, coal industry, etc. Its excellent wear resistance and impact resistance can reduce the downtime and maintenance costs of equipment, and improve the service life and stability of equipment.
Mechanical properties
|
Tensile Strength |
Elongation |
20°C Impact Resistance |
Initial Hardness(HB) |
Hardness after Hardened(HB) |
180°old Bending Test |
|
≥900MPa |
≥40% |
ak≥50(J) |
190-250 |
≥300 |
Qualified |
Chemical composition (%)
|
Brand |
C |
Si |
Mn |
P |
S |
|
Mn13 |
0.90-1.20 |
0.30-0.80 |
11.00-14.00 |
≤0.035 |
≤0.030 |

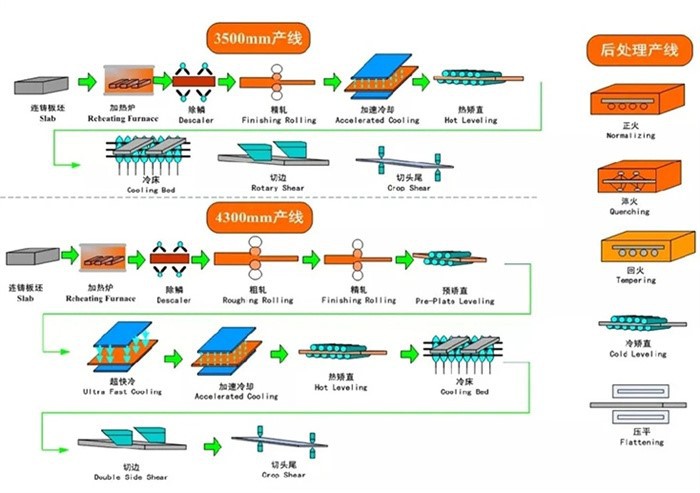

Production process
Application
Quality Inspection
