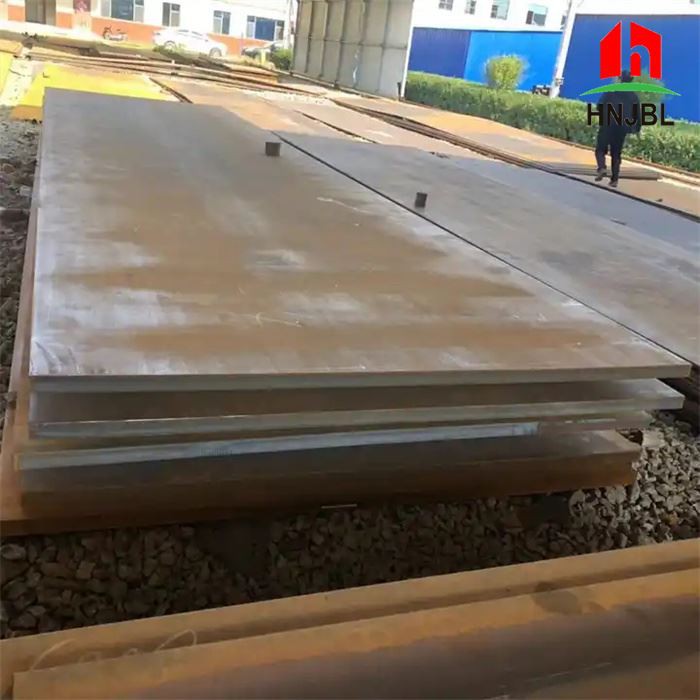

MN13 Steel Plate
Characteristics of products
High abrasive resistance
Strong plasticity and impact toughness
It is work hardening steel - the more impact and abrasion it gets the harder the surface becomes.
Steel stays ductile underneath - only surface layer hardens.
With continued impact steel can harden to 500HB above.
When rolled - never brittle.
Low friction properties.
Non-magnetic.
Standard-GB, ASTM, JIS, DIN
-American standard- ASTM A128
-Europe standard- X120Mn12
-JIS Standard- SCMnH11
-China National Standard- GB Mn13
- DIN Standard- 1.3401
-AS Standard-K700
Chemical composition(%)
|
Brand |
C |
Si |
Mn |
P |
S |
|
X120Mn12/Mn13 |
0.90-1.20 |
0.30-0.80 |
11.00-14.00 |
≤0.035 |
≤0.030 |
Mechanical Properties
|
Tensile Strength |
Elongation |
20°C Impact Resistance |
Initial Hardness(HB) |
Hardness after Hardened(HB) |
180°old Bending Test |
|
≥900MPa |
≥40% |
ak≥50(J) |
190-250 |
≥300 |
Qualified |
Machining Center
Product Application
