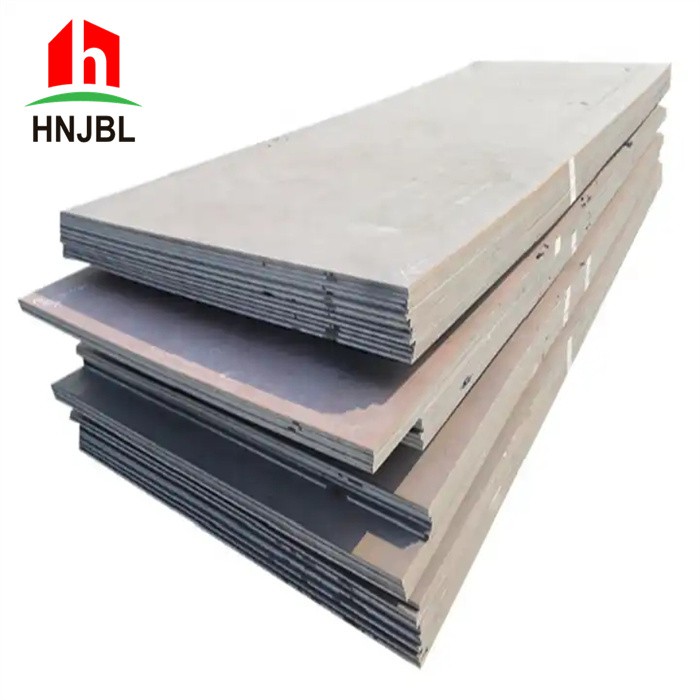

NM 400 Abrasion Resistant Steel Plates

NM 400 Abrasion Resistant Steel Plates

chemical component

mechanical property

NM400 steel plate production and cutting process:

Production process: primary refining →LF refining →VD treatment → continuous casting (die casting) → cleaning, heating → rolling → (stacking) → surface inspection → Batch → inspection → Heat treatment → cutting sampling → Performance inspection → storage.

Cutting process: NM400 steel plate factory inspection after the performance indicators meet the requirements in accordance with the cutting processing technology, can be cut processing and drawings, generally the thickness of the steel plate is not greater than 20mm, the preferred choice of CNC plasma cutting or CNC laser cutting, if the thickness of the steel plate is greater than 30mm, usually will choose CNC flame cutting, Cutting accuracy and time can be controlled.

1, the steel plate cutting method is suitable for cold cutting and hot cutting. Cold cutting includes water jet cutting, shearing, sawing or abrasive cutting; Thermal cutting includes oxygen fuel flame cutting (hereinafter referred to as "flame cutting"), plasma cutting and laser cutting.

2, cutting method: Through the relevant process test, master the general characteristics of various cutting methods and cutting thickness range of steel plate.

3, the flame cutting method of high grade wear-resistant steel is as simple as the cutting of ordinary low carbon and low alloy steel. When cutting wear-resistant steel thick plate, you need to pay attention!! With the increase of the thickness and hardness of the steel plate, the crack tendency of the cutting edge increases. In order to prevent the generation of steel plate cutting cracks, the following recommendations should be followed when cutting:

Cutting cracks: steel plate cutting cracks are similar to hydrogen induced cracks during welding, and if cracks occur on the cutting edge of the steel plate, they will appear within 48 hours to several weeks after cutting. Therefore, the cutting crack is a delayed crack, and the greater the thickness and hardness of the steel plate, the greater the cutting crack.

Preheat cutting: The most effective way to prevent steel plate cutting cracks is to preheat before cutting. Before flame cutting, the steel plate is usually preheated, and the preheating temperature mainly depends on the quality grade and plate thickness of the steel plate, as shown in Table 2. The preheating method can be carried out by flame burner, electronic heating pad, or heating furnace. In order to determine the preheating effect of the steel plate, the required temperature should be tested on the surface of the hot spot.

Note: Special attention should be paid to preheating, so that the interface of the steel plate should be evenly heated, so as to avoid local overheating in the area in contact with the heat source.

Low-speed cutting: Another way to avoid cutting cracks is to reduce the cutting speed. If full plate preheating is not possible, local preheating can be used instead. The use of low speed cutting methods to prevent cutting cracks, its reliability is not as good as preheating. It is recommended to preheat the cutting belt with flame gun cavitation several times before cutting, and the preheating temperature is about 100°C. The maximum cutting speed depends on the grade and thickness of the steel plate

Special note: The combination of preheating and low speed flame cutting methods can further reduce the incidence of cutting cracks.

Slow cooling requirements after cutting: regardless of whether the cutting is preheated or not, the slow cooling after cutting the steel plate will effectively reduce the risk of cutting cracks. If it is stacked with warm parts after cutting, it can also be covered with thermal insulation blankets, and slow cooling requires cooling to room temperature.

Heating requirements after cutting: For the cutting of wear-resistant steel plates, heating (low temperature tempering) is taken immediately after cutting, which is also an effective method and measure to prevent cutting cracks. Steel plate thickness through low temperature tempering treatment, can effectively eliminate cutting stress (low temperature tempering process; Moisturizing time 5min/mm)

For the method of heating after cutting, the heating method of burning gun, electronic heating blanket and mourning heat furnace is also used for heating after cutting.

4, reduce the measures of steel softening steel softening characteristics mainly depend on its chemical composition, microstructure and processing methods. For thermally cut parts, the smaller the part, the greater the risk of softening the whole part. If the steel plate temperature exceeds 200-250°C, the hardness of the steel plate will be reduced.

Cutting method: Steel plate When cutting small parts, the heat supplied by the welding torch and preheating will accumulate in the workpiece. The smaller the cutting size, the size of the cutting workpiece shall not be less than 200mm, otherwise the workpiece will have the risk of softening. The best way to eliminate the risk of softening is cold cutting, such as water jet cutting. If thermal cutting must be used, there are limited options for plasma or laser cutting. This is because the flame cutting provides more heat to the workpiece and therefore increases the temperature of the workpiece.

Underwater cutting method: An effective method to limit and reduce the extent of the softening zone, using water to corrugated the steel plate and the cutting surface during the cutting process. Therefore, the steel plate can be cut in water, or it can be cut by spraying water to the cutting surface. Plasma or flame cutting is available using the underwater cutting method.

Product application

Production Process

Product Packaging
