The bimetallic composite steel plate is composed of two parts: low carbon steel plate and alloy layer, and the anti-wear layer generally accounts for 1/3-1/2 of the total thickness. When working, the matrix provides comprehensive properties such as strength, toughness and plasticity to resist external forces, and the layer provides performance to meet the requirements of working conditions.

Send Inquiry

Product Introduction

Hardness difference

The hardness value of nm400 steel plate is about 360-420.

The hardness value of NM500 wear-resistant plate is about 500.

NM600 wear-resistant plate hardness value in 580-625,

the hardness level is not the same NM600 hardness is higher, more wear-resistant and more expensive.

Product application is different

The material is NM500 HARDOX500/550/600 high strength steel plate with a thickness of 20-60mm:

Construction machinery: loader, bulldozer, excavator bucket plate, side blade plate, bucket bottom plate, blade, rotary drilling rig drill pipe.

The material is NM360/400 steel plate with a thickness of 10-30mm:

Construction machinery: cement pusher tooth plate, concrete mixing floor, mixer lining board, dust collector lining board, brickmaking machine mold board

NM400 abrasion resistant steel plate and NM500

product-700-700

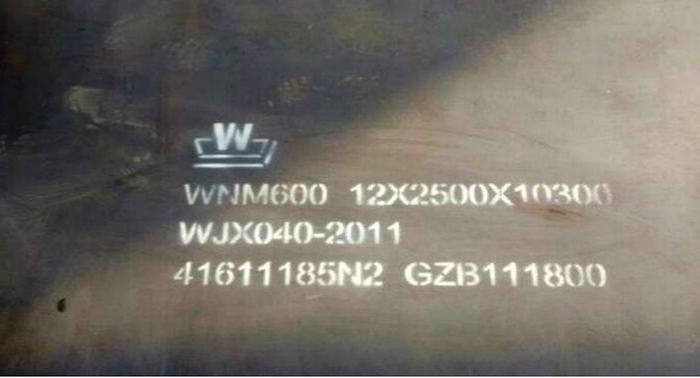

product-530-286

GB Specification Abrasion Resistant Steel Chemical Composition

Grade	Tensile Strength	Elongation	Impact test(-20°)	HBW
NM400	≥1200	≥10	≥24	370-430
NM500	/	/	/	≥470
NM600	/	/	/	≥570

GB Specification Wear Resistant Steel Mechanical Properties

Grade	C	Si	Mn	P	S	Cr	Mo	Ni	Bt
NM400	≤0.30	≤0.70	≤1.60	≤0.025	≤0.010	≤1.00	≤0.50	≤0.70	0.0005-0.006
NM500	≤0.38	≤0.70	≤1.70	≤0.020	≤0.010	≤1.20	≤0.65	≤1.00	0.0005-0.006
NM600	≤0.45	≤0.70	≤1.90	≤0.020	≤0.010	≤1.50	≤0.80	≤1.00	0.0005-0.006

Grade comparison
GB	NM300,NM360,NM400,NM450,NM500
SS	HARDOX400,HARDOX450,HARDOX500,HARDOX600
DIN	XAR400,XAR450,XAR500,XAR600,Dillidur400,Dillidur500
NBN	QUARD400,QUARD450,QUARD500
NF	FORA400,FORA500,Creusabro4800,Creusabro8000
JIS	JFE-EH360, JFE-EH400,JFE-EH500,WEL-HARD400,WEL-HARD500
SFS	RAEX400,RAEX450,RAEX500
