NM450 Abrasion Resistance Plates
effect：Provide protection where wear resistance is required
Chemical composition：C Si Mn P S Mo Cr Ni B
nature：High strength wear-resistant steel plate
NM450 Abrasion Resistance Plates
Main use
1) Construction machinery and equipment: loader bulldozer excavator bucket plate, side blade plate, bucket bottom plate, blade, weighing plate.
2) Loading and unloading machinery and equipment: unloading mill chain plate, hopper liner plate, grab blade plate, medium-sized automatic dump truck dump plate
3) Construction machinery and equipment: cement pusher tooth plate, concrete mixer lining board, mixing floor lining board, dust collector lining board
4) Metallurgical machinery and equipment: iron ore sintering conveyor elbow, iron ore sintering machine liner, scraper liner
5) Mining machinery and equipment: ore, stone crusher lining plate, blade.
6) Other mechanical equipment: sand mill cylinder, blades, various port machinery wear parts
7) Thermal power equipment: mill lining board, coal hopper, coal distribution pipe, coal distributor grid board, unloading equipment lining board
8) Shot blasting machinery: shot blasting machine liner
|
Grade
|
|||||
|
Chemical Composition ( ≤ )
|
NM300
|
NM360
|
NM400
|
NM450
|
NM500
|
|
C
|
0.23
|
0.25
|
0.30
|
0.35
|
0.38
|
|
Si
|
0.70
|
0.70
|
0.70
|
0.70
|
0.70
|
|
Mn
|
1.60
|
1.60
|
1.60
|
1.60
|
1.60
|
|
P
|
0.025
|
0.025
|
0.025
|
0.025
|
0.025
|
|
S
|
0.015
|
0.015
|
0.010
|
0.010
|
0.010
|
|
Cr
|
0.70
|
0.80
|
1.0
|
1.1
|
1.2
|
|
Ni
|
0.50
|
0.50
|
0.70
|
0.80
|
1.00
|
|
Mo
|
0.40
|
0.50
|
0.50
|
0.55
|
0.65
|
|
|
|||||
|
Thickness (mm)
|
≤80
|
≤80
|
≤80
|
≤80
|
≤70
|
|
Tensile strength (MPa)
|
≥1000
|
≥1100
|
≥1200
|
≥1250
|
--
|
|
Elongation A (%)
|
≥14
|
≥12
|
≥10
|
≥7
|
--
|
|
Surface Brinell hardness (HBW)
|
270-330
|
330-390
|
370-430
|
420-480
|
≥470
|
|
Grade Comparison
|
|||||
|
GB
|
NM300,NM360,NM400,NM450,NM500
|
||||
|
SS
|
HARDNESS400, HARDNESS450, HARDNESS500, HARDNESS600
|
||||
|
DIN
|
XAR400, XAR450, XAR500, XAR600, Dillidur400, Dillidur500
|
||||
|
NBN
|
QUARD400, QUARD450, QUARD500
|
||||
|
NF
|
FORA400, FORA500, Creusabro4800, Creusabro8000
|
||||
|
JIS
|
JFE-EH360 , JFE - EH400 , JFE - EH500 , WEL-HARD400 , WELHARD500
|
||||
|
SFS
|
RAEX400, RAEX450, RAEX500
|
||||

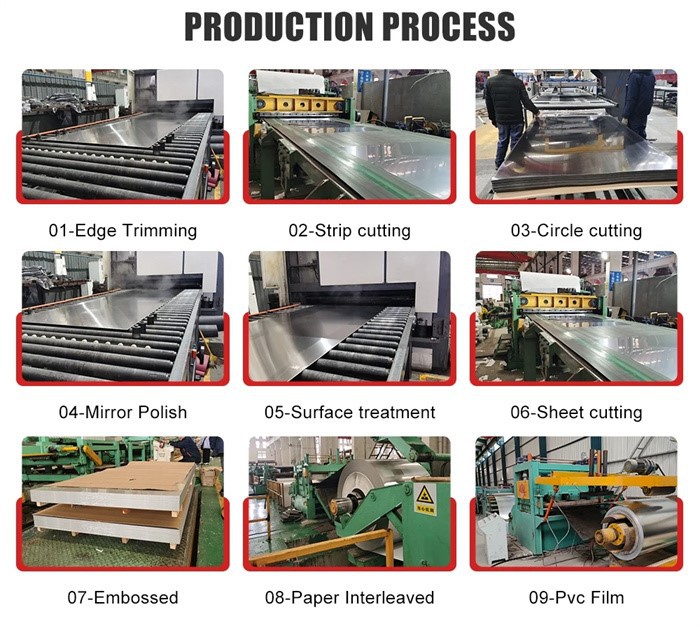

Production Process
Our Services
Product Application
Hot Tags: nm450 abrasion resistance plates, China nm450 abrasion resistance plates manufacturers, suppliers, factory, Wear NM400 Resistant Sheet, NM500 Resistant Steel Wear Plate, NM300 Wear Resistant Steel Sheet, NM650 Wear Resistant Steel Plate, Wear Resistant Steel Plate, Wear Resistant Sheet NM360
