NM550 steel plate also has high wear resistance, high strength and high toughness properties, suitable for
manufacturing mining machinery,
coal mine machinery and equipment,
environmental protection equipment,
sand machinery and so on.

Send Inquiry

Product Introduction

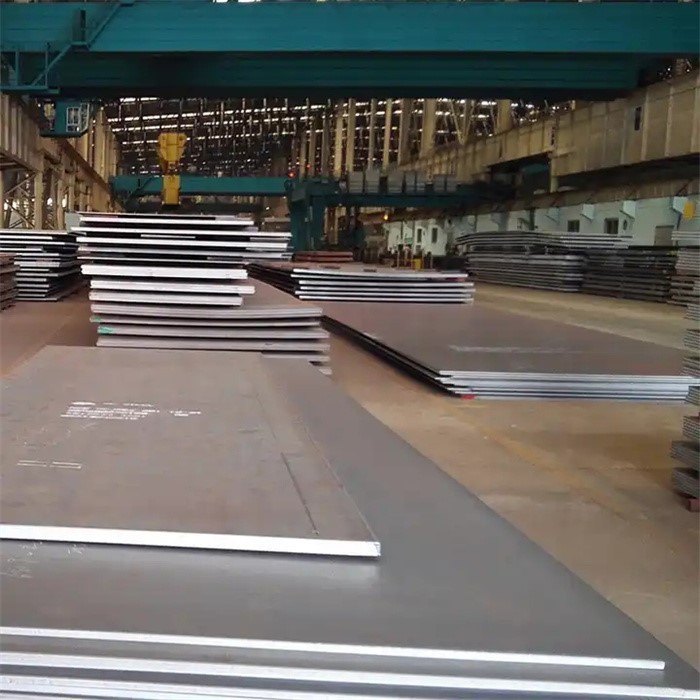

nm550 wear plate

NM550 wear-resistant plate is a high-strength wear-resistant steel plate, which has a high resistance to wear.

The average hardness of NM550 wear-resistant steel delivered from the factory is 550HBW, and its mechanical properties are obtained by quenching.

NM550 has been successfully applied in high wear environment, and it also has excellent machinability, especially welding performance.

Examples of NM550 applications include loaders, excavators, dump trucks, conveyors, trucks, knives and crushers, waste cleaning and recycling equipment, and more

Delivery condition mechanical properties

hardness

30mm thick (including 30mm) steel plate room temperature hardness of 550HBW, 30mm above 550HBW.

Transverse specimen tensile test at room temperature (typical value of 20MM thick steel plate)

Tensile strength: 1400 N/mm2

Yield point: 1200 N/mm2

Elongation: 8%(1o=50mm)

Plate marking

Longitudinal sample V notch impact test (typical value of 20MM thick steel plate) :

Toughness: -20℃, Akv = 24J

Transverse specimen bending test (typical value of 30MM thick steel plate) :

Formability: Bending core diameter >=7.0x sample thickness, bending Angle 180°

Test surface Brinell hardness test once per furnace (40t).

Chemical Content
Steel/Grade	C	Si	Mn	P	S	AL	Cr+Ni+Mo	Nb+V+Ti
NM360/AR360	0.10-0.30	0.20-0.40	1.00-2.00	≤0.015	≤0.003	≥0.20	<0.6	Trace Amount
NM400/AR400	0.10-0.40	0.20-0.40	1.00-2.00	≤0.015	≤0.003	≥0.20	<0.9
NM450/AR450	0.10-0.40	0.20-0.40	1.00-2.00	≤0.015	≤0.003	≥0.20	<1.2
NM500/AR500	0.10-0.40	0.20-0.45	1.00-2.00	≤0.015	≤0.003	≥0.20	<1.5
NM550/AR550	0.10-0.50	0.20-0.45	1.00-1.50	≤0.015	≤0.003	≥0.20	<2.0
NM600/AR600	0.10-0.50	0.20-0.45	1.00-1.50	≤0.015	≤0.003	≥0.20	<2.5
