Wear NM400 Resistant Sheet
high wear resistant steel Sheet NM400
high wear resistant steel
NM400 wear
NM400

Wear NM400 Resistant Sheet

NM400 is a high-strength wear-resistant steel. It has a hardness value of 400 HBW, which means it is resistant to abrasion and wear. NM400-resistant sheet is made from this steel and is designed to provide excellent wear resistance in harsh working conditions.

Send Inquiry

Product Introduction

Wear NM400 Resistant Sheet is used in various industries, including mining, construction, and manufacturing. It is commonly used to build equipment and machinery that must withstand constant wear and tear, such as bulldozers, excavators, and crushers.

The sheet is available in different thicknesses and sizes, making it suitable for various applications. It is also easy to fabricate and weld, making it a versatile material for different manufacturing processes.

NM400-resistant sheet is a reliable and cost-effective solution for applications that require a high level of durability and wear resistance. Its superior performance and durability make it a popular choice for many industries and applications.

product-700-700

Advantage

1. Wear Resistance: NM400 resistant sheet is designed to resist wear and tear caused by friction and impact. This helps to increase the lifespan of the sheet and reduce the need for frequent replacements.

2. Durability: The sheet is made of high-strength steel, which makes it highly durable and able to withstand harsh working conditions. This reduces the risk of sheet failure and improves workplace safety.

3. Cost-effectiveness: The longevity of the NM400 sheet means it provides a cost-effective solution for industrial applications. It eliminates the need for frequent replacements and reduces maintenance costs.

4. Easy to Fabricate: The sheet can be easily cut, drilled, and welded to fit any shape or size required for specific applications. This makes it a flexible and adaptable material for various industries.

5. Corrosion Resistance: The sheet is also resistant to corrosion, making it ideal for harsh environments exposed to moisture, chemicals, and other corrosive substances.

6. Improved Performance: The wear-resistant property of NM400 sheet helps improve the performance of mechanical equipment and machinery, allowing them to operate at optimal efficiency.

7. Increased Productivity: By minimizing downtime for repairs and replacements, the sheet helps improve productivity and reduce operational costs for businesses.

product-700-330

product-700-700

Specification

Product Name	Hot Rolled Wear Resistant Abrasion Resistant Mild Steel Plate Sheet NM400 NM450 NM500
Technique	Hot rolled
Surface Treatment	Clean, blasting and painting according to customer requirement
Thickness tolerance	±0.1mm
Material	NM450L, NM450A, NM600, NM400, NM400L, NM400A, NM500A, NM500, NM360L, NM360, NM550, NM450, NR360, NR400, MITTA 400F, MITTA 450F, MITTA 500F SB-40, SB-45, SB-50, Xar400, Xar450, Xar500, Xar550, Xar600 DILLIDUR400, DILLIDUR500, DILLIDUR400V, DILLIDUR500V, DILLIDUR450V QUARD400, QUARD450, QUARD500, HARD500, SUMIHARD K340, SUMIHARD K340, SUMIHARD K400, SUMIHARD K450, SUMIHARD K500 B-HARD360, B-HARD400, B-HARD400 KN-55, KN-60, KN-63 FORA400, FORA500, CREUSABRO4800, CREUSABRO8000 RAEX400, RAEX450, RAEX500High-Mn wear resistant steel plate ZGMn13-1, ZGMn13-2, ZGMn13-3, ZGMn13-4, ZGMn13-5 ASTM-A(UNS-J91109), ASTM-B-1(UNS-J91119), ASTM-B-2(UNS-J91129), ASTM-B-3(UNS-J91139), ASTM-B-4(UNS-J91149), ASTM-C(UNS-J91309), ASTM-D(UNS-J91459), ASTM-E-1(UNS-J91249), ASTM-E-2(UNS-J91339), ASTM-F SCMnH1, SCMnH2, SCMnH3, SCMnH11, SCMnH21 110Г13П, 110Г13X2BPП, 110Г13ФTП, 130Г14, XMФAП, 120Г10ФП GX120MnMo7-1, GX110MnMo13-1, GX120Mn13, GX120MnCr132, GX120MnNi13-3, GX120Mn17, GX90MnMo14, GX120MnCr17-2
Application	It is widely used in mining machinery, environmental protection machinery, cement machinery, engineering machinery etc due to it is high wear resistance.
Export packing	Waterproof paper, and steel strip packed. Standard Export Seaworthy Package. Suit for all kinds of transport, or as required.

Mechanical property
Grade	Tensile strength	Elongation	Hardness	-20℃ Impact energy
Grade	(Mpa)	(Mpa)	(HBW)	AKv/J (min)
NM360	≥1100	12	330-390	24
NM400	≥1200	10	370-430	24
NM450	≥1250	7	420-480	24

Machining Center

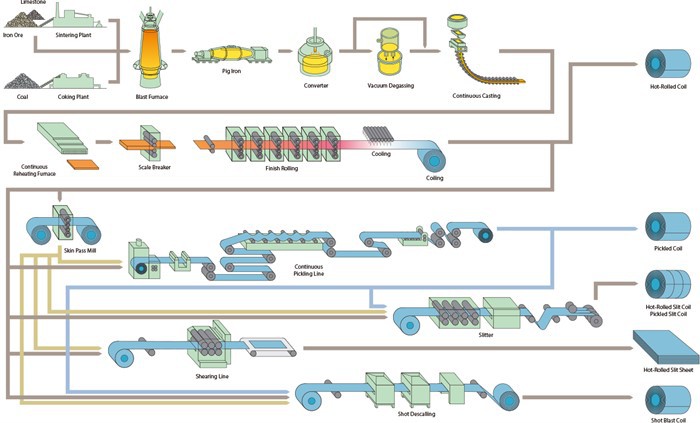

The production process of wear-resistant sheet, specifically NM400, typically involves the following steps:

1. Raw material preparation: The manufacturing process begins with the selection of high-quality steel material, which is then cut into required sizes and shapes.

2. Heating: The steel material is subjected to high temperatures using a thermal treatment process to improve its hardness and toughness.

3. Rolling and forming: The heated steel material is rolled into thin sheets using a rolling machine. These sheets are then formed into the desired shape and size using various techniques.

4. Cutting and shaping: The sheet is cut to size and shape using cutting machines. The edges are then smoothed and polished to remove any roughness.

5. Heat treatment: The wear-resistant sheet is subjected to another round of heat treatment to further improve its strength and durability.

6. Quality testing: The finished product is tested for its physical and mechanical properties to ensure it meets the required standards.

7. Surface treatment: The wear-resistant sheet is coated with anti-corrosion paint or spray to protect it from rust and other forms of damage.
