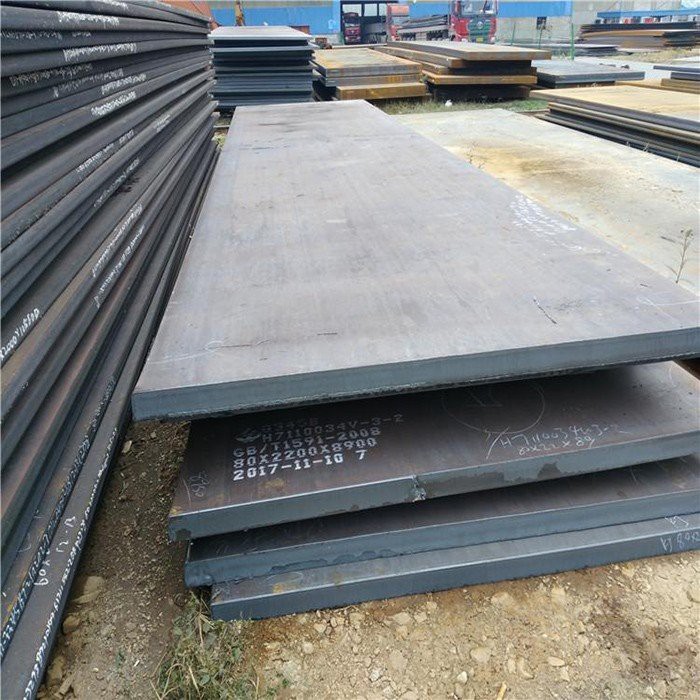

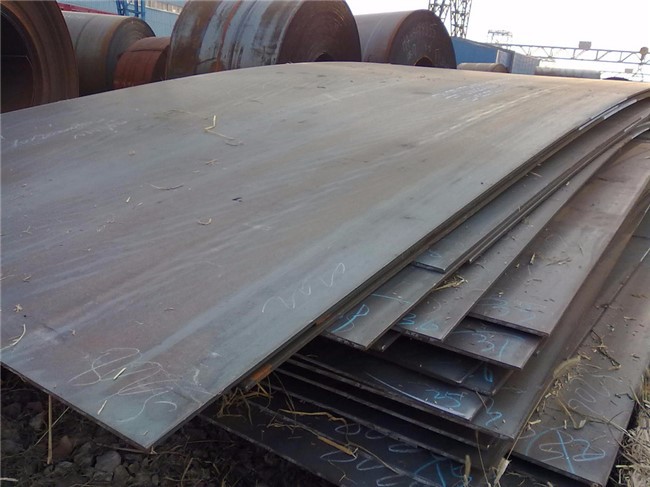

Wear Resistant Sheet NM360
Wear-resistant sheet NM360 is a type of high-strength, wear-resistant steel sheet that is commonly used in industries such as mining, construction, and industrial equipment manufacturing. It has a hardness of between 360 and 430 HBW (Brinell Hardness), making it extremely durable and resistant to wear and tear. Some of the key properties of wear-resistant sheet NM360 include high toughness, excellent weldability, and good formability. Due to its superior wear-resistant properties, wear-resistant sheet NM360 is often used in applications where parts are subject to high levels of abrasion and impact, such as excavator buckets, bulldozer blades, and mining machinery.
Size: 1200mm × 2400mm, 1500mm × 3000mm, 2000mm × 6000mm
Thicknes: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm
1. High hardness: NM360 wear-resistant sheet has a hardness level of 360HBW, which makes it an ideal material for use in environments where there is a high level of wear and tear.
2. Good welding performance: Due to its low carbon content and alloying elements, NM360 wear-resistant sheet can be easily welded without affecting its wear-resistant properties.
3. Excellent toughness: NM360 wear-resistant sheet has a good balance of hardness and toughness, which ensures that it can withstand heavy impact loads without cracking.
4. Corrosion-resistant: This material has a high level of corrosion resistance even in harsh environments such as seawater, acidic liquids, and alkaline solutions.
5. Wide application: NM360 wear-resistant sheet is highly versatile and can be used in a wide range of applications such as mining equipment, construction machinery, cement equipment, metallurgical machinery, and more.
Specification& Grade
|
Grade |
Thickness |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Mo |
|
|
Nm360 |
5-120mm |
≤0.25 |
≤0.70 |
≤1.30 |
≤0.025 |
≤0.010 |
≤1.40 |
≤1.00 |
≤0.50 |
|
|
Nm400 |
5-140mm |
≤0.25 |
≤0.70 |
≤1.60 |
≤0.025 |
≤0.010 |
≤1.40 |
≤1.00 |
≤0.50 |
|
|
Nm450 |
5-120mm |
≤0.32 |
≤0.70 |
≤1.60 |
≤0.025 |
≤0.010 |
≤1.40 |
≤1.00 |
≤0.60 |
|
|
Nm500 |
6-60mm |
≤0.38 |
≤0.70 |
≤1.70 |
≤0.020 |
≤0.010 |
≤1.20 |
≤1.00 |
≤0.65 |
|
|
Nm550 |
5-50mm |
≤0.37 |
≤0.70 |
≤1.60 |
≤0.025 |
≤0.010 |
≤1.50 |
≤1.50 |
≤0.60 |
|
|
Nm600 |
6-(25)mm |
≤0.47 |
≤0.70 |
≤1.40 |
≤0.020 |
≤0.010 |
≤1.20 |
≤2.50 |
≤0.60 |
|
|
25-50mm |
≤0.47 |
≤0.70 |
≤1.40 |
≤0.020 |
≤0.010 |
≤1.20 |
≤2.50 |
≤0.60 |
||
|
item |
value |
|||||||||
|
Standard |
AiSi |
|||||||||
|
Grade |
wear resistant steel |
|||||||||
|
Place of Origin |
China |
|||||||||
|
Brand Name |
YEL |
|||||||||
|
Model Number |
NM400 NM500 NM400 NM500 NM600 |
|||||||||
|
Type |
Steel Plate |
|||||||||
|
Technique |
Cold Rolled / Hot Rolled |
|||||||||
|
Surface Treatment |
Coated, Corrosion-resistant Coating |
|||||||||
|
Application |
ship body decks/equipment and components/tools/machinery |
|||||||||
|
Special Use |
Wear Resistant Steel |
|||||||||
|
Width |
0.6m-3m or as required |
|||||||||
|
Length |
1m-12m or as required |
|||||||||
|
Tolerance |
±1% |
|||||||||
|
Type |
Ship Steel Plate |
|||||||||
|
Processing Service |
Welding, Punching, Cutting, Bending, Decoiling |
|||||||||
|
Delivery Time |
14 Days |
|||||||||
|
Brand |
YEL |
|||||||||
|
Keyword |
Wear Resistant Steel Sheet Plate |
|||||||||
|
Package |
Standard Seaworth Packing |
|||||||||
|
Inventory |
Rich |
|||||||||
Applicable Scenario
1. Mines and quarries: Wear-resistant sheet NM360 can be used in the mining industry to protect equipment that is subjected to constant wear and tear from rocks, minerals, and other abrasive substances.
2. Construction and demolition: Wear-resistant sheet NM360 can be used in the construction and demolition industry to protect equipment such as bulldozers, excavators, and other heavy machinery from wear and damage.
3. Cement plants: Wear-resistant sheet NM360 is commonly used in cement plants to protect valuable equipment like crushers, sifters, and chutes from wear and tear due to abrasive materials like limestone, clay, and cement.
4. Steel and metal manufacturing: In the steel and metal manufacturing industry, wear-resistant sheet NM360 can be used to protect equipment such as blast furnaces, conveyors, and slag pots from abrasion and wear caused by high-temperature metals and slag.
5. Recycling facilities: Recycling facilities can benefit from using wear-resistant sheet NM360 to protect equipment such as shredders, balers, and sorting equipment from wear caused by the materials being handled.

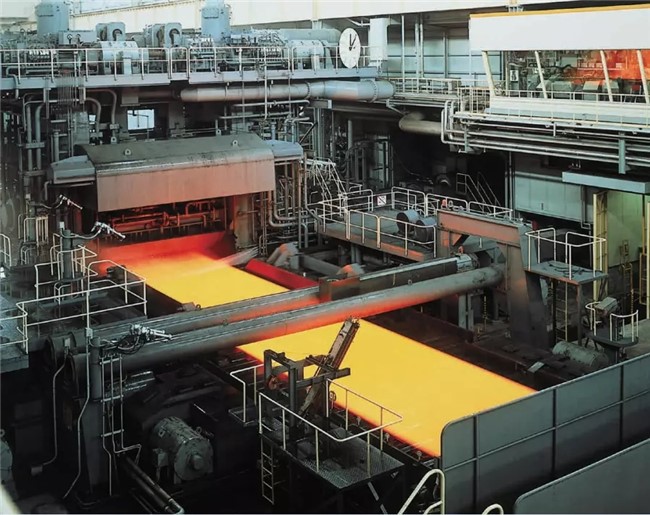

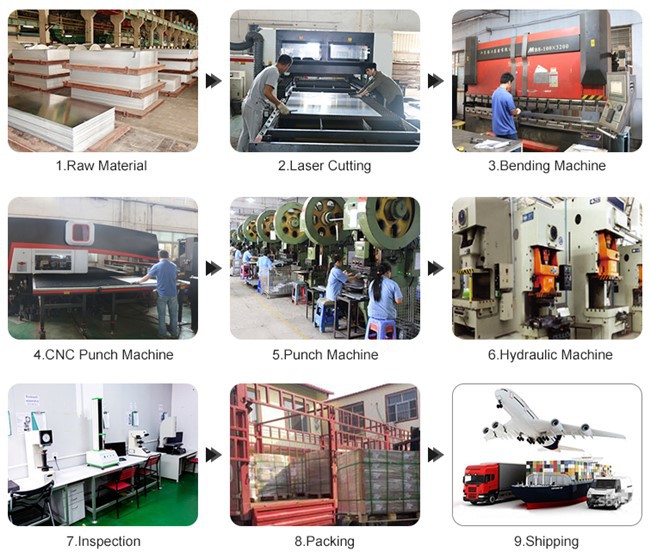

Productive Process
1. Raw material selection: High-quality steel is selected as the primary raw material for the sheet.
2. Cutting and shaping: The steel is shaped to the desired size and shape using cutting and shaping tools.
3. Heat treatment: The sheet is heated to a high temperature and quenched in water to increase its hardness and toughness.
4. Rolling: The sheet is then rolled to its final thickness and dimensions using specialized equipment.
5. Shot blasting: The surface of the sheet is cleaned through shot blasting to remove any surface impurities and improve adhesion.
6. Surface treatment: The sheet is then treated with a special process to improve its wear resistance and prolong its lifespan.
7. Inspection and packaging: The finished sheet is then inspected for quality and packaged for shipment

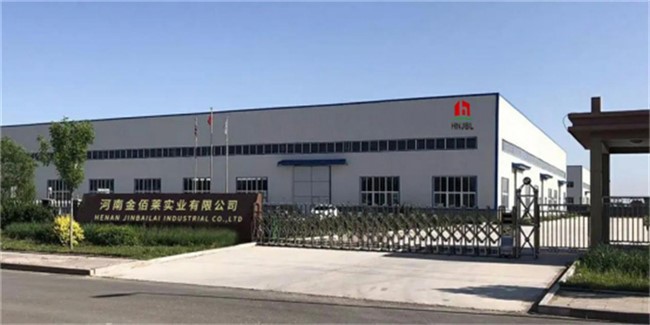

Who We Are
HENAN JINBAILAI INDUSTRIAL CO., LTD. Established in 2008, Our company covers an area of 66.700 square meters, with an annual output of nearly 100, 000 tons. We are a professional and modern manufacturer specializing in producing various kinds of products related to stainless steel. Professional sales of various specifications of Stainless Steel Sheet, Wear Resistant Steel Plate, High Strength Steel Plate, Stainless Steel Pipe, Tool Steel, Saw Blade Steel, Band saw blade steel strip, Chain Steel, Cold Drawn Steel Bar, complete specifications, quality and quantity.
