AISI 1055 round bars are: 1. Good strength and toughness 2. Easily machinable 3. Good weldability 4. Good wear resistance 5. Resistant to corrosion and oxidation

Send Inquiry

Product Introduction

SAE 1055 hot rolled carbon steel require high strength and durability. This grade of carbon steel is commonly produced by hot rolling, which involves heating the steel to a high temperature and then rolling it to the desired thickness and shape. Hot rolling improves the properties of the steel by increasing its strength, toughness, and ductility. SAE 1055 is often used for parts that need to withstand high stress and wear, such as automotive components and industrial machinery.

The product specifications for SAE 1055 hot rolled carbon steel are as follows:

The chemical composition of carbon (C) content is 0.52 0.60%, manganese (Mn) content is 0.60 0.90%, phosphorus (P) content of 0.040% or less, sulphur (S) content of 0.050% or less.
Physical properties: With high strength, high toughness and excellent total expansion and impact toughness and other physical properties, suitable for a wide range of machining applications.
Surface state: smooth and flat surface, no obvious defects and defects.
Size range: Wide range of sizes, can supply a variety of different shapes and sizes of steel to meet a variety of application needs.

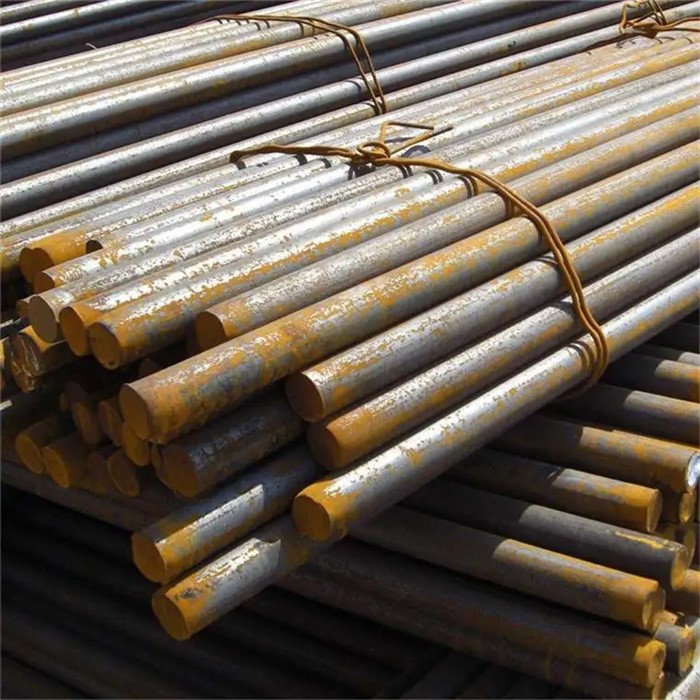

Medium Carbon Steel SAE1055

Chemical Composition:

Iron, Fe	98.41-98.9
Manganese, Mn	0.60-0.90
Carbon, C	0.50-0.60
Sulfur, S	≤ 0.050
Phosphorous, P	≤ 0.040

Physical Properties

Properties	Metric	Imperial
Density	7.85 g/cm³	0.284 lb/in³

Mechanical Properties:

Tensile strength	660 MPa	95700 psi
Tensile strength	560 MPa	81200 psi
Modulus of elasticity	190-210 GPa	29700-30458 ksi
Bulk modulus	140 GPa	20300 ksi
Shear modulus	80 GPa	11600 ksi
Poissons ratio	0.27-0.30	0.27-0.30
Elongation at break (in 50 mm)	10%	10%
Reduction of area	40%	40%
Hardness, Brinell	197	197
Hardness, Knoop (converted from Brinell hardness)	219	219
Hardness, Rockwell B (converted from Brinell hardness)	92	92
Hardness, Rockwell C (converted from Brinell hardness. Value below normal HRC range, for comparison purposes only)	13	13
Hardness, Vickers (converted from Brinell hardness)	207	207
Machinability (based on AISI 1212 steel. as 100 machinability)	55	55
