DIN EN 10025-6 S690QL1 Non- Alloy Structural Steel Plate
DIN EN 10025-6 S690QL1 is a non-alloy structural steel plate that has been designed to provide excellent strength, durability, and resilience to a variety of different industries and applications. This steel plate is known for its high tensile strength, excellent impact resistance, and exceptional weldability, making it ideal for use in heavy-duty construction projects, mining and excavation, and various other applications where strength and durability are essential.
One of the key benefits of DIN EN 10025-6 S690QL1 steel plate is its ability to withstand tough working conditions, including extreme temperatures and high stress environments. The steel is also highly resistant to corrosion, which makes it a great choice for outdoor applications and projects that involve exposure to harsh chemicals and elements.
In addition, DIN EN 10025-6 S690QL1 steel plate has been designed with sustainability in mind, making it an eco-friendly and cost-effective choice for many different industries. The steel is fully recyclable, and it is manufactured using environmentally-friendly processes that reduce waste and emissions.
|
Grade : |
S690QL1 (1.8988) |
|
Specification: |
Thickness 8mm-300mm, Width: 1500-4020mm, Length: 3000-27000mm |
|
Standard: |
EN 10025 - 6 : 2004 Technical delivery conditions for flat products of high yield strength structural steels in the quenched and tempered condition |
|
Approval By Third Party |
ABS, DNV, GL, CCS, LR , RINA, KR, TUV, CE |
|
Classification: |
flat products of high yield strength structural steels in the quenched and tempered condition |
Chemical composition % of grade S690QL1 (1.8988)
|
C |
Si |
Mn |
Ni |
P |
S |
Cr |
Mo |
V |
Nb |
Cu |
Ni |
B |
N |
Zr |
Ti |
|
max 0.22 |
max 0.86 |
1.8 |
Max 0.8 |
max 0.025 |
Max 0.012 |
max 1.6 |
max 0.74 |
max 0.14 |
max 0.07 |
0.55 |
2.1 |
0.006 |
0.016 |
0.17 |
max 0.07 |
Mechanical Propotites:
|
Designation |
Mechanical Properties (ambient temperature) |
|||||||
|
Steel Name |
Steel Number |
Min. Yield Strength Reh MPa |
Tensile Strength Rm MPa |
Min. % elongation after fracture |
||||
|
|
|
Nominal thickness (mm) |
Nominal thickness (mm) |
|
||||
|
|
|
≥3 ≤50 |
≥50 ≤100 |
≥100 ≤150 |
≥3 ≤50 |
≥50 ≤100 |
≥100 ≤150 |
|
|
S690QL1 |
1.8988 |
690 |
650 |
630 |
770/940 |
760/930 |
710/900 |
14 |
Equivalent grades of grade S690QL1 (1.8988)
|
GermanyDIN,WNr |
FranceAFNOR |
EnglandBS |
ItalyUNI |
ChinaGB |
RussiaGOST |
|
EStE 690 V |
|
|
|
|
|
Application
Hot Tags: din en 10025-6 s690ql1 non- alloy structural steel plate, China din en 10025-6 s690ql1 non- alloy structural steel plate manufacturers, suppliers, factory, High Strength Structural Steel Plate, Hot Rolled High Strength Steel Plate, High Strength S690QL1 Steel, S460ML High Strength Steel Plate, Low Alloy High Strength Steel Plate, High Strength Steel Plate
Previous

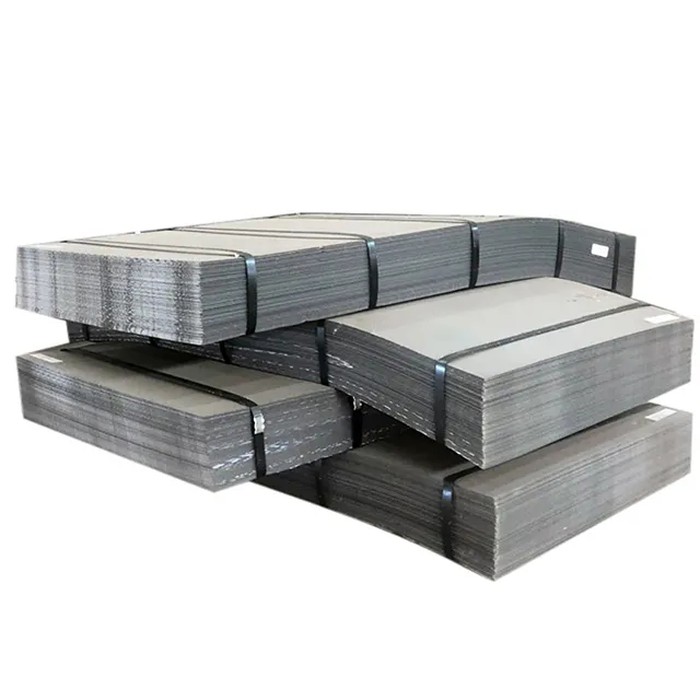

EN 10025-6 S690QL1 Steel PlatesYou Might Also Like
