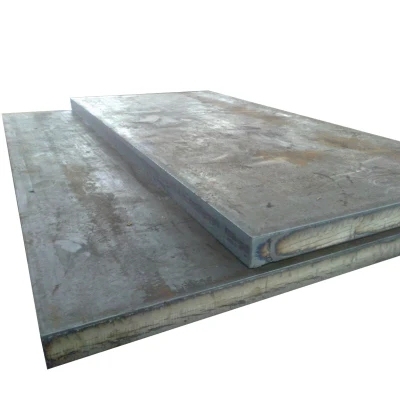

Steel Plate EN10025-6
Steel Plate EN10025-6 is a high-quality steel plate with the following significant advantages:
1. High strength: the tensile strength of the steel plate is higher than that of ordinary steel plate, which can withstand greater load and has stronger wind resistance, earthquake resistance and deformation resistance.
2. Good weldability: The production and processing of the steel plate is very convenient, and it can be welded on site and has a wider range of use.
3. Good corrosion resistance: the steel plate is covered with a special protective layer, which can resist the corrosion of atmosphere, water, soil and other environments, and extend the service life.
4. Accurate size and weight: The steel plate is made of standard, accurate size and consistent weight, which can meet the specific needs of customers and reduce waste.
5. Reliable performance: The steel plate meets international standards and quality requirements, has stable performance and high reliability.
In general, Steel Plate EN10025-6 is a very high-quality product, with a variety of advantages, can be widely used in construction, ships, Bridges, machinery and other fields, to contribute to social and economic development.
Steel Grades: S460Q/1.8908, S460QL/1.8906, S460QL1/1.8916, S500Q/1.8924, S500QL/1.8909, S500QL1/1.8984, S550Q/1.8904, S550QL/1.8926, S550QL1/1.8986, S620Q/1.8914, S620QL/1.8927, S620QL1/1.8987, S690Q/1.8931, S690QL/1.8928, S690QL1/1.8988, S890Q/1.8940 , S890QL/1.8983, S890QL1/1.8925, S960Q/1.8941, S960QL/1.8933, S960QL1/1.8934
EN 10025-6 steel plates are high yield strength alloy special steels, and are supplied in the quenched and tempered condition. The steels are supplied with a minimum nominal thickness of 3 mm and a maximum nominal thickness of 200 mm for grades S460, S500, S550, S620 and S690, a maximum nominal thickness of 125 mm for grades S890 and S960, in steels which, after quenching and tempering, have a specified minimum yield strength of 460 MPa to 960 MPa.
The verification of the impact energy value shall be carried out, unless otherwise agreed upon with longitudinal test pieces for: quality Q at -20℃; quality QL at -40℃; quality QL1 at -60℃.
Product Parameters
|
EN10025-6 Steel Plate Chemical Composition |
||||||||
|
Grade |
Quality |
C |
Mn |
Si |
P |
S |
N |
Other Elements |
|
All grades |
No symbol |
0.22 |
1.80 |
0.86 |
0.030 |
0.017 |
0.016 |
Cr 1.60, B 0.006, Cu 0.55,
Mo 0.74, Nb 0.07, Ni 4.10, Ti 0.07, V 0.14, Zr 0.17 |
|
L |
0.22 |
1.80 |
0.86 |
0.025 |
0.012 |
0.016 |
||
|
L1 |
0.22 |
1.80 |
0.86 |
0.025 |
0.012 |
0.016 |
||
|
EN10025-6 Steel Plate Yield Strength Min. (Mpa) |
||||
|
Thickness (mm) |
3-50mm |
50-100mm |
100-125mm |
125-200mm |
|
S460Q/S460QL/S460QL1 |
460Mpa |
440Mpa |
400Mpa |
400Mpa |
|
S500Q/S500QL/S500QL1 |
500Mpa |
480Mpa |
440Mpa |
440Mpa |
|
S550Q/S550QL/S550QL1 |
550Mpa |
530Mpa |
490Mpa |
490Mpa |
|
S620Q/S620QL/S620QL1 |
620Mpa |
580Mpa |
560Mpa |
560Mpa |
|
S690Q/S690QL/S690QL1 |
690Mpa |
650Mpa |
630Mpa |
630Mpa |
|
S890Q/S890QL/S890QL1 |
890Mpa |
830Mpa |
830Mpa |
|
|
S960Q/S960QL/S960QL1 |
960Mpa |
850Mpa |
850Mpa |
|
|
EN10025-6 Steel Plate Tensile Strength and Elongation |
|||||
|
EN 10025-6 |
Tensile |
Tensile |
Tensile |
Tensile |
Elongation |
|
Grade |
Mpa |
Mpa |
Mpa |
Mpa |
After fracture |
|
Thickness (mm) |
3-50mm |
50-100 |
100-125 |
125-200 |
|
|
S460Q/S460QL/S460QL1 |
550-720 |
550-720 |
500-670 |
500-670 |
≥17% |
|
S500Q/S500QL/S500QL1 |
590-770 |
590-770 |
540-720 |
540-720 |
≥17% |
|
S550Q/S550QL/S550QL1 |
640-820 |
640-820 |
590-770 |
590-770 |
≥16% |
|
S620Q/S620QL/S620QL1 |
700-890 |
700-890 |
650-830 |
650-830 |
≥15% |
|
S690Q/S690QL/S690QL1 |
770-940 |
760-930 |
710-900 |
710-900 |
≥14% |
|
S890Q/S890QL/S890QL1 |
940-1100 |
880-1100 |
880-1100 |
≥11% |
|
|
S960Q/S960QL/S960QL1 |
980-1150 |
900-1100 |
900-1100 |
≥10% |
|
|
Standard |
Carbon Steel, HSLA High Strength Low Alloy Steel Grades |
|||
|
ASME SA36/ASTM A36 |
A36 |
|||
|
ASME SA283/ASTM A283 |
A283 Grade C |
A283 Grade D |
||
|
ASME SA572/ASTM A572 |
A572 Grade 42 |
A572 Grade 50 |
A572 Grade 55 |
A572 Grade 60 |
|
A572 Grade 65 |
||||
|
ASME SA573/ASTM A573 |
A573 Grade 58 |
A573 Grade 65 |
A573 Grade 70 |
|
|
ASME SA633/ASTM A633 |
A633 Grade A |
A633 Grade C |
A633 Grade D |
A633 Grade E |
|
ASME SA656/ASTM A656 |
A656 Grade 50 |
A656 Grade 60 |
A656 Grade 70 |
A656 Grade 80 |
|
A656 Grade 100 |
||||
|
EN10025-2 |
S235JR |
S235J0 |
S235J2 |
S275JR |
|
S275J0 |
S275J2 |
S355JR |
S355J0 |
|
|
S355J2 |
S355K2 |
S450J0 |
||
|
EN10025-3 |
S275N |
S275NL |
S355N |
S355NL |
|
S420N |
S420NL |
S460N |
S460NL |
|
|
EN10025-4 |
S275M |
S275ML |
S355M |
S420ML |
|
S355ML |
S460M |
S420M |
S460ML |
|
|
EN10025-6 |
S460Q |
S460QL |
S460QL1 |
S500Q |
|
S500QL |
S500QL1 |
S550Q |
S550QL |
|
|
S550QL1 |
S620Q |
S620QL |
S620QL1 |
|
|
S690Q |
S690QL |
S890Q |
S690QL1 |
|
|
S890QL |
S890QL1 |
S960Q |
S960QL |
|
|
JIS G3101 |
SS330 |
SS400 |
SS490 |
SS540 |
|
JIS G3106 |
SM400A |
SM400B |
SM400C |
SM490A |
|
SM490B |
SM490C |
SM490YA |
SM490YB |
|
|
SM520B |
SM520C |
SM570 |
||
|
JIS G4051 |
S20C |
S25C |
S30C |
S35C |
|
S40C |
S45C |
S50C |
S55C |
|
|
S60C |
S65C |
S70C |
S75C |
|
|
DIN 17100 |
St37-2 |
USt37-2 |
RSt37-2 |
St37-3 |
|
St52-3 |
||||
|
DIN 17102 |
StE255 |
WStE255 |
TStE255 |
EStE255 |
|
StE285 |
WStE285 |
TStE285 |
EStE285 |
|
|
StE315 |
WStE315 |
TStE315 |
EStE315 |
|
|
StE355 |
WStE355 |
TStE355 |
EStE355 |
|
|
StE380 |
WStE380 |
TStE380 |
EStE380 |
|
|
StE420 |
WStE420 |
TStE420 |
EStE420 |
|
|
StE460 |
WStE460 |
TStE460 |
EStE460 |
|
|
StE500 |
WStE500 |
TStE500 |
EStE500 |
|
|
GB/T700 |
Q195 |
Q235A |
Q235B |
Q235C |
|
Q235D |
Q275 |
|||
|
GB/T1591 |
Q355B |
Q355C |
Q355D |
Q390B |
|
Q390C |
Q420B |
Q420C |
Q460C |
|
|
Q390N |
Q420N |
Q460N |
Q390M |
|
|
Q420M |
Q460M |
Q550M |
Q620M |
|
|
Q690M |
||||
|
GB/T16270 |
Q460C |
Q460D |
Q460E |
Q460F |
|
Q500C |
Q500D |
Q500E |
Q500F |
|
|
Q550C |
Q550D |
Q550E |
Q550F |
|
|
Q620C |
Q620D |
Q620E |
Q620F |
|
|
Q690C |
Q690D |
Q690E |
Q690F |
|
|
Q800C |
Q800D |
Q800E |
Q800F |
|
|
Q890C |
Q890D |
Q890E |
Q890F |
|
|
Q960C |
Q960D |
Q960E |
Q960F |
|
