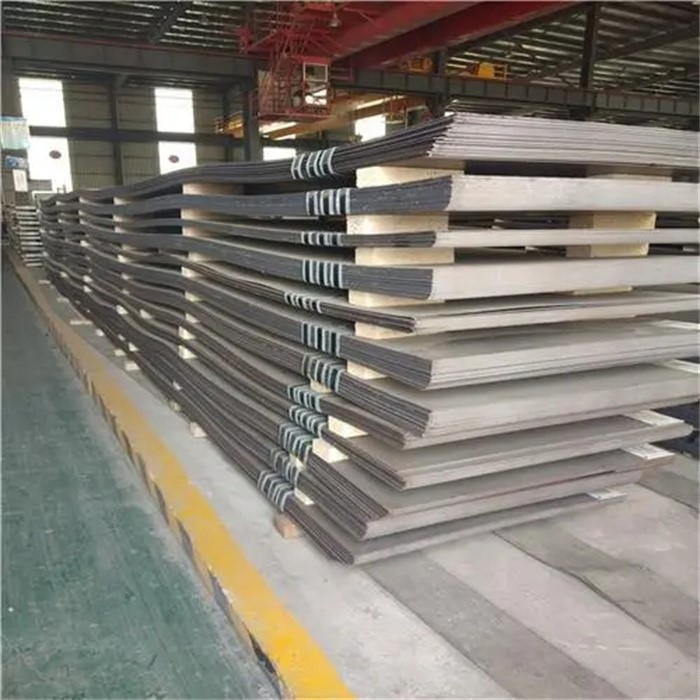

EN10025-4 S460ML High Yield Structural Steel Plates
EN10025-4 S460ML high yield structural steel plates are a reliable choice for many construction projects. With their high yield strength, these plates are able to withstand heavy loads and provide excellent durability. Their versatility makes them an ideal choice for use in a variety of applications, including bridges, buildings, and other structural projects.
One of the key benefits of these high yield structural steel plates is their ability to resist corrosion. This helps to ensure that they will maintain their strength and stability for many years, even in harsh environments. Additionally, they are easy to weld and fabricate, which means that they can be customized to meet the specific needs of a project.
Another advantage of EN10025-4 S460ML high yield structural steel plates is their cost-effectiveness. Despite their high strength and durability, these plates are still an affordable choice for many construction projects. This can help to keep project costs down without sacrificing quality or performance.
Mechanical Properties
| THICKNESS (mm) |
YIELD STRENGTH REH (MIN MPa) |
TENSILE STRENGTH RM (MPa) |
ELONGATION A5 (MIN %) |
|---|---|---|---|
| 8.00 - 16.00 | 460 | 540 - 720 | 17 |
| 16.01 - 40.00 | 440 | 540 - 720 | 17 |
| 40.01 - 63.00 | 430 | 530 - 710 | 17 |
Impact Properties
| MIN. IMPACT ENERGY FOR LONGITUDINAL TESTING, CHARPY V 10X10 MM TEST SPECIMENS |
|---|
| 40 J / -60 °C 1) |
Chemical Composition (heat analysis)
Hide/Show specific columns EDIT
| C (MAX %) |
SI (MAX %) |
MN (MAX %) |
P (MAX %) |
S (MAX %) |
AL (MIN %) |
NB (MAX %) |
V (MAX %) |
TI (MAX %) |
|---|---|---|---|---|---|---|---|---|
| 0.14 | 0.50 | 1.70 | 0.020 | 0.015 | 0.02 | 0.05 | 0.10 |
Carbon Equivalent
| THICKNESS (mm) | 8.00 - 63.00 |
|---|---|
| CET (max %) | 0.31 |
| CEV (max %) | 0.43 |
