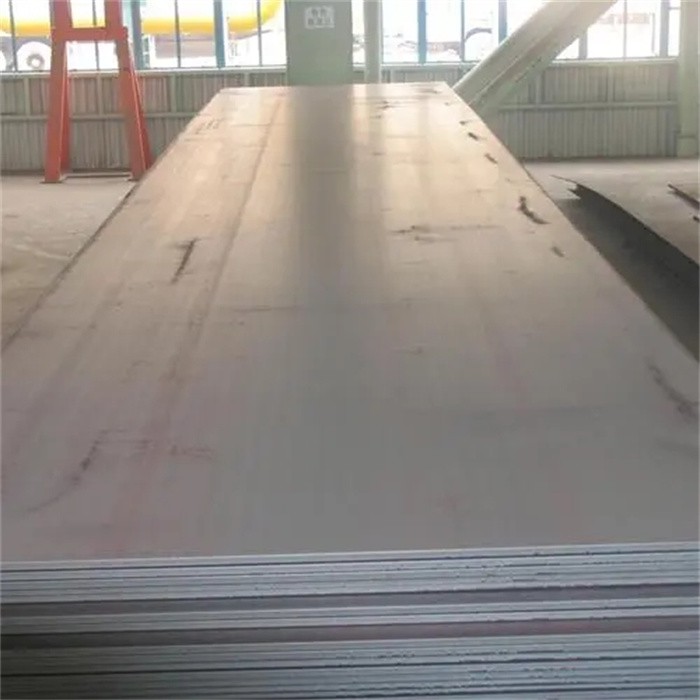

High Tensile Strength Steel Plate
High tensile strength steel plate is an exceptional material that has revolutionized the manufacturing industry. It is a remarkable solution to the challenge of designing and constructing structures that require more strength but with less weight. This type of steel plate possesses superior characteristics that enable it to withstand high pressure, tension, and stress.
The use of high tensile strength steel plate has numerous benefits. Firstly, it offers excellent durability and long-lasting performance, making it perfect for use in building construction, automotive manufacturing, and aerospace engineering. Secondly, it is highly resistant to corrosion, weathering, and other forms of environmental degradation, ensuring that the structure it supports remains stable and safe over a long period.
The lightweight property of high tensile strength steel plates is a major advantage. It makes it possible to design structures that are slimmer and more aesthetically pleasing without compromising their strength or stability. Additionally, the plates can be easily fabricated and welded, reducing the amount of labor and resources required during the construction process.
Furthermore, high tensile strength steel plates exhibit exceptional mechanical properties, such as exceptional hardness, toughness, and ductility. This makes them ideal for use in applications that require high strength and resistance to wear and tear. They are also dynamic and highly adaptable, allowing manufacturers to create custom shapes and designs to fit specific needs.
EN10025-4 S460ML high yield structural steel plates chemical composition and mechanical property:
|
Grade |
|
Chemical composition % Max |
||||||||||||
|
|
C |
Si |
Mn |
P |
S |
Nb |
V |
Al |
Ti |
Cr |
Ni |
Mo |
N |
|
|
S460ML |
|
0.18 |
0.65 |
1.8 |
0.03 |
0.025 |
0.06 |
0.14 |
0.015 |
0.06 |
0.35 |
0.85 |
0.23 |
0.027 |
|
|
Mechanical properties Min |
|||||||||||||
|
|
Yield strength (Mpa) |
Tensile strength (Mpa) |
Elongation |
|||||||||||
|
TH(MM) |
≤16 |
>16≤40 |
>40≤63 |
>63 ≤80 |
>80≤100 |
>100≤150 |
≤40 |
>40≤63 |
>63 ≤80 |
>80≤100 |
>100≤120 |
|
||
|
|
460 |
440 |
430 |
410 |
400 |
385 |
540-720 |
530-710 |
510-690 |
500-680 |
490-660 |
17 |
||
Mechnical property for S460ML STEEL PLATE:
| Thickness (mm) | ||||||
| S460ML | ≤ 16 | > 16 ≤ 40 | > 40 ≤ 63 | > 63 ≤ 80 | > 80 ≤ 100 | > 100 |
| Yield strength (≥Mpa) | 460 | 440 | 430 | 410 | 400 | 385 |
| ≤ 40 | > 40 ≤ 63 | > 63 ≤ 80 | > 80 ≤ 100 | > 100 | ||
| Tensile strength (Mpa) | 540-720 | 530-710 | 510-690 | 500-680 | 490-660 | |
EN10113 S 460 ML steel Mechnical Properties
| Temperature | -50 | -40 | -30 | -20 | -10 | 0 | 20 |
| Notch impact test. Min. absorbed energy | 27 | 31 | 40 | 47 | 51 | 55 | 63 |
| Nominal thickness(mm) | to 16 | 16-40 | 40-63 | 63-80 | 80-100 | 100-120 |
| ReH-Minimun yield strength(Mpa) | 460 | 440 | 430 | 410 | 400 | 385 |
| Nominal thickness(mm) | to 40 | 40-63 | 63-80 | 80-100 | 100-120 |
| Rm-Tensile strength(Mpa) | 540-720 | 530-710 | 510-690 | 500-680 | 490-660 |
| Nominal thickness(mm) | - | ||||
| A-Minimum elongation Lo=5,65√So(%) |
17 | ||||
