S460Q Steel Plates
S460Q steel plates are high-strength structural steel plates that are used in various applications such as construction machinery, mining machinery, and engineering machinery. These plates have a minimum yield strength of 460 MPa, which makes them suitable for heavy-duty applications.
S460Q steel plates are made from quenched and tempered fine-grained steel, which provides excellent weldability and formability. This steel grade is thermomechanically rolled and is suitable for welding, bending, and forming operations.

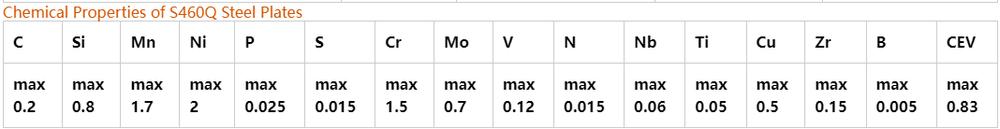

The chemical composition of S460Q steel plates includes elements such as carbon, manganese, silicon, phosphorus, sulfur, chromium, nickel, molybdenum, and vanadium. These elements contribute to the overall strength and toughness of the steel.
S460Q steel plates are available in various thicknesses and widths to meet the specific requirements of different applications. They are typically supplied in a normalized or quenched and tempered condition.
S460Q Steel Plates Specifications:
| Standard | ASTM A514/A514M-13 |
| Grade | 130 KSI ,140 KSI,A514 ,A710 ,TMCP 100 KSI ,RQT 701 ,S460QL1 ,S460QL ,S460Q ,S890QL1 ,S890QL ,S890Q ,S460QL ,Weldox 700,WELTEN 780E |
| Size | Thickness:12-60mm Width: 1500-3500mm Length: 3000-18000mm |
| Delivery State | Quenched and Tempered |
| Packing | Standard seaworthy package |
| Export To: | Saudi arabia, Kuwait, Qatar, Oman, Yemen, UAE, Iran, Turkey, Kazakhstan, Greece, Singapore, Thailand, Indonesia, Vietnam, South Africa,South America,Brazil, India, Australia, Egypt. |
Equivalent Grade of S460Q Steel Plates
| EU EN |
USA – |
Germany DIN,WNr |
France AFNOR |
Sweden SS |
||||
| EN10137-2 S460Q |
|
|
|
|
Mechanical Properties of S460Q Plates
| Nominal thickness (mm): | 3 – 50 | 50 – 100 | 100 – 150 |
| Rm – Tensile strength (MPa) | 770-940 | 760-930 | 710-900 |
| Nominal thickness (mm): | 3 – 50 | 50 – 100 | 100 – 150 |
| ReH – Minimum yield strength (MPa) | 690 | 650 | 630 |
| KV – Impact energy (J) longitud., | 0°40 | -20°30 |
| A – Min. elongation Lo = 5,65 √ So (%) | 14 |
